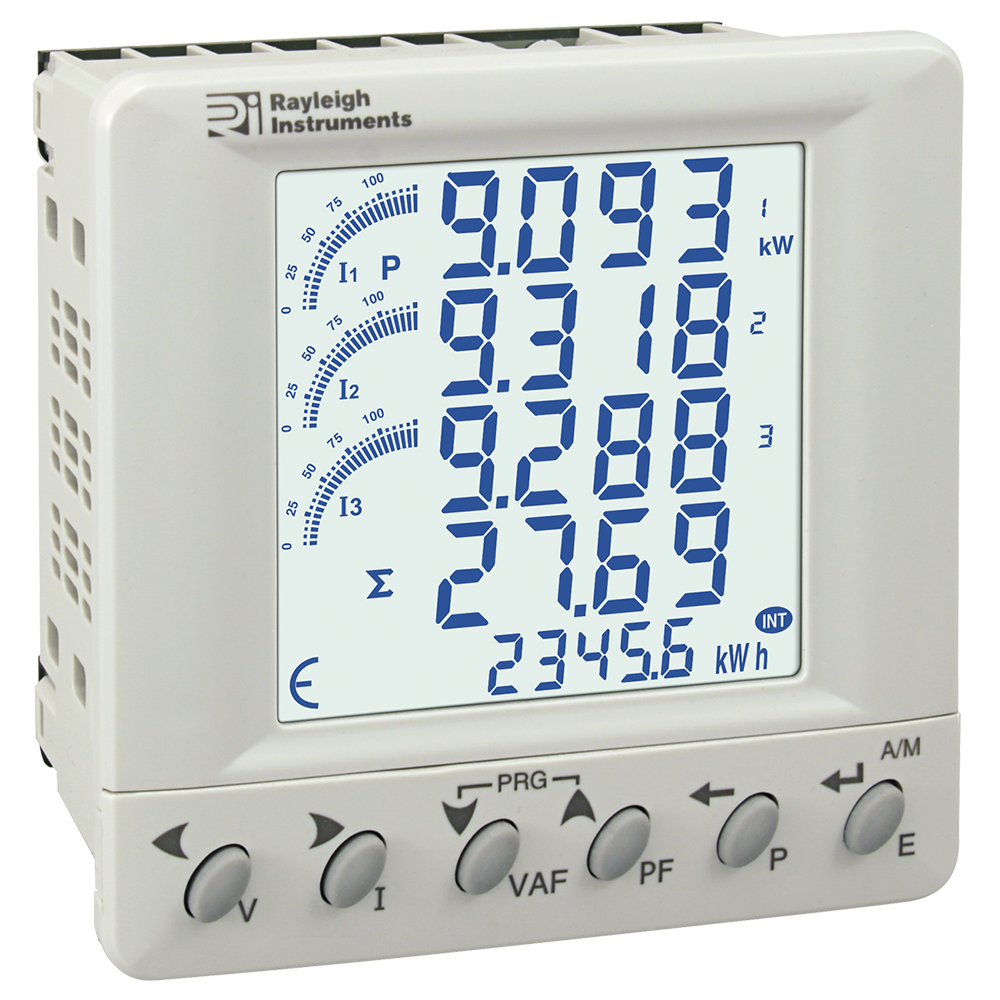

Rayleigh Instruments RI-F384 Single & Three Phase Network Multifunction Meter Analyser

Features

This product is no longer available - see bottom of page for new product

  • Single Phase Network or 3 phase 3 or 4 wire Network unbalanced load operation
  • 5A / 1A Current Transformer Input
  • Integrated Communication Protocols are Pulsed output and RS485 Modbus RTU
  • Panel Mounted (96x96mm)

Details

This product is no longer available - see bottom of page for new product

The RI-F384 is a panel mounted Multifunction meter (96x96mm) showing measuring parameters that are required for successfully carrying out energy efficiency projects and monitoring the electrical distribution in low and medium voltage networks. (1 and 3-phase systems with a neutral conductor). Ideal for both energy managers and electrical engineers.

Easy To Use
Thanks to its large backlit LCD display the RI-F384 provides clear readings and easy access via the push buttons, and has a bar-graph current indication on every page.

They directly display a number of multi-measurement and metering values such as :
+/- kWh (kilowatt) , +/- kvarh, kVah, I (Current), U (Potential Energy), V (Voltage), F (Frequency), P (Active Power), Q (Reactive Power), S (Apparent Power), PF (Power Factor), THD (Total Harmonic Distortion) to the 31st Harmonic.

Communications
The RI-F384 standard communication options are : Pulse Outputs and RS485 Modbus RTU.

Pulse inputs can be used to record the values for meters such as water, gas and and of course energy meters using measuring devices. Using pulse outputs as a measured value transducer, the working pulses can be transferred to a control system such as BCS, PLC, SCADA systems.

Having a RS485 interface with a Modbus RTU protocol enables extremely cost-efficient networking. It features simple topology configuration and a lack of sensitivity to EMC interference. Communication between the sender and the recipient takes place on a wired basis via a sheathed, twisted pair cable. The Modbus communication can be transferred to any control system such as BMS, SCADA. PLC systems using the Modbus registers.

Class Accuracy
RI-F384 Class Accuracy table

Technical Specifications
  • WIRING INPUT 3.Ø - 4 wire, 3.Ø - 3 wire, 2.Ø - 3 wire, 1.Ø - 2 wire
  • RATED INPUT VOLTAGE 11 to 300Vac (L-N); 19 to 519Vac (L-L)
  • FREQUENCY RANGE 45-65Hz
  • CT PRIMARY : 1A…10000A (Programmable for any value)
  • CT SECONDARY : Nominal 5A (min 11mA, Max. 6A)
  • PT PRIMARY : 100…500KVac (Programmable for any value)
  • PT SECONDARY : 100…500Vac (Programmable for any value)
  • DISPLAY UPDATE TIME : 1 Second for parameters
  • DISPLAY SCROLLING : Automatic / Manual
  • POWER CONSUMPTION : <8VA
  • TEMPERATURE : Operating : -10…55°C / Storage : -20…75°C
  • HUMIDITY : 85% non-condensing
  • MOUNTING : Panel mounting
  • WEIGHT : 318g
  • Pulsed Output : Voltage range External 24VDC Max.
  • Current capacity : 100mA
  • INSULATION CATEGORY : Category III

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
RI-F384-G - Single / Three Phase Multifunction Panel Meter (Grey) - Pulse, RS485/Modbus Call for Prices
