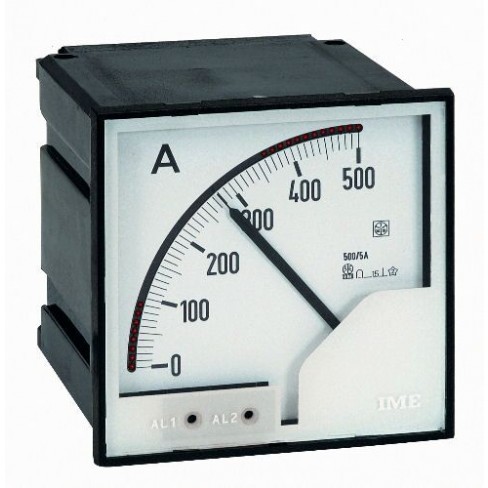

IME ANT1 AL96AC Analog Meters With Alarms for Alternating Current 96x96mm

Features

  • Alternating current average value measurement with display related to rms value
  • Input from CT/1A or /5A
  • Indication of primary current of external CT
  • 2 programmables alarms
  • Alarms type: MIN+MAX or MIN1+MIN2 or MAX1+MAX2

Details

Alternating current average value measurement with display related to rms value Input from CT/1A or /5A Indication of primary current of external CT 2 programmables alarms Alarms type: MIN+MAX or MIN1+MIN2 or MAX1+MAX2 Scale lenght 90° Accuracy cl.1,5 DISPLAY Scale colour: white background, black divisions and numbering Customized scales upon request Option: reference red mark Scale length: 90° Standard scale marking: 0...In Pointer colour: black INPUT Quantity: single-phase, alternating current Connection: by external CT /5A or /1A Measure: average value measurement with display related to rms value Rating current In: 5A or 1A Continuous overload: 1,2In Instantaneous overload: 5In/5s Input signal waveform: simmetric wave Type: sinusoidal, form factor 1,11 Rating frequency fn: 50Hz Working frequency: 47...63Hz Rated burden: ≤ 0,25VA (In=1A) - ≤ 0,5VA (In=5A) ALARMS Programmables alarms: 2 Type: MIN+MAX or MIN1+MIN2 or MAX1+MAX2 (see ordering code) Set point setting: by the 2 front keys Setting indication: 41 LED’s bargraph Alarm indication: bargraph blanking segment Accuracy: ± 2,5% In Histeresis: 5% set point value Intervention delay: singly selectable for each alarm Delay selection: by dip switch removing the front frame Selectable time: 1-3-6-15 seconds Reset time: ≤ 600ms OUTPUT 2 relays with SPDT contacts, potential free Contacts range: 230V 4A cosφ 0,4 – 24V 4Adc Negative security execution (normally de-energised relay) ORDERING INFORMATION
Product Name / Options Price (ex VAT)
Please call our sales office on 01245 428500 or email sales@rayleigh.com to enquire about this product Call for Prices
