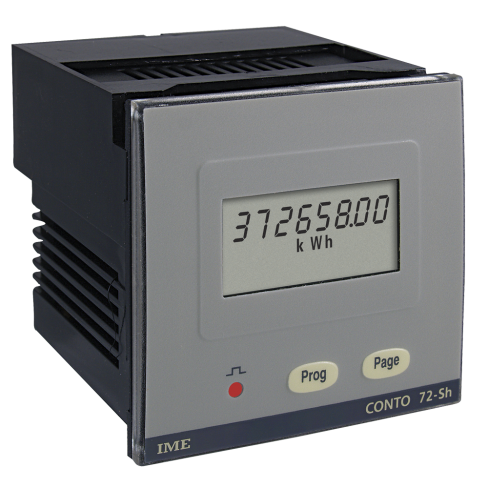

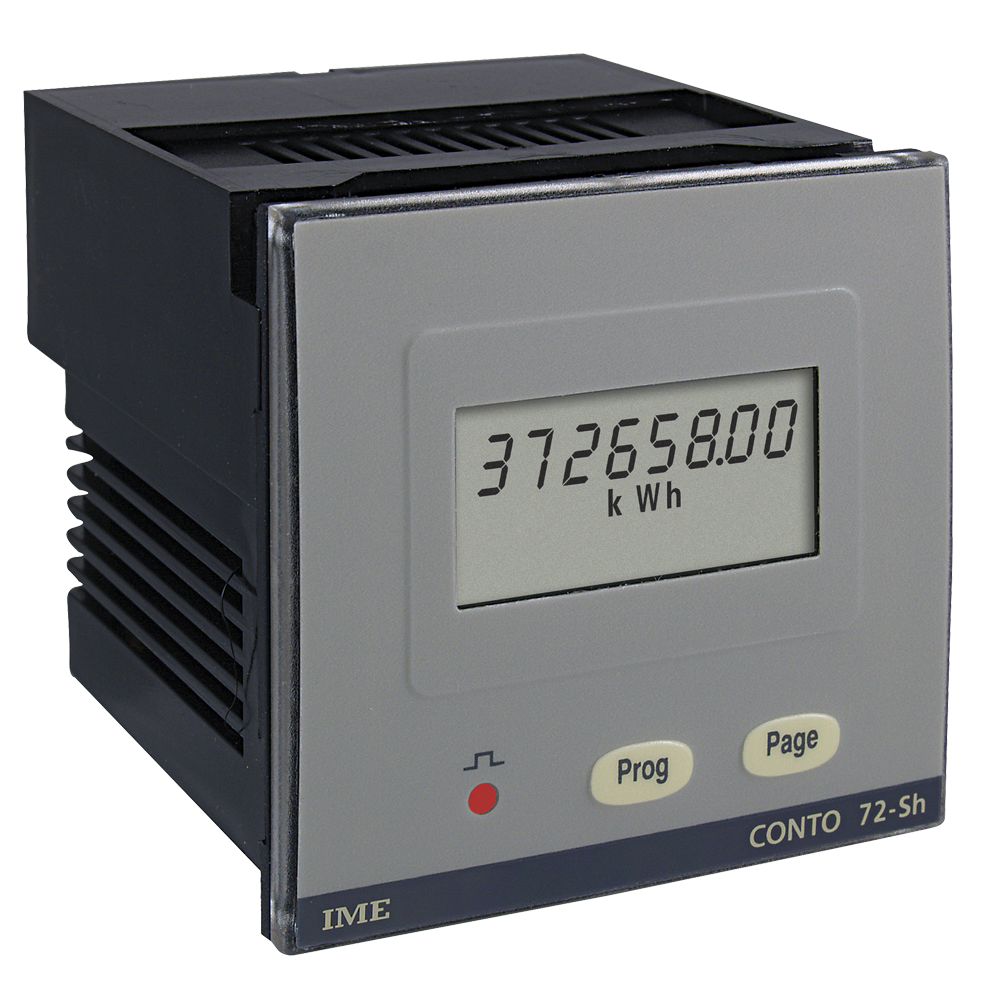

IME Conto 72-Sh Single and Three Phase Network Panel Mounted MultiFunction Network Meter - CT Operated

Features

  • Kilowatt hour meter / active energy meter
  • 72 x 72mm flush panel mounting
  • Single phase & 3 phase (3 or 4 wire) network unbalanced load
  • Active energy class 1 (EN62053-21)
  • Reactive energy class 2 (EN62053-23)
  • Power demand
  • Power max demand (resettable)
  • Partial active and reactive energy (resettable)
  • Phase Current
  • Phase to phase and phase to neutral voltage
  • Frequency
  • Phase active power
  • Phase reactive power
  • 3 phase active/reactive and apparent power
  • Power factor
  • –/1A or –/5A current transformer operated
  • 190…440V 50/60Hz measured voltage
  • 8 digit LCD display
  • Self supplied auxiliary
  • Pulsed output
  • Programmable CT ratios

Details

Single and three-phase network
Direct connection:
three-phase 230(400)-240(415)V
single-phase 230-240V
Connection with external dedicated CT
Connection with CT/1A and /5A

DISPLAY
  • Display type: LCD, 8 digit
  • Digit height: 6mm
  • Measurement display: subdivided on menus and pages
  • Total active energy
  • Total reactive energy
  • Partial active energy
  • Partial reactive energy
  • Active power Max. demand
  • Active power demand
  • Voltages, currents and powers
  • Phase currents
  • Linked voltages
  • Active, reactive and apparent power
  • Frequency
  • Power factor
  • Page scrolling: manual, by front push-button
  • Page scrolling and parameter reset (partial active and reactive energy, average power highest value) possible with sealed kWh meter

Downloads

Files

Conto 72-Sh Instruction Manual Conto 72-Sh Instruction Manual - 10781840 04-09
Conto 72-Sh Data sheet Conto 72-Sh Data sheet - NT709-V04
Product Name / Options Price (ex VAT)
CE72S14A2/770 (1/5A self supplied Pulse & Modbus) Call for Prices
