  • IME Conto D4-Pt Single-Phase & Three-Phase 3-4 Network kWh Meter - Connection by CT/1A and /5A

More Views

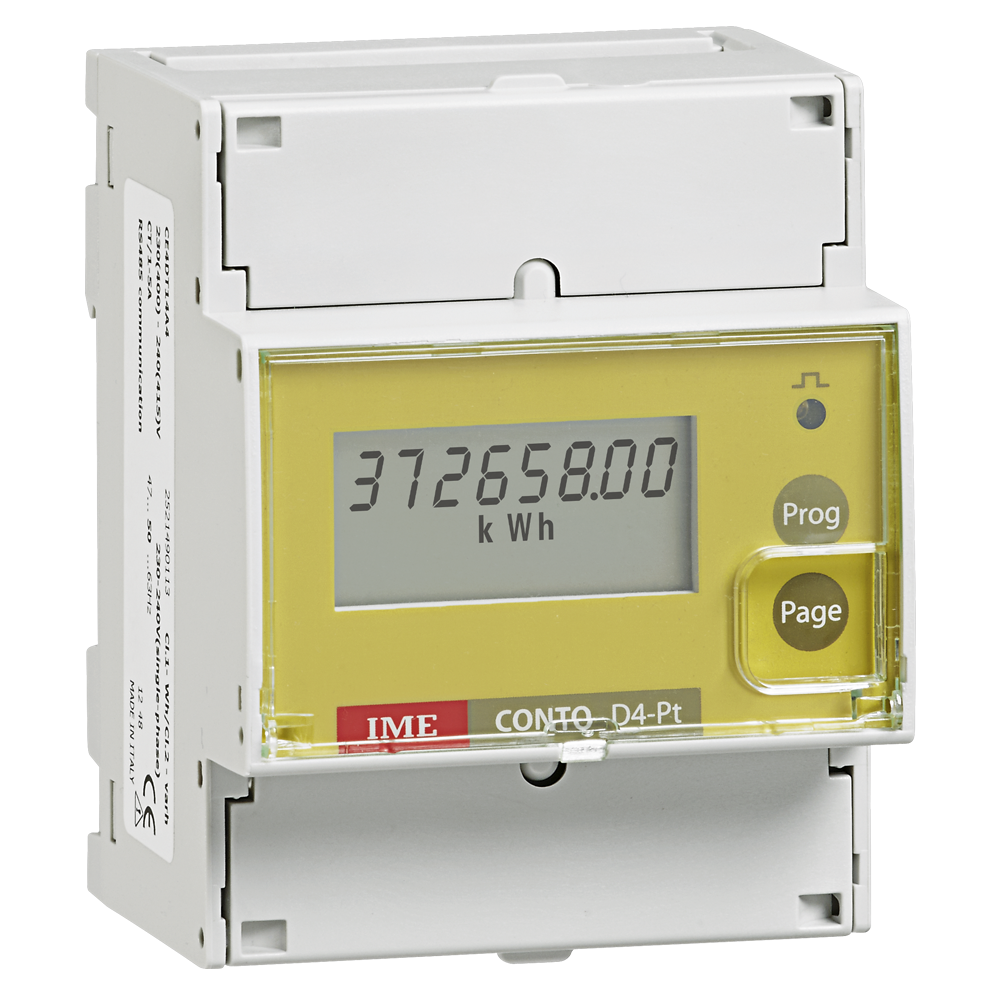

IME Conto D4-Pt Single-Phase & Three-Phase 3-4 Network kWh Meter - Connection by CT/1A and /5A

Features

  • Kilowatt hour meter / active energy meter
  • 4 module DIN rail mounting
  • 3 phase (3 or 4 wire) network unbalanced load
  • Active energy class 1
  • Reactive energy class 2
  • Power demand
  • Power max demand
  • Phase and neutral current
  • Phase to phase and phase to neutral voltage
  • Frequency
  • Phase active power
  • Phase reactive power
  • 3 phase active/reactive and apparent power
  • Power factor
  • Hours run
  • -/5A current transformer operated
  • 230V/400V 50Hz measured voltage
  • 8 digit LCD display
  • Pulsed output and RS485 communications
  • Programmable CT ratio
  • Auxiliary supply 230V 50/60Hz

Details

The Conto D4-Pt is a 70mm DIN Rail mounted kWh meter with options for a a pulse output or Modbus RS485 communications as protocols.

Single-phase, three-phase 3 or 4-wire network

Direct connection:
three-phase 400-415V
single-phase 230-240V
or
Direct connection:
single and three-phase 100-115V

Connection by VT/100 and /110V
Isolated current input

Connection by CT/1A and /5A (same reference)
Programmable external
VT and CT ratio

Additional Information

Manufacturer IME (BTicino)

Downloads

Files

Conto D4-Pt Instruction Manual Conto D4-Pt Instruction Manual - 10781555W
Conto D4-Pt Data sheet Conto D4-Pt Data sheet - NT672-V10
Conto D4-Pt Protocol Handbook Conto D4-Pt Protocol Handbook - PR102-00
Product Name / Options Price (ex VAT)
IME Conto D4-Pt CE4DT14A2 with Pulse Output CT Input 1A or 5A with programmable ratio Call for Prices
IME Conto D4-Pt CE4DT14A4 RS485 communication CT Input 1A or 5A with programmable ratio Call for Prices
