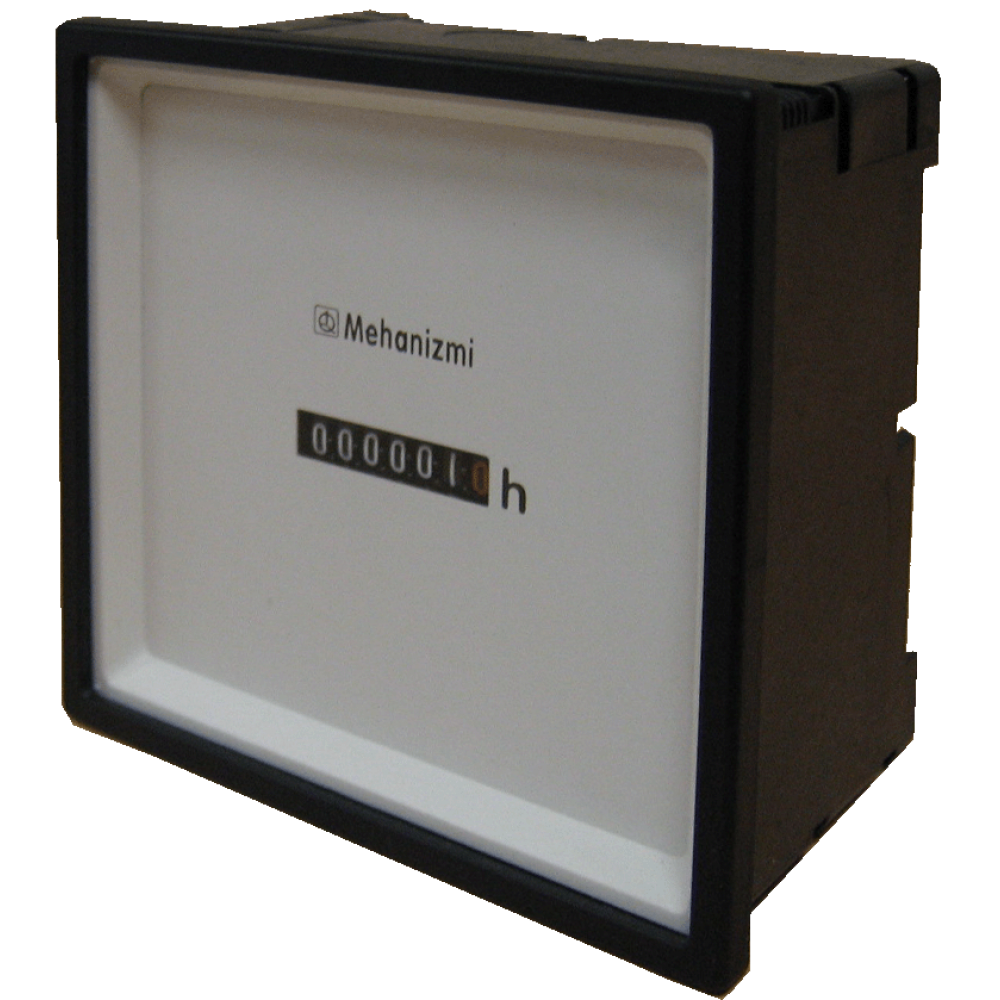

Mehanizmi HK-49 Hours Run Counter 96 x 96 mm

More Views

Mehanizmi HK-49 Hours Run Counter 96 x 96 mm

Features

Counting range AC: 99999,99h, DC: 999999,9h
Reading accuracy AC: 1/100h (36 sec), DC: 1/10h (6 min)
Display AC: 5 integers, 2 decimals, DC: 6 integers, 1 decimal, AC indicator, without reset
Accuracy AC: ±0,02%, DC:± 0,002%
Approvals : CE Mark, UL E171200, RoHS compliant
Protection : IP40 front, IP65 front (on request), IP20 terminals

- | Add to Compare

Details

Applications for use

Control panels

When ordering we need the following to be specified :-

Frequency :- 50 Hz Or 60 Hz For AC Voltage Only Required
Voltage : AC 24, 48, 60, 110, 120, 220, 230, 240, 400 VAC (Frequency to be specified)
or 6-30, 10-80, 110, 220 VDC (Frequency not required for DC)

Additional Information

Manufacturer	Mehanizmi

Downloads

Files

HK-48 & HK-49 Datasheet

Product Name / Options	Price (ex VAT)
HK-49 110Vac 50Hz Hours Run Counter IP40 & Screw Terminal Connection	Call for Prices
HK-49 110Vac 60Hz Hours Run Counter IP40 & Screw Terminal Connection	Call for Prices
HK-49 230Vac 50Hz Hours Run Counter IP40 & Screw Terminal Connection	Call for Prices
HK-49 230Vac 60Hz Hours Run Counter IP40 & Screw Terminal Connection	Call for Prices
