Mehanizmi HK-46 Hours Run Counter 48 x 48 mm

More Views

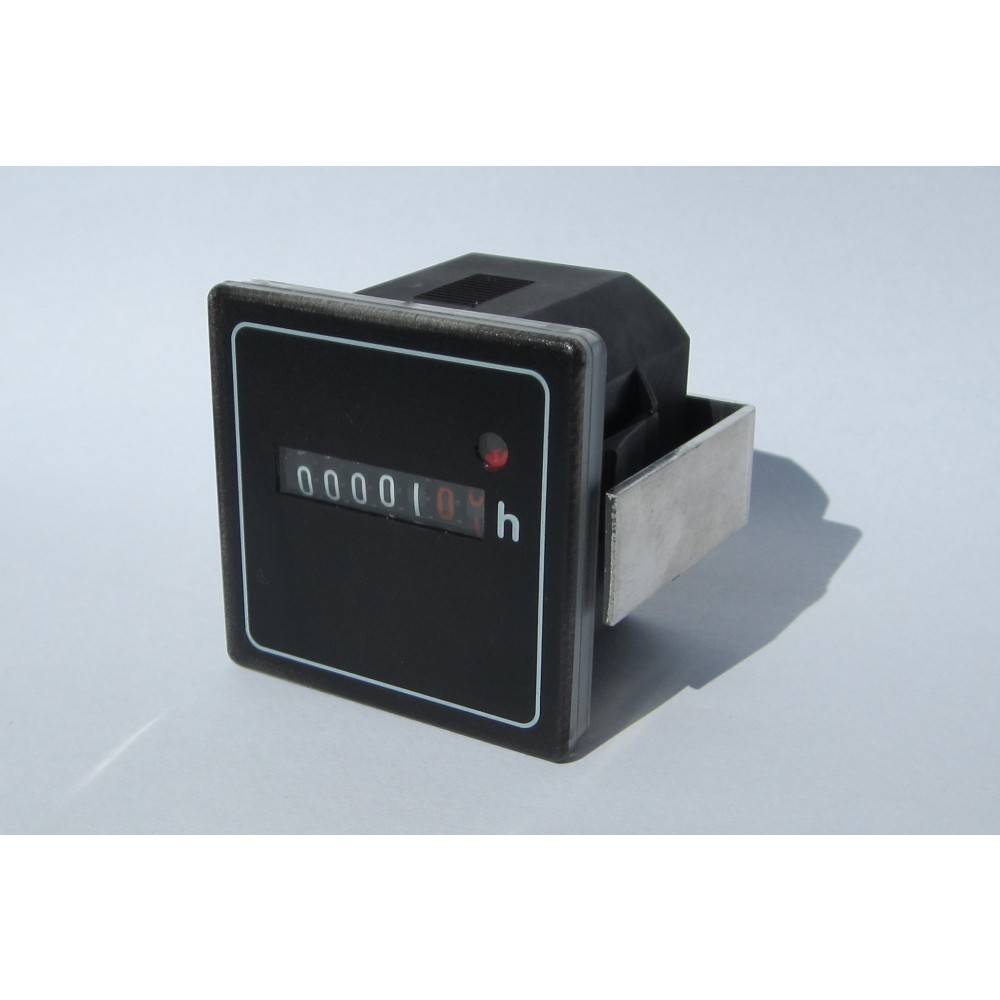

Mehanizmi HK-46 Hours Run Counter 48 x 48 mm

Features

Counting range AC: 99999,99h, DC: 999999,9h
Reading accuracy AC : 1/100h (36 sec), DC: 1/10h (6 min)
Display AC : 5 integers, 2 decimals, DC: 6 integers, 1 decimal, AC indicator, without reset
Accuracy AC : ±0,02%, DC: ±0,002%
Approvals : CE Mark, UL E171200, RoHS compliant
Protection : IP40 front, IP65 front (on request), IP20 terminals

- | Add to Compare

Details

Applications for use

gen-sets
compressors
pumps
medical equipment
control panels
air conditioning

When ordering the following parameters are required :-

Frequency : 50 Hz or 60 Hz For AC Voltage Only Required
Front protection : IP40 or IP65
Voltage : AC 24, 48, 60, 110, 120, 220, 230, 240, 400 VAC (Frequency to be specified)
or 6-30, 10-80, 110, 220 VDC (Frequency not required for DC)
Extension Bezel : 55x55 mm, 72x72 mm

Additional Information

Manufacturer	Mehanizmi

Downloads

Files

HK-46 Datasheet

Product Name / Options	Price (ex VAT)
HK-46 24Vac 50Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 110Vac 50Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 110Vac 60Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 230Vac 50Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 230Vac 60Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 230Vac 50Hz Hours Run Counter IP65 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 10-80Vdc Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 400Vac 50Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
HK-46 400Vac 60Hz Hours Run Counter IP40 & Aluminum Clamp Mounting & Screw Terminal Connection	Call for Prices
