When we introduced the fi rst ELTAKO impulse switches in 1949, they were already standing in the pole position in Europe and since then we have defended this position time and again with innovative products, highest quality, best possible service and attractive prices. Then, impulse switches were also called impulse relays, step switches or latching relays.
1-pole and 2-pole 16A/250V AC

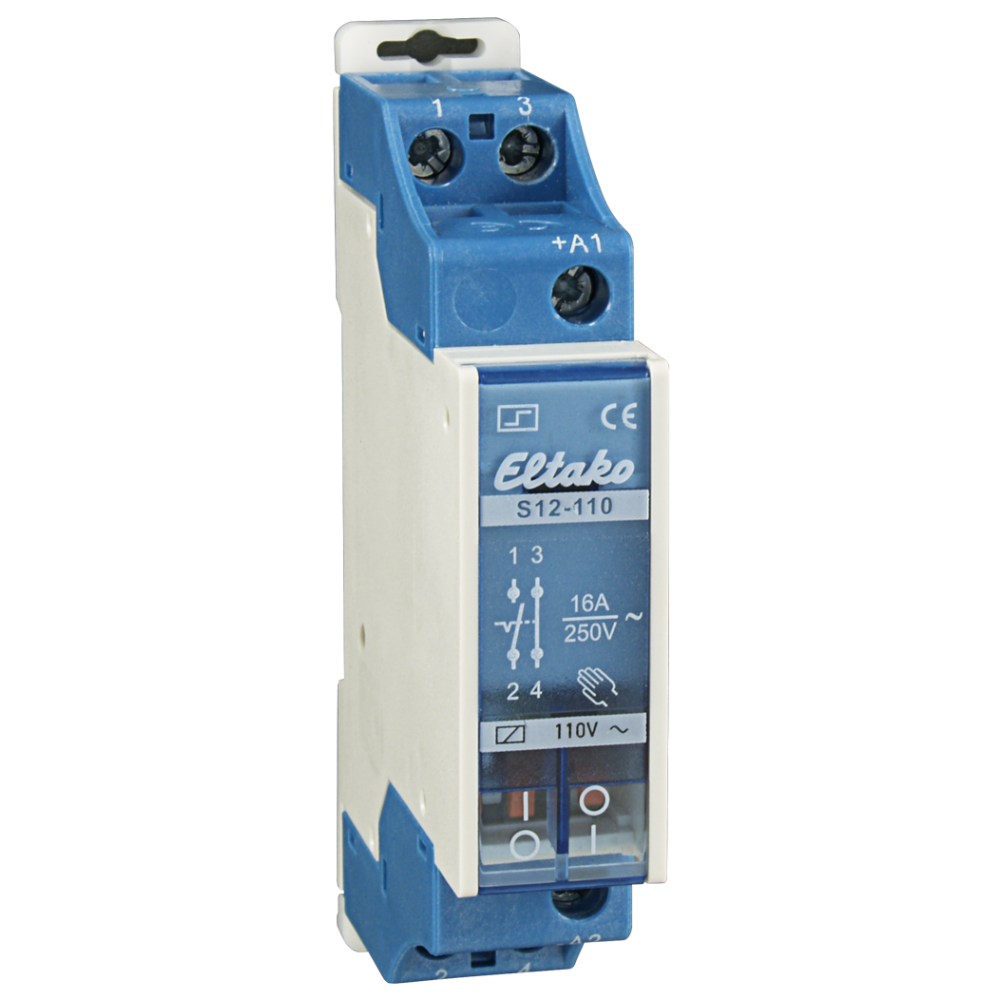

Modular devices for DIN 60715 TH35 rail mounting with manual control
and switch position indicator.
1 module = 18mm wide, 55mm deep.
100% time on. Control power demand 5–6W only.
Contacts 1 NO, 2 NO, 1 NO + 1 NC.
Contact gap 3mm. Spacing of control connections/contact > 6mm.
For control voltages up to 48V AC and 110V DC suitable for SELV net.
4-pole devices S12, page 19-3 and devices for 25A XS12, page 19-5.
Retrofi ttable auxiliary contact KM12, page 19-3.
* Non-standard control voltages: 42, 48, 60 and 110V/50Hz or 110, 115, 127 and
220V/60Hz as well as 6, 8, 42, 48, 60, 110 and 220V DC.
The terminal compatible hybrid impulse switches ES12DX-UC, ES12-200-UC and ES12-110-UC may be used as well.
