Rayleigh Instruments RI-F368 Single Phase and Three Phase Panel Mounted Kilowatt Hour Meter CT Operated

Features

  • Single phase and 3 phase (3 or 4 wire) network unbalanced load
  • Active energy class 1
  • -/5A or -/1A current transformer operated

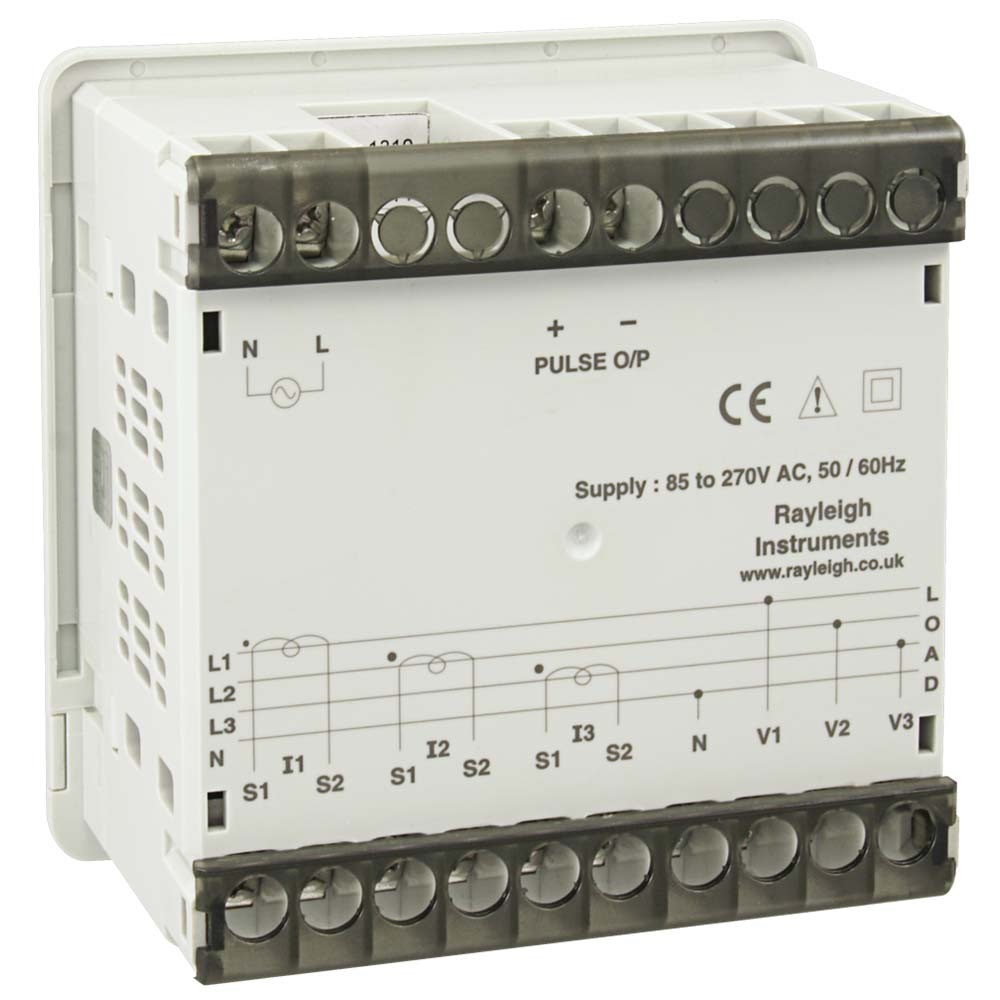

  • With Modbus RS485 or pulse output

Details

Description
This a Class 1 kilowatt hour meter single phase or three phase (3 or 4 wire) network unbalanced load.
A DIN 96 panel mounted kilowatt hour meter The input is via a -/5A or -/1A current transformer driven, 230/415V 50/60Hz system.

Technical Information
96 x 96mm flush panel mounting

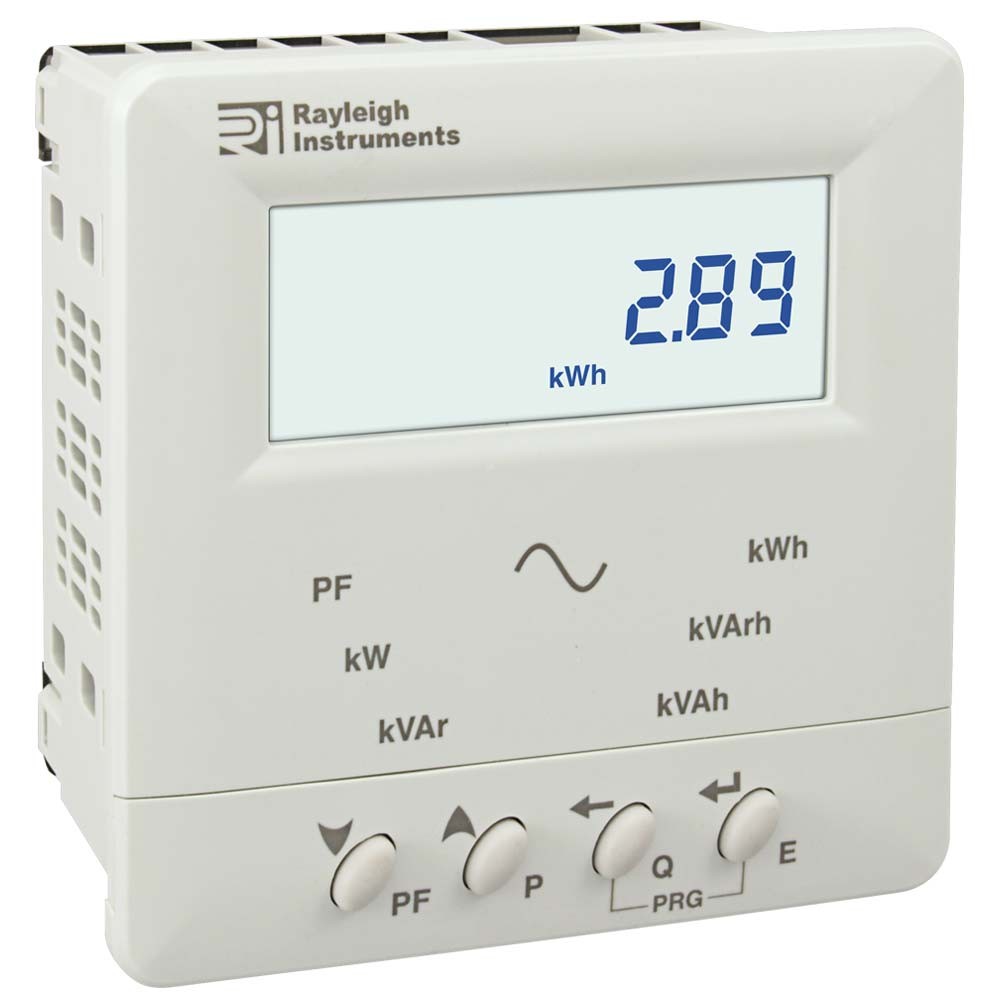

LCD display
Programmable CT ratio 5A…6000A
Direct measured voltage 100V...500V
Programmable VT ratio 100V...500KV
Measured voltage 230V 50 Hz

Replaced Model CT-2E

Downloads

Product Name / Options Price (ex VAT)
RI-F368-21-G - Single / Three Phase kWh Panel Meter - Pulse Call for Prices

RI-F368-22-G - Single / Three Phase kWh Panel Meter - RS485/Modbus Call for Prices
