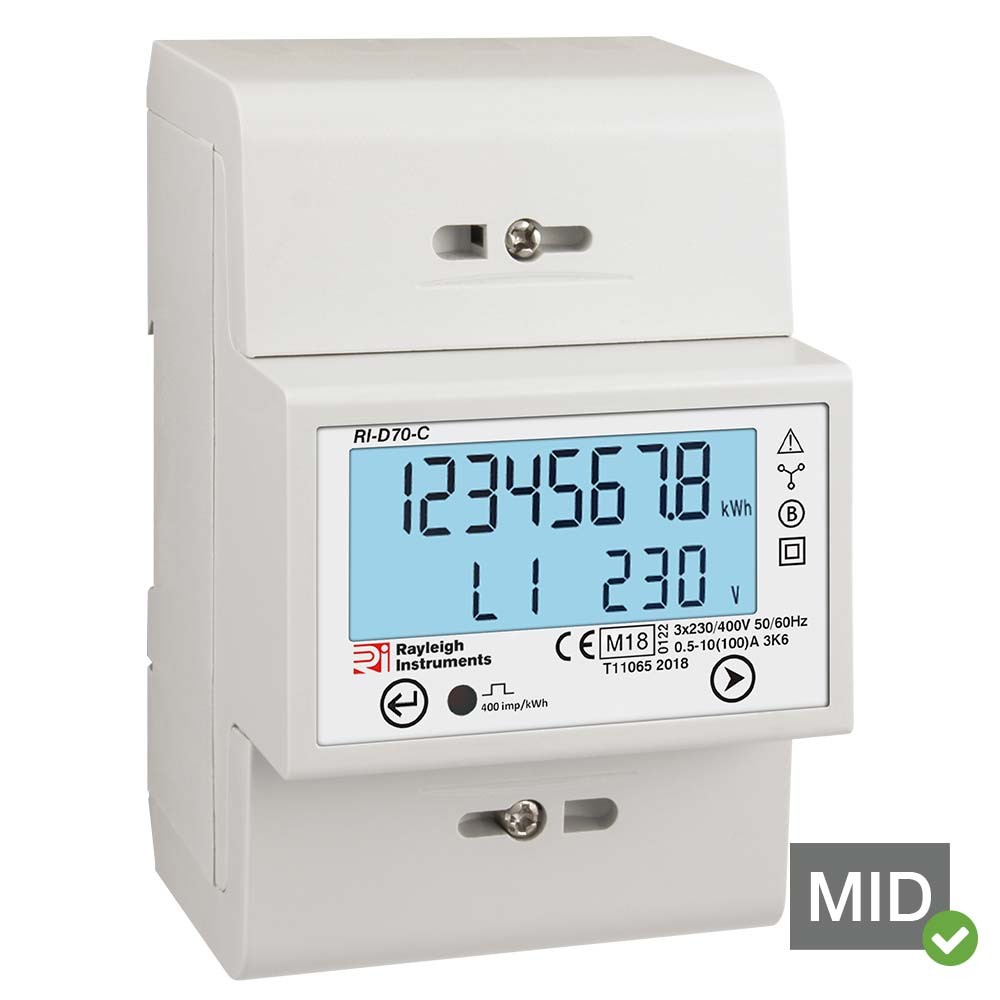

Rayleigh Instruments RI-D70 MID Certified Three Phase Kilowatt Hour Meter

Features

  • 100A direct connected
  • High definition backlit LCD display
  • Four module width DIN rail mounted
  • Import active energy measurement
  • Pulse output and Modbus or MBus communication
  • Single-pulse output
  • MID B+D Certified
  • LED pulse indication

Details

The RI-D70 Series forms part of the Rayleigh Instruments family of MID Certified energy meters, designed for the accurate measurement of energy consumption in residential, commercial, industrial and utility applications. The direct connection of the unit to a 100A ac circuit means the meter does not require additional current transformers.

This meter is housed in a four-module width case suitable for DIN rail mounting, with a high definition backlit LCD display allowing easy reading of the recorded values.

Its MID status means the RI-D70 has been tested for build quality and accuracy and is certified for billing purposes.

The meter is currently available in two versions:-
  • With Pulse output and Modbus RTU communication
  • With Pulse output and MBus communication

Displayed Parameters
  • Import Active Energy (kWh)
  • Active energy
  • Reactive energy
  • Voltage
  • Current
  • Active power
  • Reactive power
  • Apparent power
  • Power factor
  • Frequency
  • Comm Baud Rate
  • Comm Address

Additional Information

Manufacturer Rayleigh Instruments
