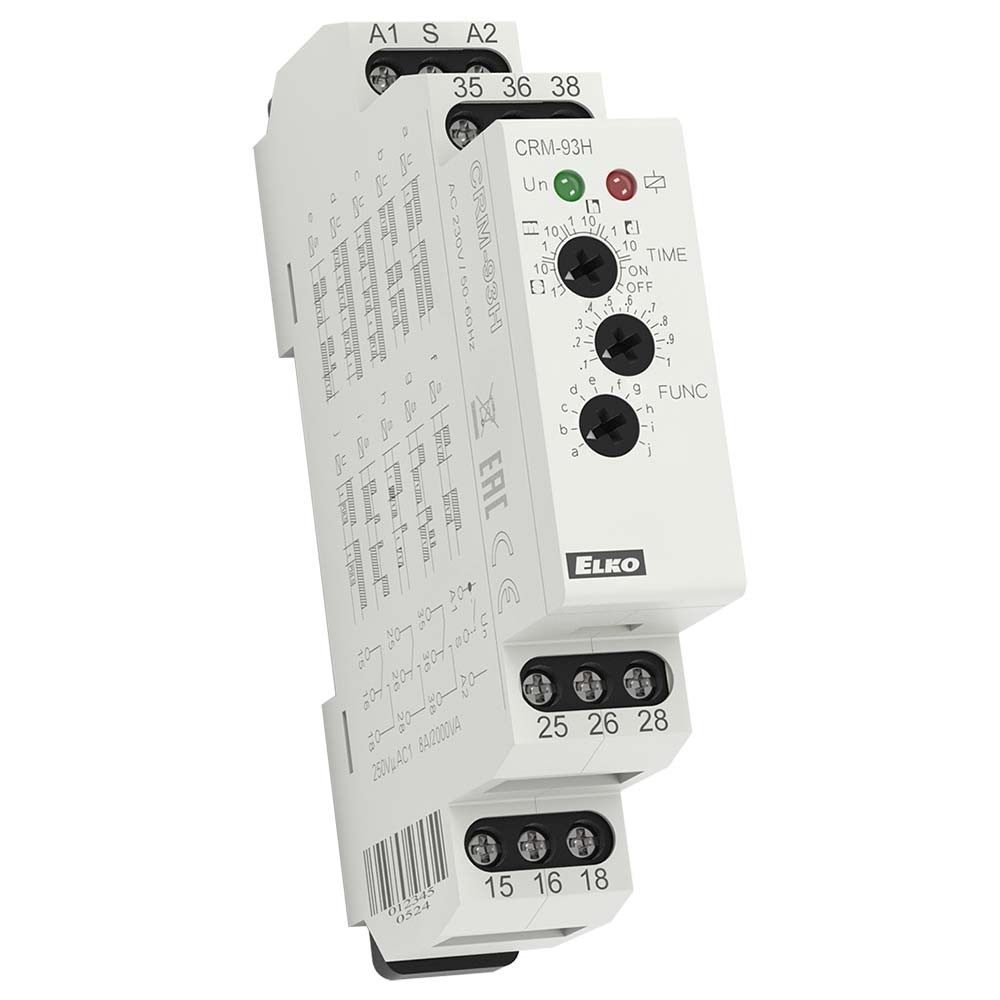

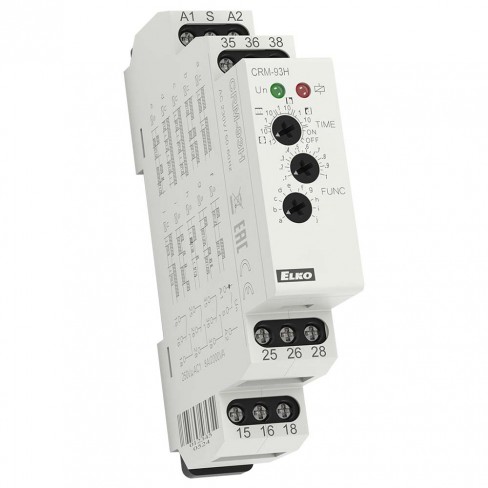

Elko CRM-93H Multifunction Time Relay - 3x changeover/ SPDT (AgNi / Silver Alloy)

Features

  • DIN Rail mounting Electronic timing relay
  • Selectable functions:-
  • On delay - from application of supply voltage.
  • Fleeting make action - from application of supply voltage.
  • Flashing timer (1:1 timing ratio) - beginning with 'ON' from application of supply voltage.
  • Flashing timer (1:1 timing ratio) - beginning with 'OFF' from application of supply voltage.
  • Off delay - from removal of control input.
  • Off delay - from application of control input.
  • Fleeting break action - from removal of control input.
  • On & off delay - from application of control input.
  • Impulse relay - controlled from control input.
  • Pulse generator - delayed 0.5s pulse from application of supply voltage.
  • Selectable time ranges 0.1…1s, 1…10s, 0.1…1m, 1…10m, 0.1…1h, 1…10h, 0.1…1 day, 1…10 day.
  • Supply voltage 12…240Vac/dc.
  • 3 changeover contacts.

Details

Multifunction time relay CRM-93H
10 functions, 10 time ranges, output 3 x 8A chageover/SPDT
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage, 16A or 3 x 8A contacts).
Fulfils all requirements for time relays.

10 functions:
- 5 time functions controlled by supply voltage
- 4 time functions controlled by control input
- 1 function of latching relay

Comfortable and well-arranged function and time-range setting by rotary switches
Time scale 0.1s…10 days divided into 10 ranges: (0.1s…1s / 1s…10s / 0.1min…1min / 1min…10min / 0.1hrs…1hrs / 1hrs…10hrs /0.1 day…1 day/ 1 day…10 days / only ON / only OFF)

CRM-93H : Universal supply voltage AC/DC 12…240V or AC 230V
Output contact: CRM-91H: 1 x changeover/SPDT 16 A; CRM-93H: 3 x changeover/SPDT 8 A

Multifunction red LED output indicator fl ashes or shines depending of status
1-MODULE, DIN rail mounting

Additional Information

Manufacturer Elko

Downloads

Files

CRM-93H Datasheet CRM-93H Datasheet
Product Name / Options Price (ex VAT)
CRM-93H - UNI (12-240Vac/dc) Call for Prices
