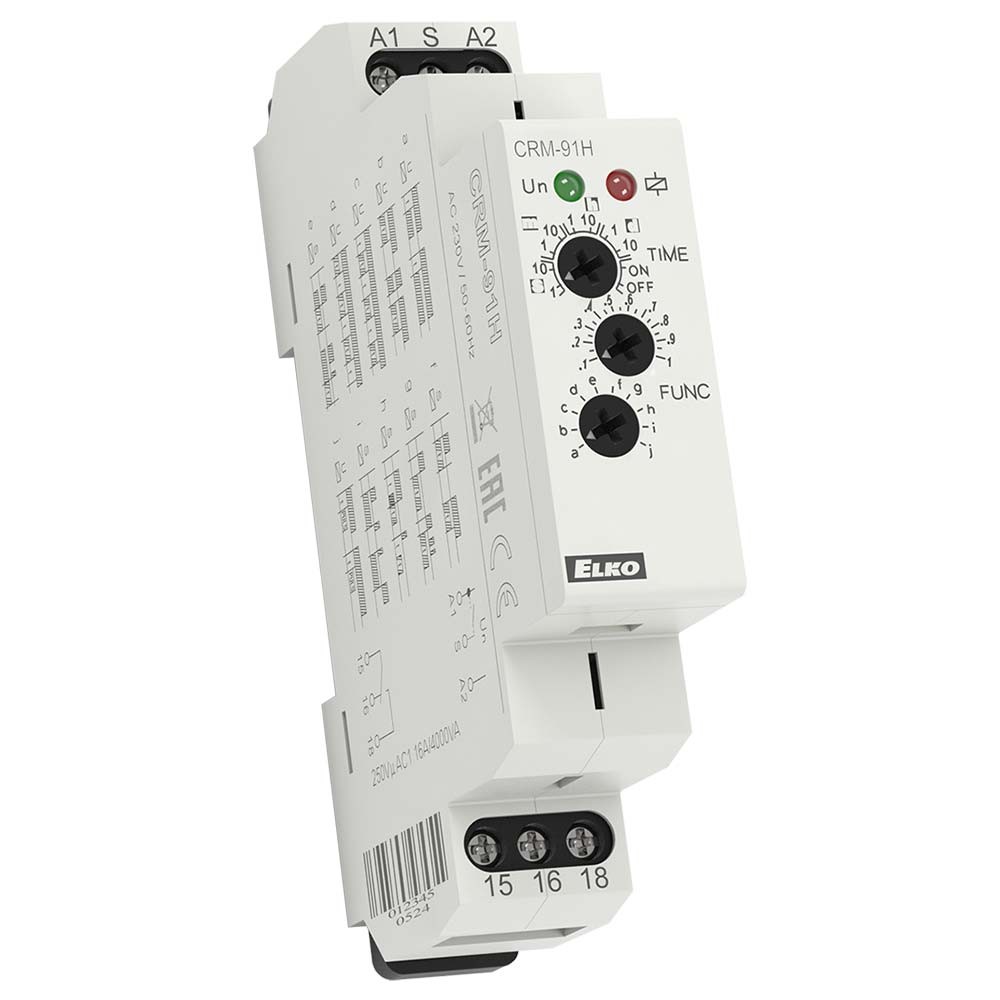

Elko CRM-91H/UNI Multifunction Time Relay - 10 functions, time 0,1s-10 days, 1xchangeover 16A

Features

  • DIN Rail mounting Electronic timing relay
  • Selectable functions:-
  • On delay - from application of supply voltage.
  • Fleeting make action - from application of supply voltage.
  • Flashing timer (1:1 timing ratio) - beginning with 'ON' from application of supply voltage.
  • Flashing timer (1:1 timing ratio) - beginning with 'OFF' from application of supply voltage.
  • Off delay - from removal of control input.
  • Off delay - from application of control input.
  • Fleeting break action - from removal of control input.
  • On & off delay - from application of control input.
  • Impulse relay - controlled from control input.
  • Pulse generator - delayed 0.5s pulse from application of supply voltage.
  • Selectable time ranges 0.1-1s, 1-10s, 0.1-1m, 1-10m, 0.1-1h, 1-10h, 0.1-1d, 1-10day.
  • Supply voltage 12-240Vac/dc.
  • 1 changeover contact.

Details

Multifunction time relay CRM-91H.
10 functions, 10 time ranges, 1 x output 16A changeover/SPDT, multivoltage or 230V supply.
Multifunction time relay can be used for electrical appliances, control of lights, heating, motors, pumps and fans (10 functions, 10 time ranges, multi-voltage, 16Amps or 3 x 8Amps contacts).
Fulfills all requirements for time relays.

10 functions:-
- 5 time functions controlled by supply voltage
- 4 time functions controlled by control input
- 1 function of latching relay

Comfortable and well-arranged function and time-range setting by rotary switches.
Time scale 0.1 s - 10 days divided into 10 ranges: (0.1 s - 1 s / 1 s - 10 s / 0.1 min - 1 min / 1 min - 10 min / 0.1 hrs - 1 hrs / 1 hrs - 10 hrs /0.1 day - 1 day/ 1 day - 10 days / only ON / only OFF)

CRM-91H : Universal supply voltage AC/DC 12 - 240 V or AC 230 V
Output contact: CRM-91H : 1 x changeover/SPDT 16 A; CRM-93H: 3 x changeover/SPDT 8 A
Multifunction red LED output indicator fl ashes or shines depending of status
1-MODULE, DIN rail mounting
Product Name / Options Price (ex VAT)
Elko CRM-91H/UNI AC/DC 12-240 V Multi-Function Timer Call for Prices
