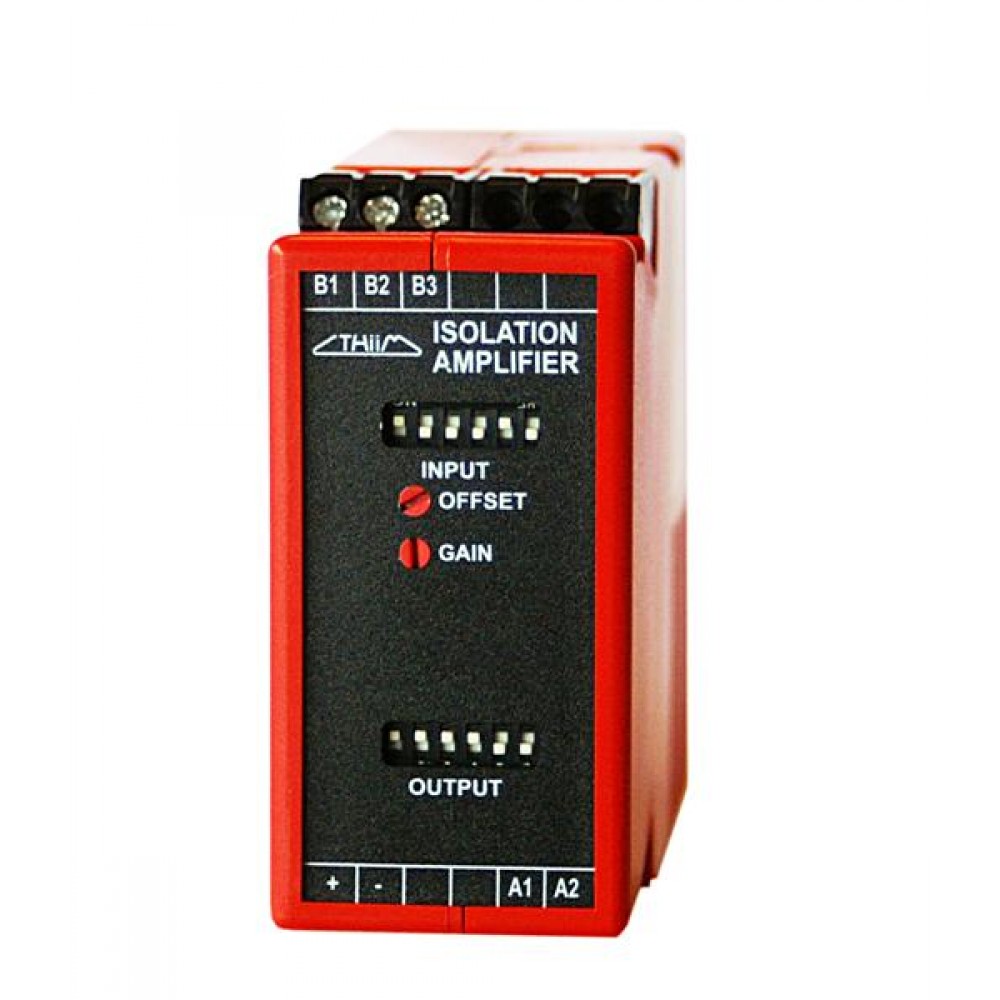

Thiim AISB mV Transmitter

Features

  • mV to standard Current/Voltage conversion
  • Galvanic separation > 4 kV
  • 4 programmable input ranges
  • 8 programmable output ranges
  • Excellent linearity
  • Small outline

Details

Description: The mV transmitter is designed to convert low level noise sensitive signals into high level signals and improve the noise immunity by adding a galvanic separation. AISB is build with a linearized optic transmission for high accuracy. The mV transmitter is a version of the isolation amplifier. Application: The mV transmitter is designed for the transmission of signals from distant sensors to the control room or for interface between sensor and PC or PLC. Sensors can be of any kind like: Shunt, measuring bridges or used in weight cells or in temperature units. SUPPLY AC and DC 18-360 VDC and 20-264 VAC with isolated switchmode supply AC supply range 24 V (From 20 to 28 V) with transformer 110 V (From 99 to 140 V) 230 V (From 198 to 264 V) 400 V (From 342 to 484 V) Frequency range 45 to 440 Hz (transformer) Power consumption 2.5 VA, 1.1 W
Product Name / Options Price (ex VAT)
Thiim AISB-B110-AA3C mV Transmitter, 99-140 VAC Supply , Input offset & gain adjustable - 32042 Call for Prices

Thiim AISB-B230-AA3C mV Transmitter, 198-264 VAC Supply , Input offset & gain adjustable - 32041 Call for Prices

Thiim AISB-E400-AA3C mV Transmitter, 18-360 VDC and 20-264VAC Supply , Input offset & gain adjustable - 43794 Call for Prices

Thiim AISB-B230-DA3C mV Transmitter, 198-264 VAC Supply , Input offset & gain fixed - 32184 Call for Prices

Thiim AISB-B400-DA3C mV Transmitter, 342-484 VAC Supply , Input offset & gain fixed - 45023 Call for Prices

Thiim AISB-E400-DA3C mV Transmitter, 18-360 VDC and 20-264VAC Supply , Input offset & gain fixed - 43729 Call for Prices
