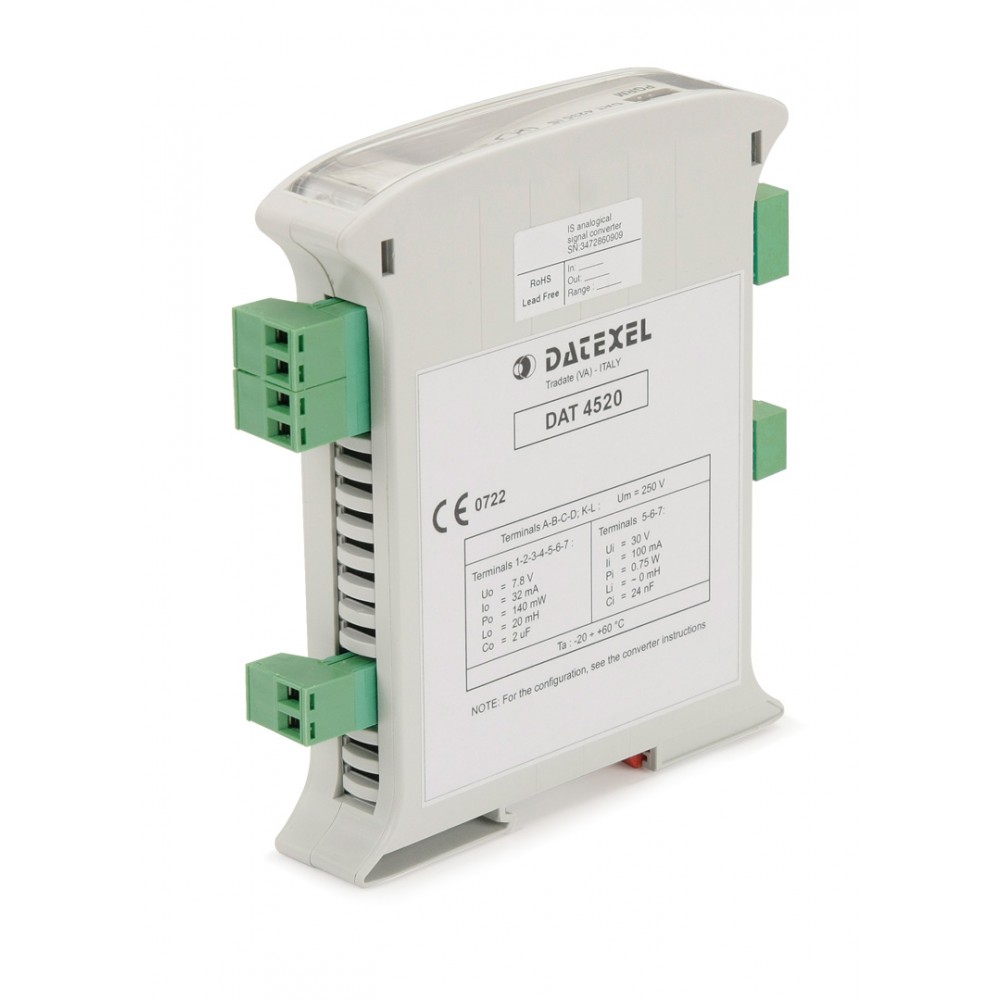

The DAT 4520 device measures mV, V, mA or resistance signals, and can be directly connected to Thermocouple, RTD or potentiometer sensors.
The input signal is filtered, linearised, amplified and transferred to the output circuit, that converts it in a 0-10V range or 0-20mA range signal. Auxiliary power supply allows to supply the output current loop. Moreover, the device is able to control two trip alarm relay outputs.
DAT 4520 has a 3 way isolation: input is 2000 Vac isolated from power supply and output; power supply and output are 1500 Vac isolated between them. Programming and configuration is made by means of personal computer through the PRODAT interface.
The device must be powered with a voltage between 20 and 30 Vdc; the “PWR” green led turned on indicate the correct power supply; the "RL1" and "RL2" red led indicates the trip alarm status. The DAT 4520 is in compliance with the Directive 2004/108/EC on the electromagnetic compatibility. The device is housed in a rough self-extinguish plastic enclosure of 22.5 mm thickness suitable for DIN rail mounting .
