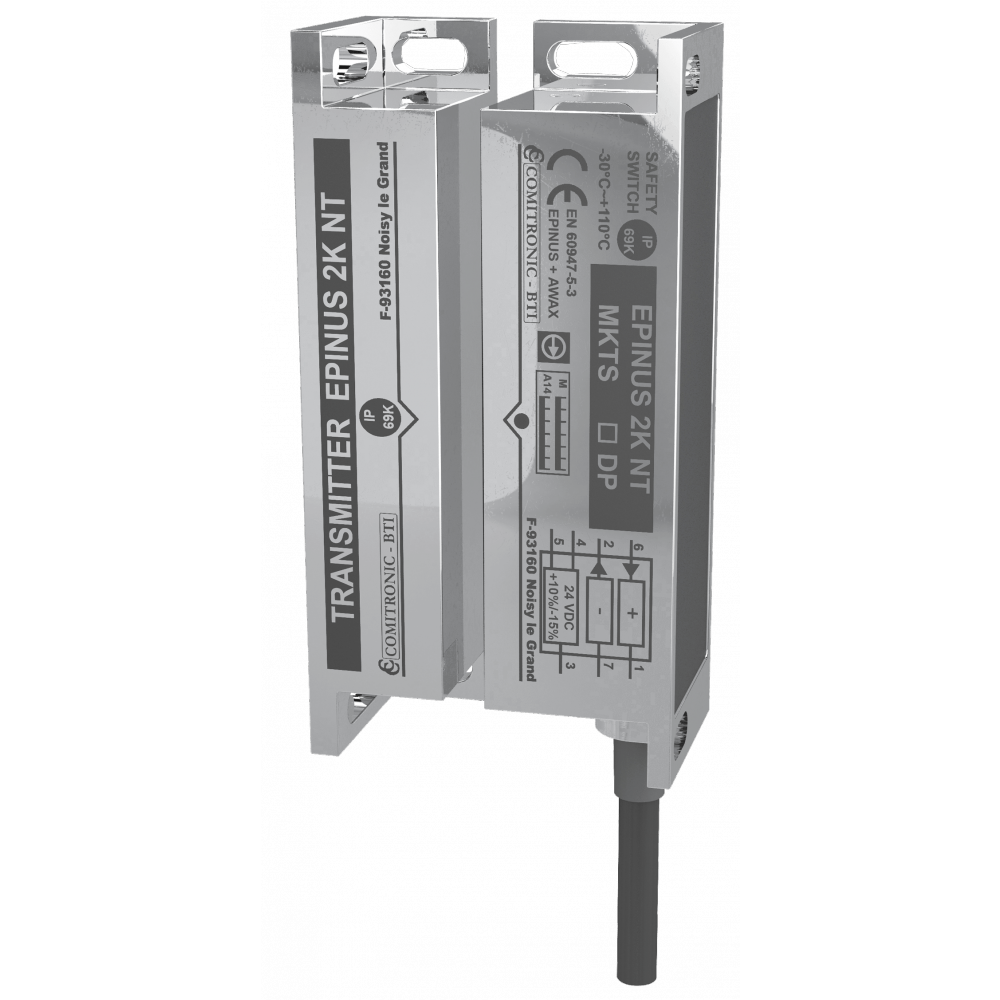

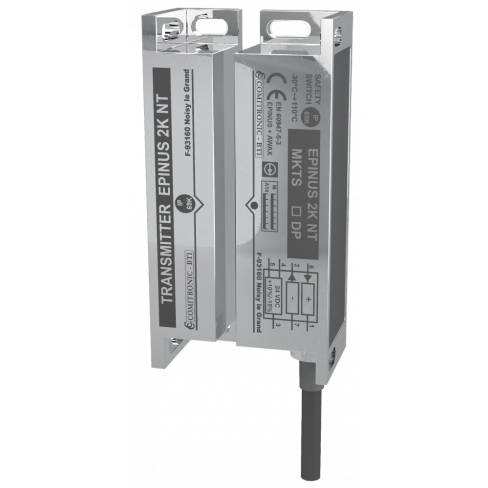

The EPINUS is a coded magnetic sensor using our ACOTOM2 method for detecting the opening safety gate giving access to hazardous areas and keep them magnetically closed. This product is suitable for aggressive environments in the food industry. It has two lines of static control to indicate openness to the controller mismatch AWAX our range, which ensures the cutting of the dangerous function.
An auxiliary line NC indicates the opening of the door by returning the power supply voltage, even when mounted in series. The holding force is 20N
Level of performance with AWAX controller : up to PL = e
Safety category : up to 4 with an AWAX controller
Time before dangerous failure : MTTFd = 100 years
Max. activation distance : 3mm, 1mm hysteresis
Holding Force : transmitter + receiver in contact = 20N
Safety contacts/diagnostics : 2 x NO 0.8A/24V redundant and 1 x PNP 250mA
Detection encoding : mono-code inviolable
Reset : automatic
Attachment : 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position : 2 (double wall brackets)
Material : INOX 316L mirror polished
Electrical connection : 50cm Ultra-soft silicone cord with M12 connector.
Water resistance : IP 69K
Extreme temperature : -40°C…125°C
Marking : laser engraving with mechanical punching of the serial number
