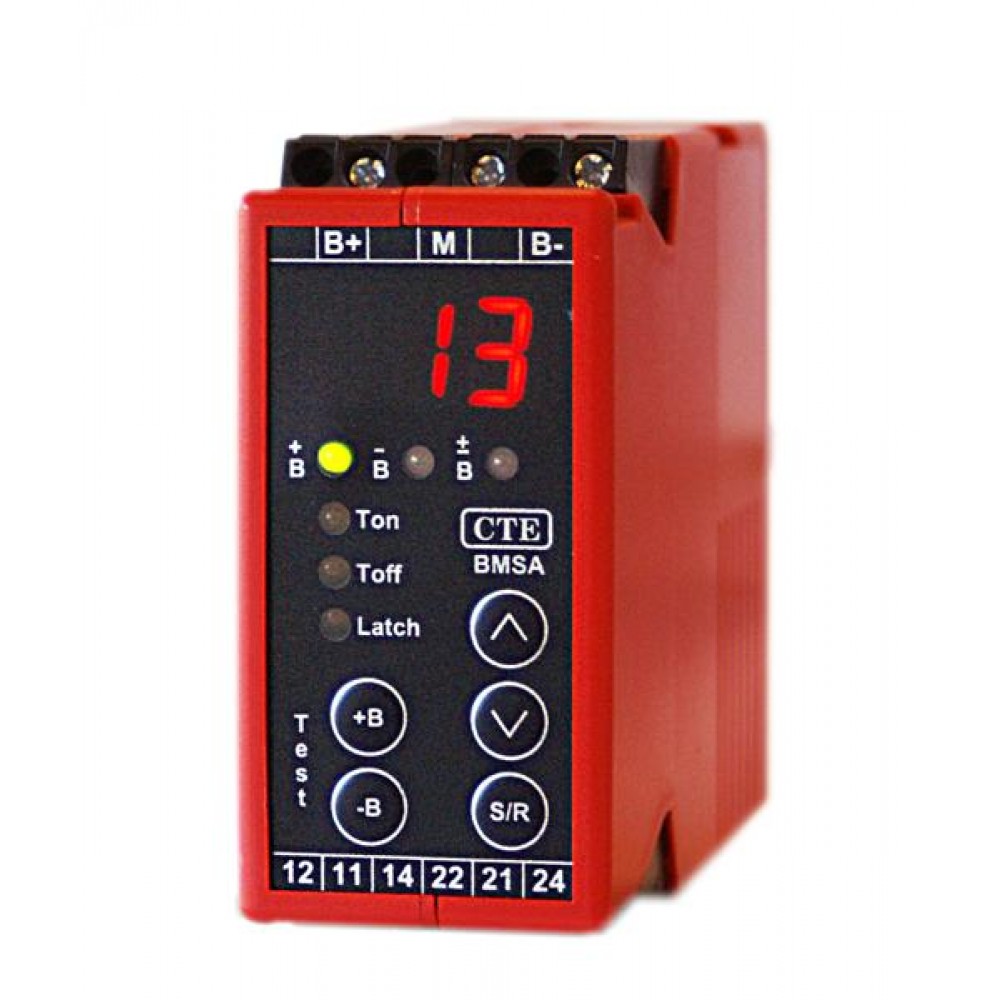

Thiim BMSA Battery Symmetry Monitoring Relay

Features

  • Early warning for Cell deterioration like Sulphating or internal Short Circuit
  • All in one unit by Multi Range from 24 to 512 Volt
  • No current leak through the middle point connection
  • Optional Over and Under voltage monitoring
  • Easy set-up by keying in actual parameters or loading in through a RS 232 connection
  • Time delay - On and Off - can be set individually
  • Latched Relay function can be selected
  • LEDs indicate the status of the relay, latch and timing function
  • Reset and individual Test keys for +B and -B
  • RoHS technology
  • Extremely compact and low power consumption

Details

Description The multi-purpose Battery Symmetry Relay BMSA is designed to monitor and give an early warning if one or more cells are performing different from an average cell in the battery. The battery must consist of two blocks of cells coupled in series with an accessible middle point used as a reference potential. No current will be drawn from the middle point. The Symmetry Relay monitors that the positive and the negative battery blocks perform equally independent of the actual charge and load level. The two battery blocks do not need to be of equal voltage (same number of cells), but the individual cells must be equal and have the same history. The BMSA accepts up to twice as many cells in one block as in the other. The nominal voltage range of each block can be set from 12V to 256V and the actual voltage must be within the range of 9 to 300V allowing a battery voltage ranging from 18V to 600V. For high battery voltages exceeding 300V the middle point connection is critical. If it can (even accidentally) be disconnected, the maximum battery voltage must be kept below 300V. As an option, the BMSA can be extended to monitor the actual battery voltage for under and over voltage. The option will include individual relays for under and over voltage. Application: The BMSA is used on batteries in back up supplies where, by matching two batteries against each other, a warning can be given as soon as a cell in one of the battery blocks starts to deteriorate. As the BMSA is not depending on the actual charge and load status, it is a powerful supervision of only occasionally used batteries in emergency systems.
Product Name / Options Price (ex VAT)
Thiim BMSA-1830-PA3C Battery Symmetry Monitoring Relay, 18 V to 300 Vdc, 35 mm - 40662 Call for Prices
