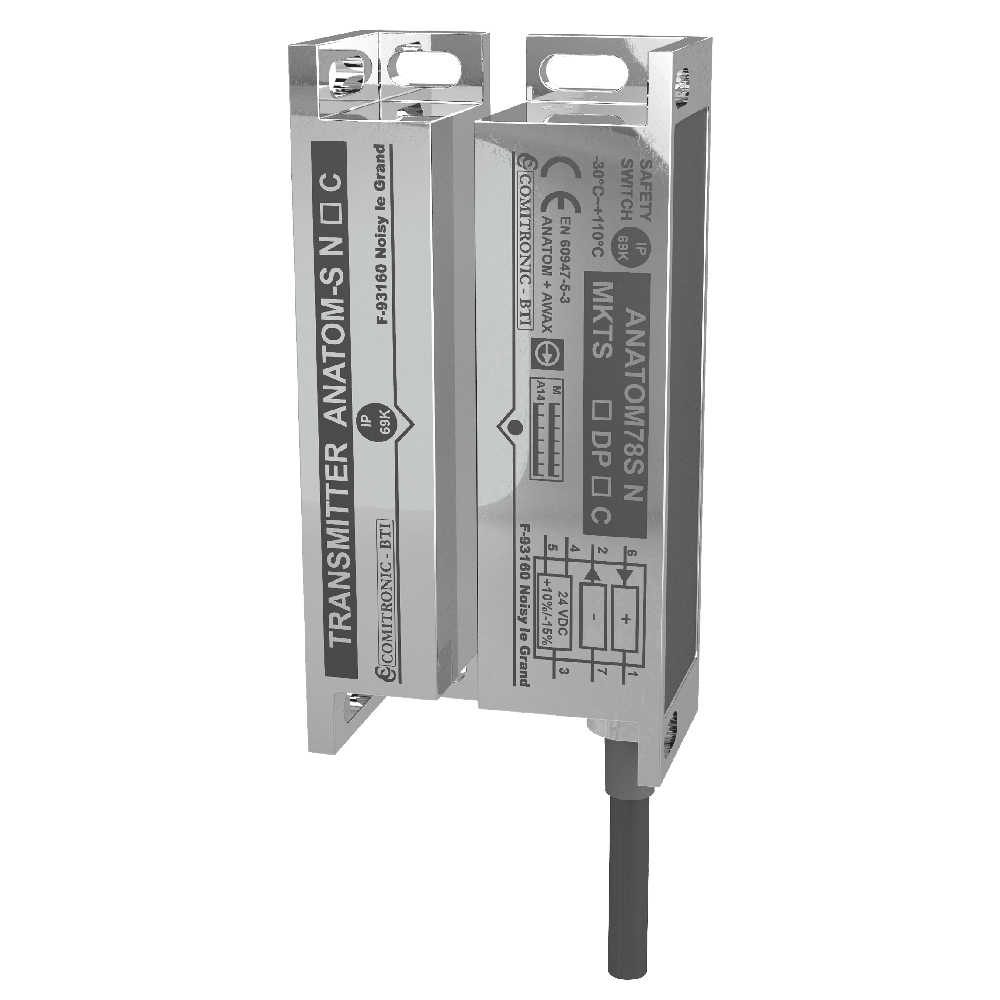

This is a coded magnetic sensor using our ACOTOM2 method for detecting the opening safety gate giving access to hazardous areas. This product is suitable for aggressive environments in the food. It has two lines of static control to indicate openness to the controller mismatch AWAX our range, which ensures the cutting of the dangerous function. An auxiliary line NC indicates the opening
of the door by returning the power supply voltage, even when mounted in series.
Time before dangerous failure: MTTFd = 100 years
Max. activation distance: 10 mm, 2 mm hysteresis
Safety contacts/diagnostics: 2 x NO 1A/24V redundant and
1 x 250mA PNP contact
Detection encoding: mono-code inviolable
Reset: automatic
Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position: 2 (double wall brackets)
Material: INOX 316L mirror polished
Electrical connection: 50cm Ultra-soft silicone cord with M12 connector.
Water resistance: IP 69K
Extreme temperature: -40°C to +125°C
Protective cover 316L stainless steel mirror polished "ref. + C" option
Marking: laser engraving with mechanical punching of the serial number for permanent traceability
