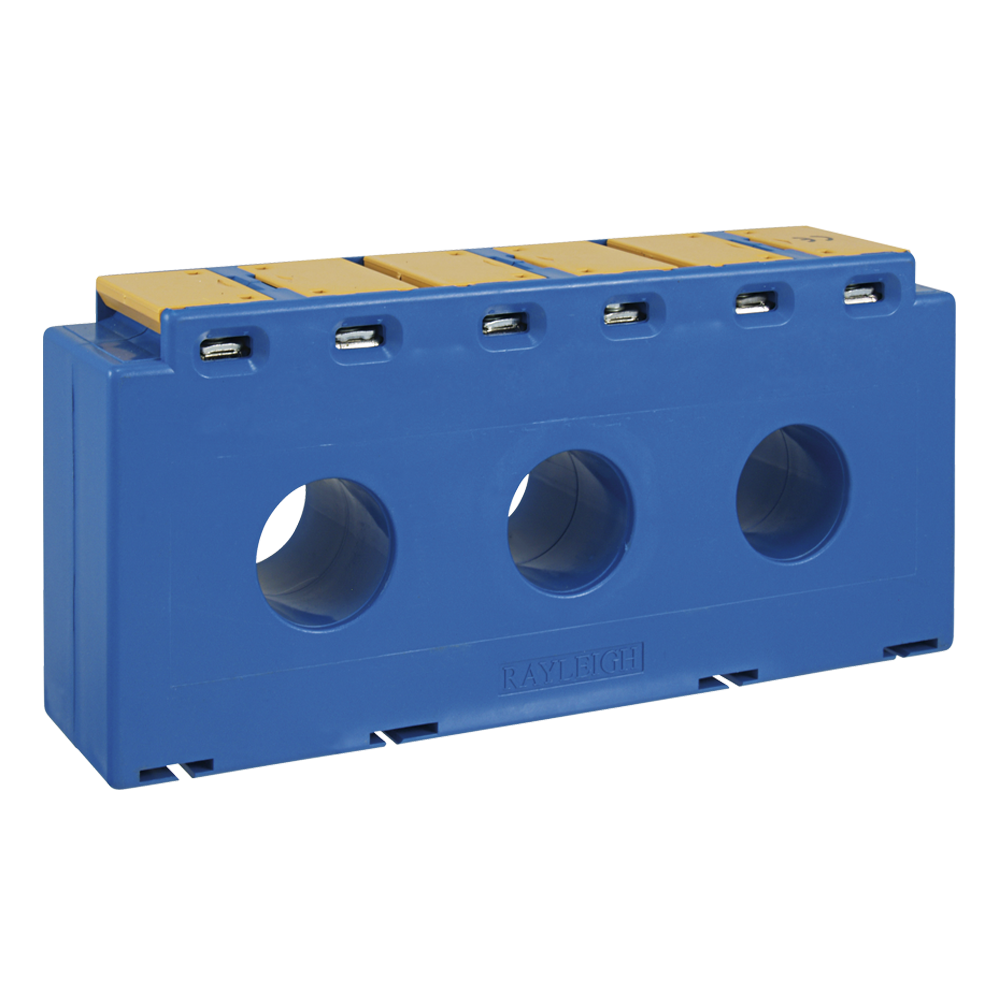

Rayleigh Instruments TAS227 Three Phase Measuring Moulded Case Current Transformers

Features

  • Three Phase Measuring Current Transformers.
  • Primary Current Range: 40 to 500A
  • Secondary Current Ratios: 5A
  • Cable aperture : 3 @ 27mm diameter
  • Class Accuracy Cl1 and Cl3

Details

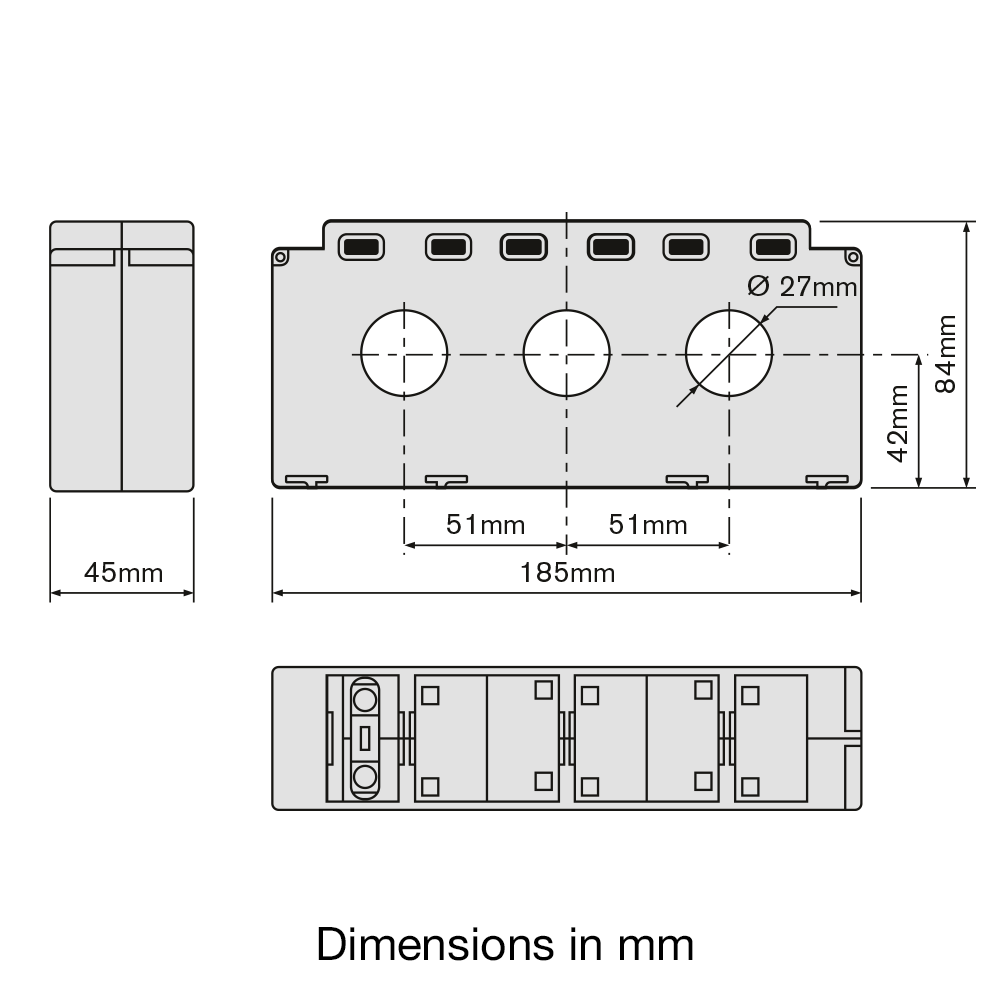

Three phase moulded case current transformers suitable for primary ranges from 40-500A with 5A secondary. Supplied with terminal cover and integral foot mount Application The products have an overall width of 185mm allowing installation of 185mm allowing installation directly on top of moulded case circuit breakers. They can also be used independently in 3 phase applications. Technical Specification Reference Standards : EN60044–1, BS3938, BS7626 Temperature Range : Working –20 to +85˚C Frequency : 47…63Hz System Voltage : 720V max. Test Voltage : 3KV for 1 minute at 50Hz Housing Material Self extinguishing Polycarbonate, IEC185 classification VO according to UL-94 Hinged terminal cover Supplied with 4 steel fixing feet and DIN Rail mounting adapters. Screw terminal with dual connection facility giving access from both sides of the transformer M4 Screws with built in terminal covers Weight : 600g Dimensions

Additional Information

Manufacturer Rayleigh Instruments

Downloads

Product Name / Options Price (ex VAT)
TAS227 - Three Phase Current Transformer - 50/5A Call for Prices

TAS227 - Three Phase Current Transformer - 60/5A Call for Prices

TAS227 - Three Phase Current Transformer - 80/5A Call for Prices

TAS227 - Three Phase Current Transformer - 100/5A Call for Prices

TAS227 - Three Phase Current Transformer - 150/5A Call for Prices

TAS227 - Three Phase Current Transformer - 200/5A Call for Prices

TAS227 - Three Phase Current Transformer - 250/5A Call for Prices

TAS227 - Three Phase Current Transformer - 300/5A Call for Prices

TAS227 - Three Phase Current Transformer - 400/5A Call for Prices

TAS227 - Three Phase Current Transformer - 500/5A Call for Prices
