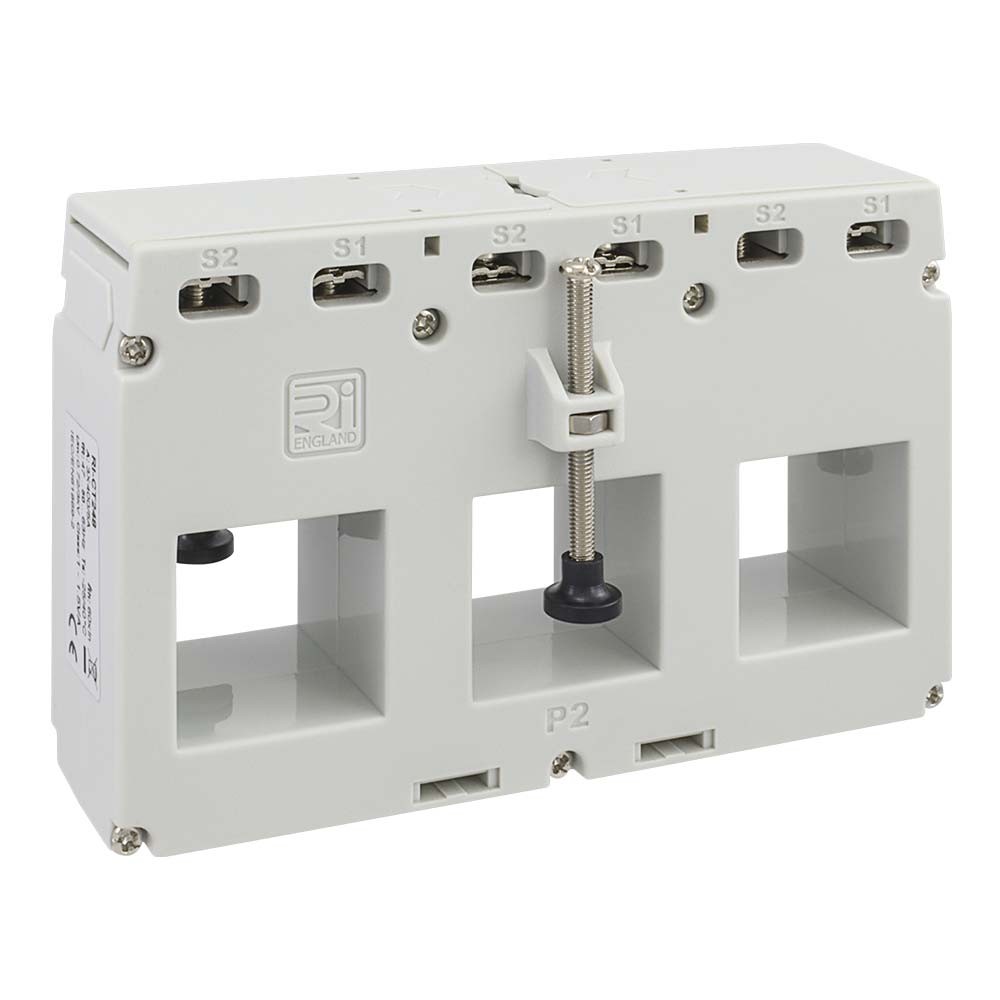

Rayleigh Instruments RI-CT248 Three Phase Current Transformer

Features

  • Primary currents: 250A, 300A, 400A, 500A, 600A and 630A versions
  • 5A Secondary output

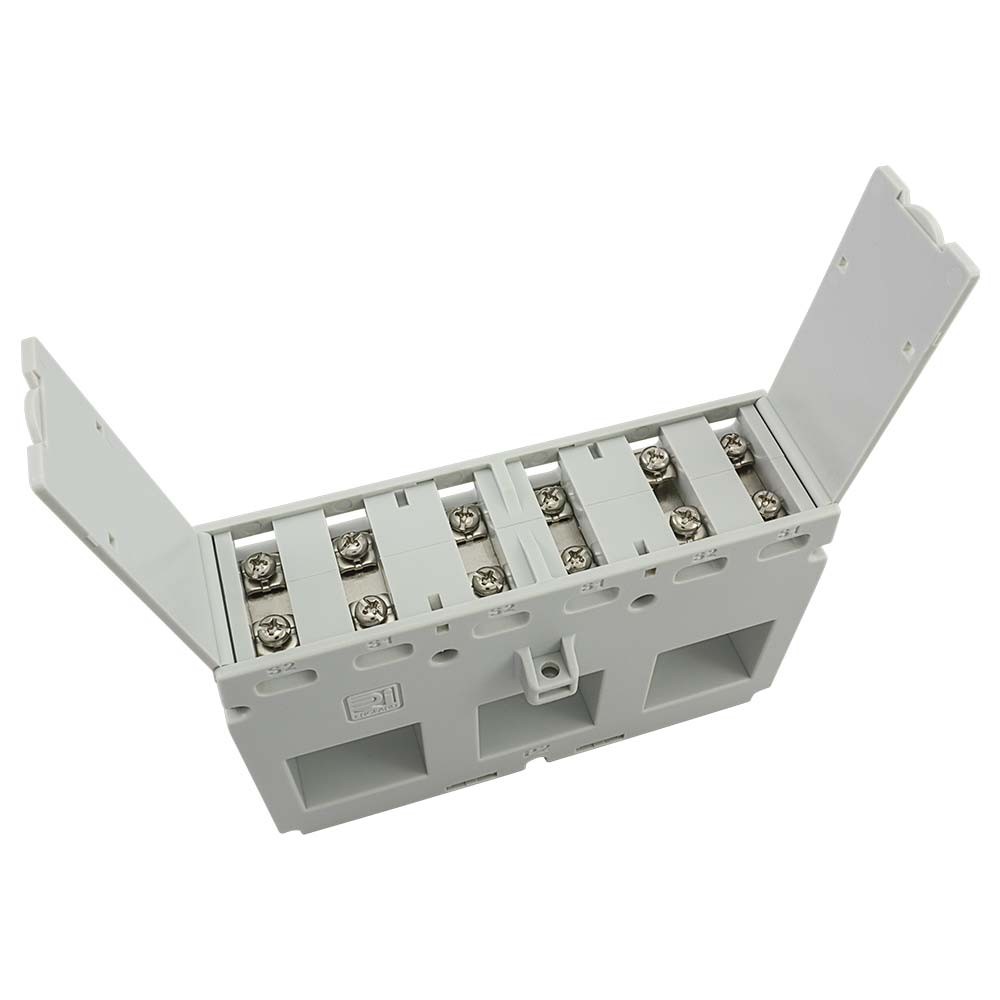

  • Sealable terminal cover
  • Supplied with DIN Rail mounting clip, Busbar fixings and mounting feet
  • Compact design
  • Indication of primary current flow (arrows on case body)
  • 31 x 31mm busbar/cable apertures
  • 45mm bar centres
  • 140mm width

Details

The RI-CT248 Series forms part of a family of solid core three-phase moulded case current transformers from Rayleigh Instruments.

These transformers are suitable for monitoring current flow in commercial, industrial or utility applications. They are designed to connect any standard metering or relay product requiring a 5A output and are available with Primary current input ranges from 250A to 630A.

The RI-CT248 Series have been designed to fit a standard moulded case breaker size and are supplied with DIN rail clip, busbar mounting clamp and fixing feet. They also have clear markings moulded into the case to indicate the correct direction of primary current flow to minimise installation errors.

Additional Information

Manufacturer Rayleigh Instruments
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
