TA90311 (formerly TAS23)

Features

This product is no longer available - see bottom of page for alternative

  • Ranges: 150 to 600A (1A or 5A Secondary)

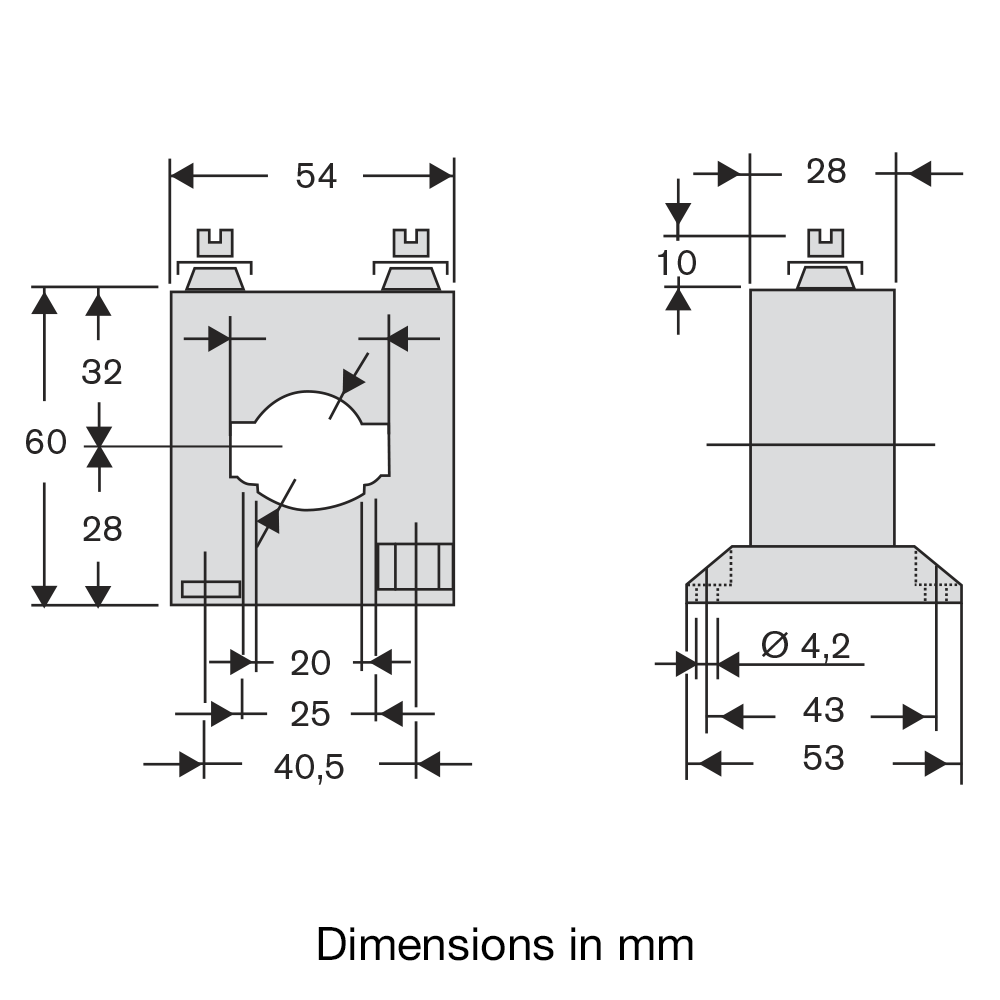

  • Busbar window 30 x 10mm, 25 x 11mm or 20 x 12mm
  • 23mm dia cable aperture
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Supplied with fixing feet.
  • Optional sealable terminal cover and DIN rail adaptor
  • Weight 250g

Details

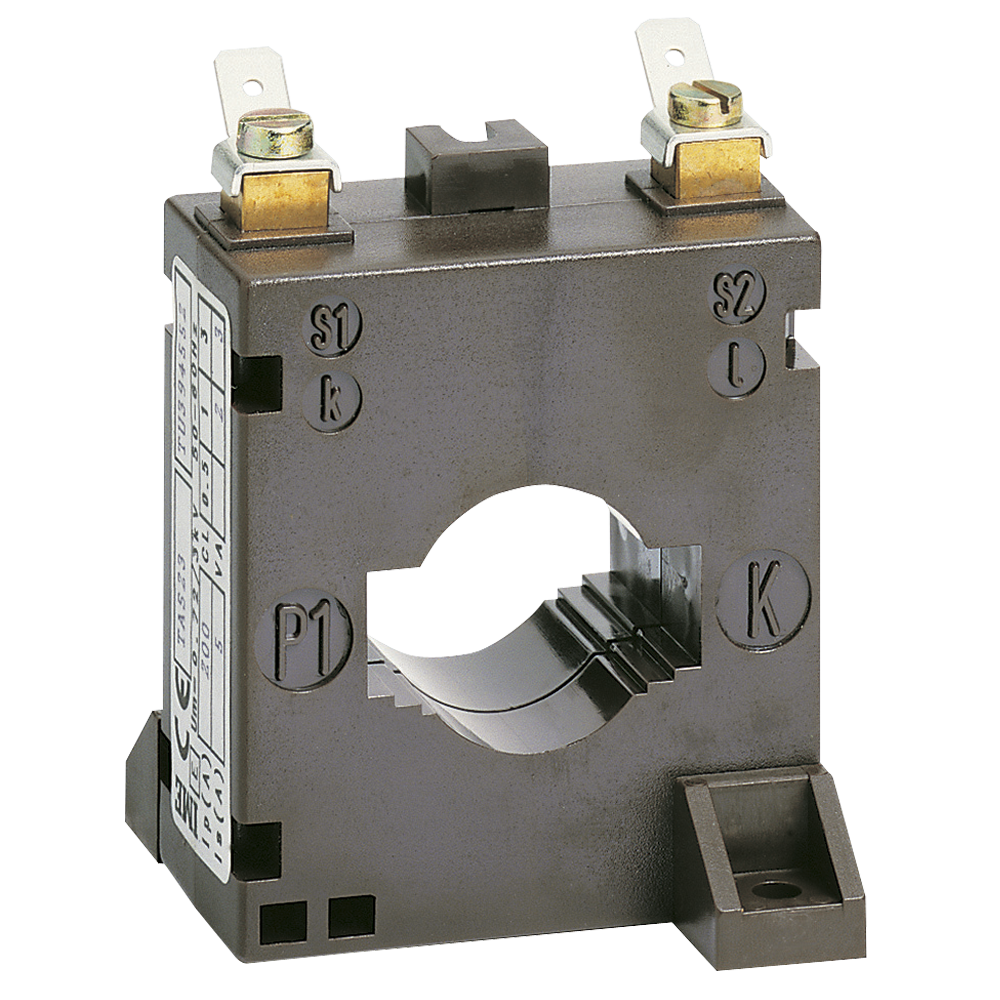

Measuring current transformer supplied with fixing feet. The TA90311 current transformer has a 23mm (30 x 10mm, 25 x 11mm or 20 x 12mm busbar) aperture and is available with primary currents from 150 to 600A.

Additional Information

Manufacturer N/A

Downloads

Product Name / Options Price (ex VAT)
TA90311151 (150/5A) Call for Prices
TA90311201 (200/5A) Call for Prices
TA90311251 (250/5A) Call for Prices
TA90311301 (300/5A) Call for Prices
TA90311351 (400/5A) Call for Prices
TA90311401 (500/5A) Call for Prices
TA90311451 (600/5A) Call for Prices
