TAIE (formerly TAI300)

Features

This product is no longer available - see bottom of page for alternative

  • Ranges: 100 to 600A (1A or 5A Secondary)
  • Busbar window 31 x 11mm, 21 x 13mm or 11 x 21mm
  • 22mm dia cable aperture
  • Moulded DIN rail clip/mounting feet
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Weight 320g

Details

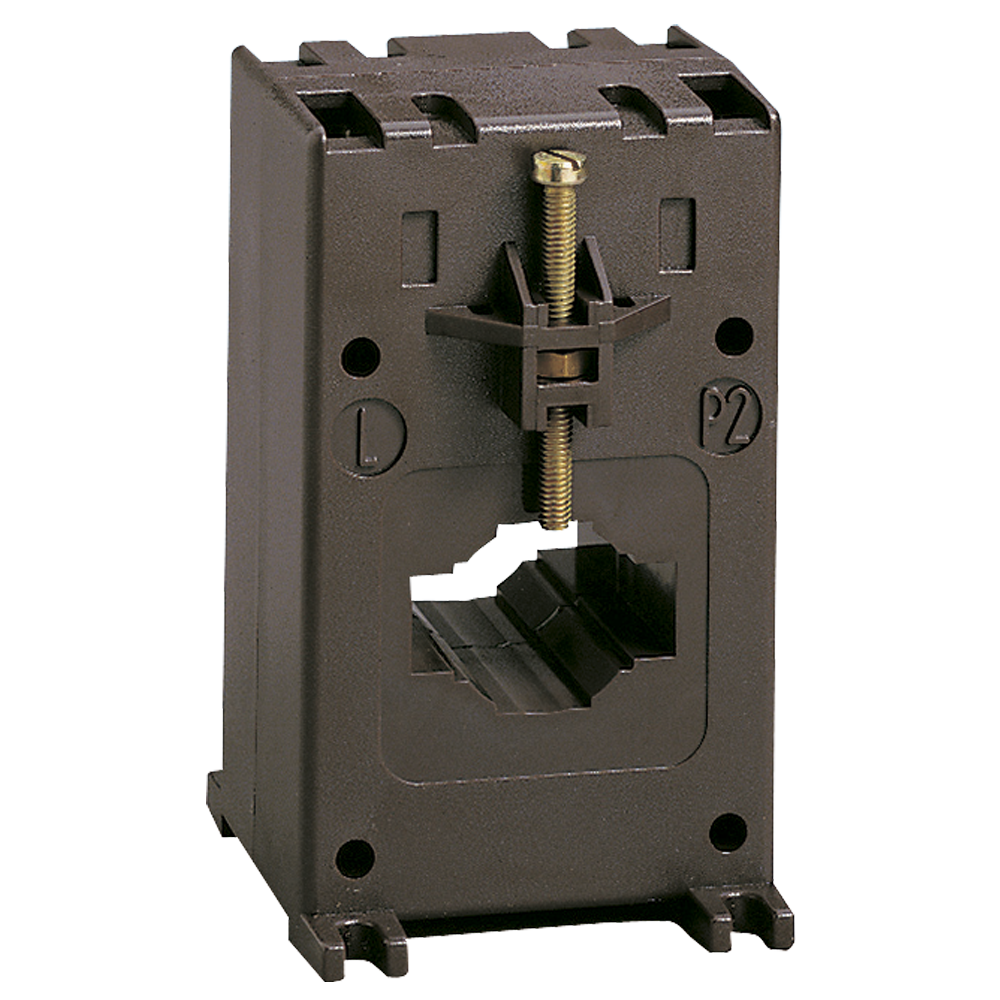

Measuring current transformer with moulded fixing feet/DIN rail clip and integral terminal cover. The TAIE current transformer is supplied with busbar mounting bracket, has a 22mm diameter (31 x 11mm, 21 x 13mm or 11 x 21mm busbar) aperture, and is available with primary currents from 100 to 600A

Additional Information

Manufacturer N/A

Downloads

Files

TAIE Data Sheet TAIE Data Sheet NT562-03
