More Views

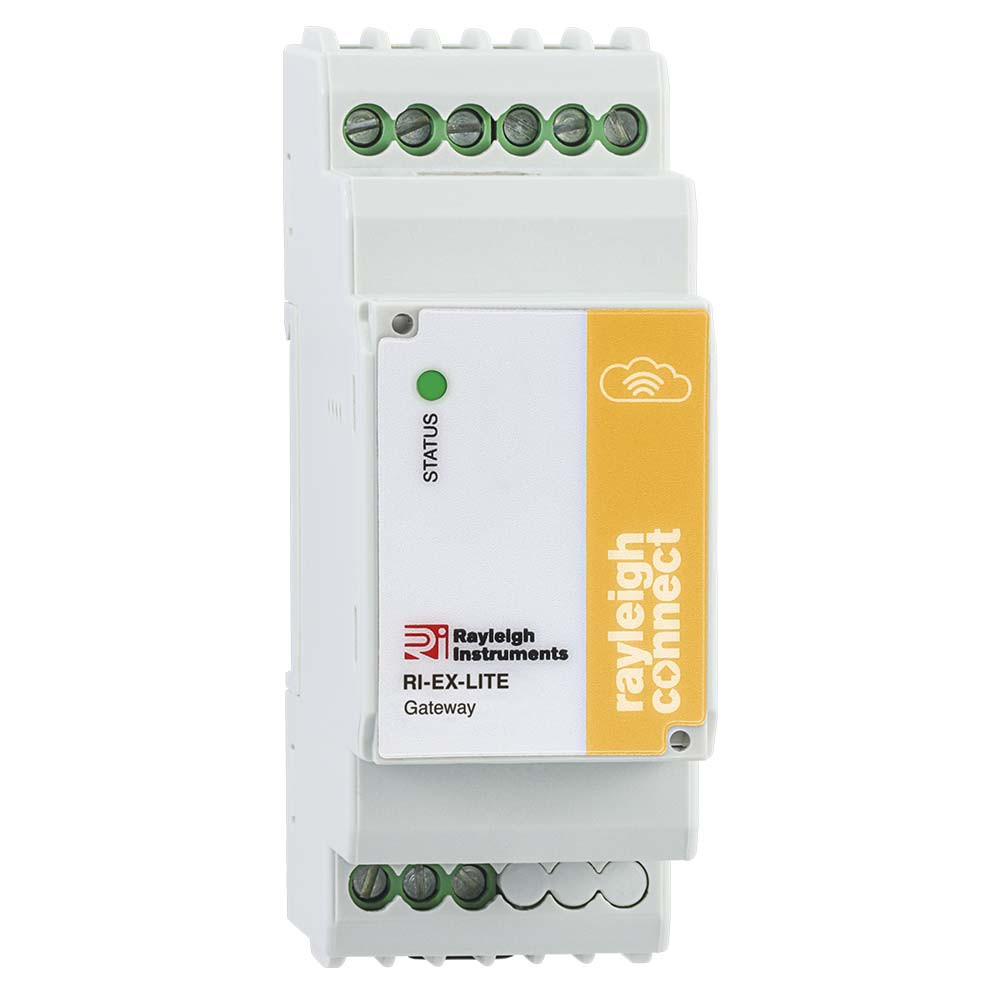

Rayleigh Instruments RI-EX16-LITE Modbus/Ethernet Communication Gateway for rayleighconnect


  • Compact size - 2 module (35mm width) DIN Rail mounting
  • RS485 Modbus RTU TCP master
  • Connect up to 16 x Modbus devices
  • 10/100Mbps Ethernet connection
  • 230V Auxiliary Supply
  • USB-C port for device configuration, diagnostics and firmware update
  • DHCP or Static IP address
  • 1MB Built-in flash memory (8Mbit) for settings and data storage


The RI-EX16-LITE is a robust and easy-to-use DIN rail mounted data acquisition communication gateway.

The RI-EX16-LITE is part of a growing family of gateway devices designed to be used with the rayleighconnect™ cloud-based software platform.

The EX16-LITE supports up to 16 devices connected via Modbus RTU (over RS485 port) and/or Modbus TCP (over RJ45 Ethernet port).

The data from all devices is transmitted to the rayleighconnect™ cloud software platform via the built-in RJ45 Ethernet port to your router. If Modbus TCP devices are required to be connected via the RJ45 Ethernet port then a separate network switch is required.

Additional Information

Manufacturer Rayleigh Instruments


Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
