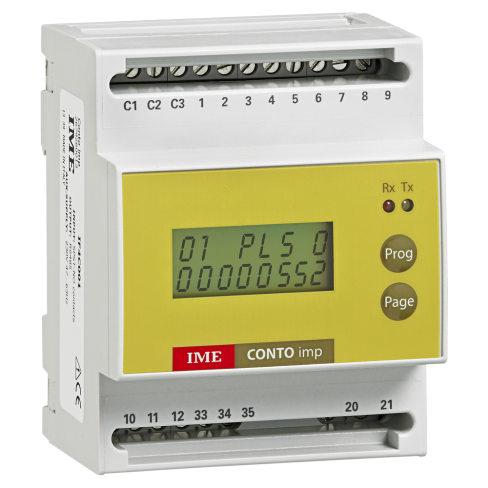

IME IF4C001 Conto Imp Pulse Acquisition 4 Module To RS485 communication

Features

  • Pulse imput coming from energy, gas, water, heat meters, etc
  • 12 pulse inputs SPST - NO contacts (energy, gas, water and heat meters)
  • 12 non resettable independent counting registers (max 9 digits each)
  • 3 different configuration
  • RS485 communication MODBUS/JBUS
  • Up to 255 units may be connected to a bus system
  • Data held in memory in event of power failure

Details

The IF4C001 is a D4 Din rail mounting module designed for use with any device that provides a pulsed signal, such as energy, gas, water and heating meters. Up to 12 devices may be measured in such a way to be communicated to a remote point via RS485 serial link.

Pulse imput coming from energy, gas, water, heat meters, etc



3 programmable input configurations:

PASSIVE
12 contact inputs
Unit and pulse weight
programmable for each input

ACTIVE
6 contact inputs + 6 active inputs
Unit and pulse weight
programmable for each input

SØ(GME ENEL)
1 SØ EN62053-31 inputs
for multi-metering count
6 contact inputs
Unit and pulse weight
programmable for each input
Product Name / Options Price (ex VAT)
IF4C001 Call for Prices
