  • Nason CF High Pressure Switch With Fixed Set Point - 0.69 to 310bar (4500psi)

More Views

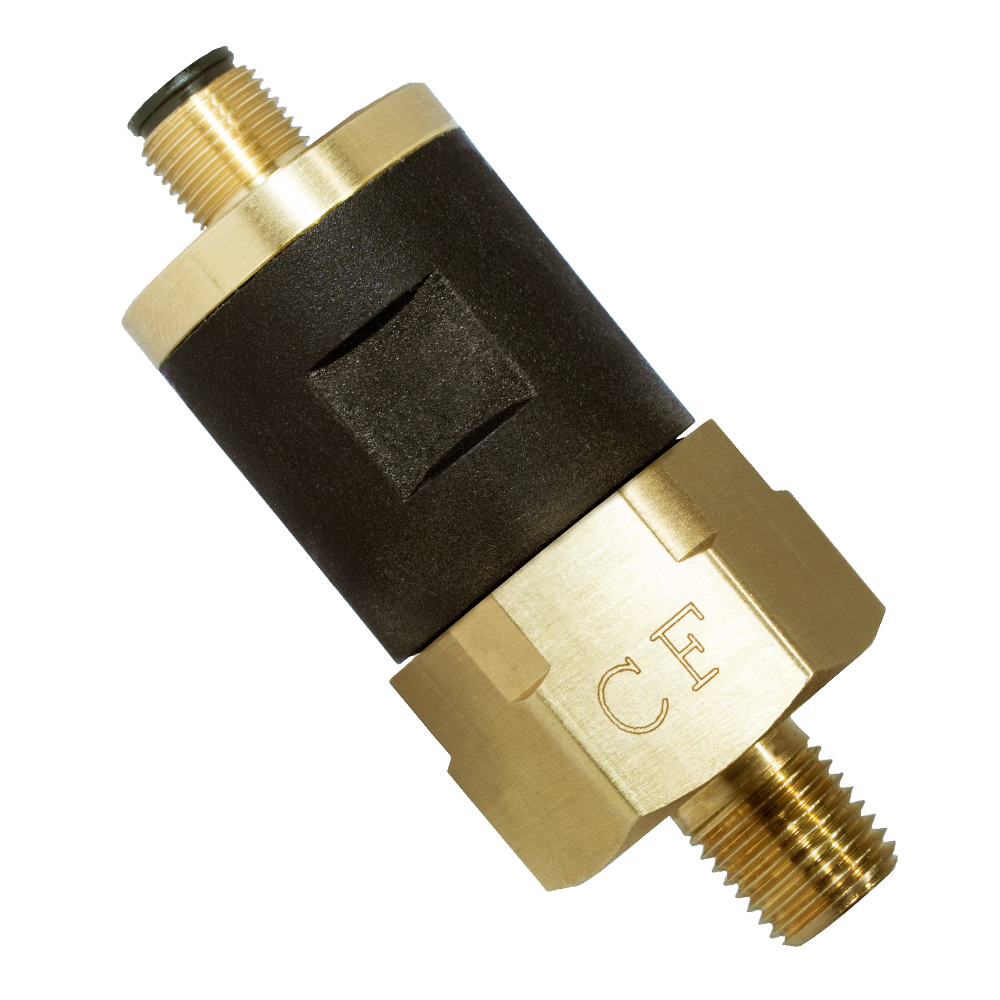

Nason CF High Pressure Switch With Fixed Set Point - 0.69 to 310bar (4500psi)

Features

  • Long life elastomer diaphragm (up to 137bar)
  • Proven sealed piston sensor (over 138bar)
  • High quality snap action switch
  • Field adjustable
  • Easily customised

Details

The CF is a low cost high pressure switch with ranges that can be supplied up to 310bar. The pressure switch is fitted with an elastomer diaphragm for ranges up to 137bar and with a sealed piston for ranges above. A full range of electrical and pressure options are available.

Additional Information

Manufacturer Nason

Downloads

Product Name / Options Price (ex VAT)
To enquire about this product, please contact our Sales Department on 01245 428500 for a quotation using the order codes shown below Call for Prices
