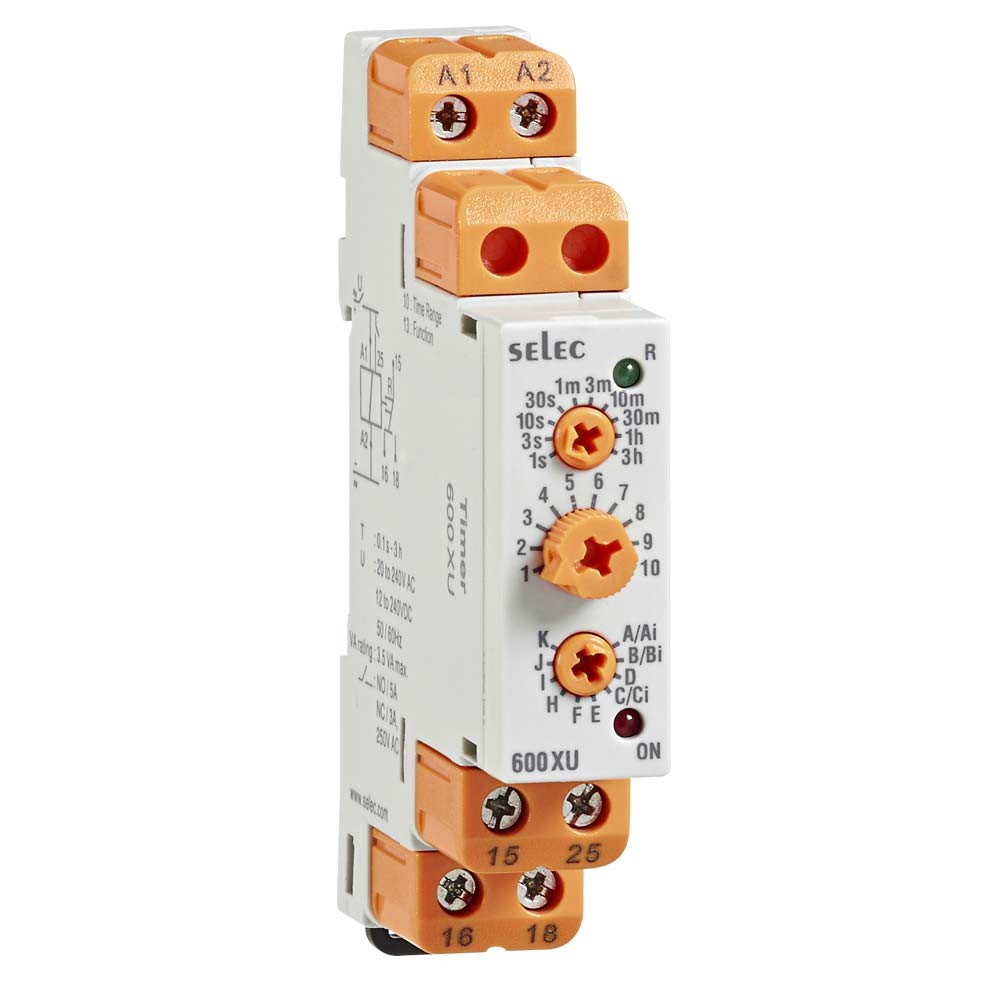

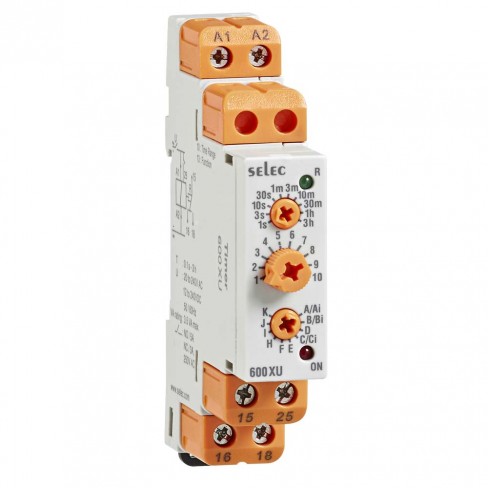

Selec 600XU DIN Rail 17.5 mm Analogue Multifunction Timer


  • 13 Functions
  • 10 Time Ranges
  • Slim, Space Saving Design
  • Din Rail Mount
  • Front knobs for Time Range, Time Scale and Mode Setting


Selec 600UX Multifunction Timers can be used for electrical appliances, control of lights, heating, motors, pumps and fans and have up to 13 Functions and 10 Time Ranges to meet your customer demands.

Relay Contact 1 C/O SPDT
Range 0.1-1 sec/min/hr, 0.3-3 sec/min/hr, 1-10 sec/min, 3-30 sec/min
Operating Modes On Delay, Interval, Cyclic equal OFF first, Cyclic equal ON first, Pulse output (50msec), Delay on Break, Delay on Make/ Delay on Break, Interval after Break, Single shot, Retriggerable single shot, Latching relay, Delay on make with totalise, Interval with totalise
Accuracy Setting : ± 5% of F.S., Repeat : ± 0.5% (Full Scale)
Supply Voltage 20 to 240V AC, 12 to 240V DC
Size 17.5mm
Mounting Type DIN Rail Mount
Certification CE, UL

Additional Information

Manufacturer Selec
Product Name / Options Price (ex VAT)
Call our Sales Team for Model Options and Prices - 01245 428500 Call for Prices
