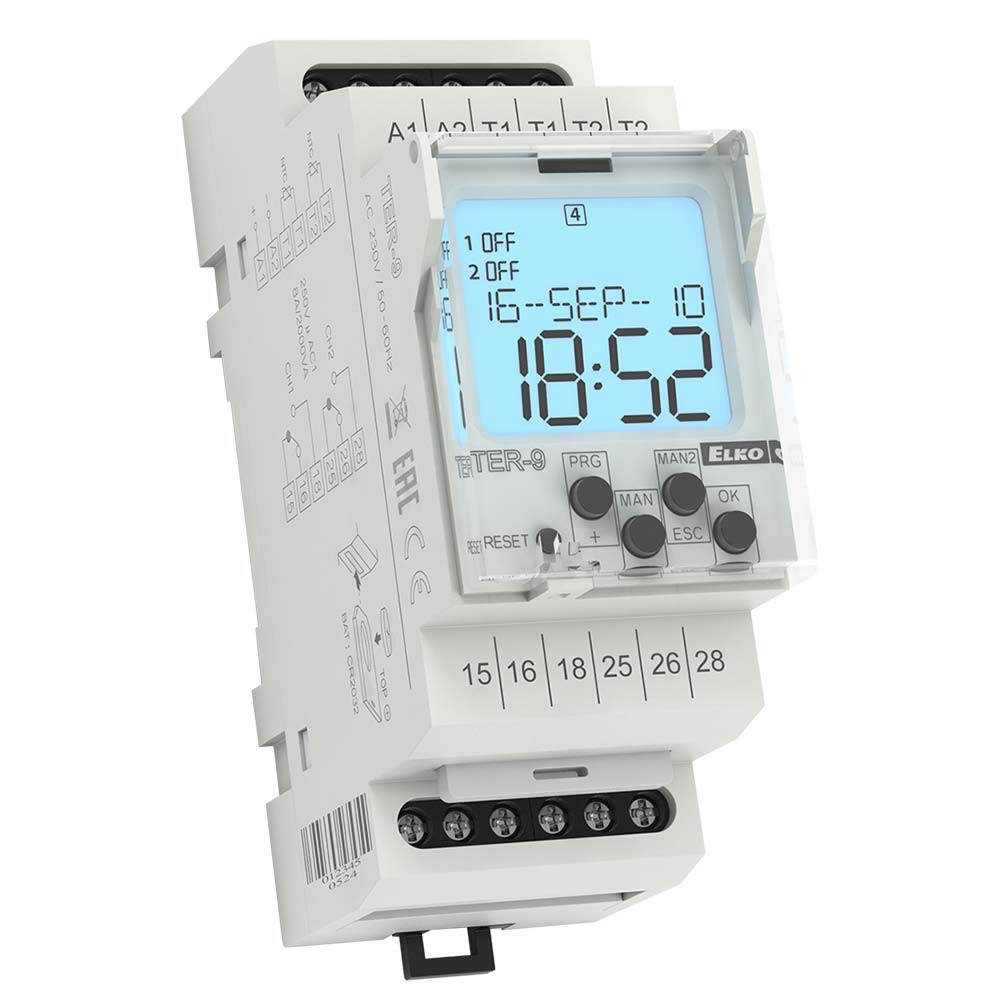

Elko TER-9 Digital Thermostat with 6 functions and in-built time switch clock

Features

  • Digital thermostat with 6 functions and built-in time switch clock with day, week and year program.
  • You can also limit temperature functions and courses this way in real time.
  • Complex control of home and water heating, solar heating, etc.
  • Two thermostats in one, two temperature inputs, two outputs with dry contact
  • Maximum universal and variable thermostat including all ordinary thermostat functions
  • Functions: two independent thermostats, dependent thermostat, diff erential thermostat, two level thermostat, zone-based thermostat, dead zone thermostat
  • Program setting of output functions, calibration of sensors according to reference temperature (off set)
  • The thermostat is subject to the digital clock programs
  • Wide operating range of temperature settings, the possibility of measuring in 0 C and 0 F
  • Clear display of set and measured data on a backlit LCD
  • Power supply: AC 230V or 24V AC/DC (based on type of device)
  • The time switch clock has a battery backup, which retains data in case of a power outage (reserve backup time - up to 3 years)
  • Easy replacement of the backup battery through the plug-in module, no disassembling is required
  • Output contact 1x changeover/SPDT 8 A / 250 V AC1 for each output
  • 2-MODULE, DIN rail mounting

Details

2 temperature inputs, 2 outputs 8A changeover/ SPDT, 6 functions, in-built time switch clock Digital thermostat with 6 functions and in-built time switch clock, with daily and weekly program ( as SHT-1/2). Thermo functions can be managed also in real time Complex control of heating and water heating in a house, solar heating.... 2 thermostats in one, 2 temperature inputs, 2 output contact closures Universal and variable thermostat containing all common thermostatic functions Functions: two independent thermostats, 1x dependent, diff erential thermostat, 2-stage thermostat, thermostat with dead zone, heating functions Short circuit and monitor disconnect function Program setting of output function, calibration of sensors according to reference temperature ( off set) Digital switch clock overrides thermostat Memory for the most often used temperatures Zero error when value setting User friendly display of set and measured data, illuminated LCD by backlight Supply galvanically separated AC 230 V or AC/DC 24 V galvanically unseparated Output contact 1x changeover/SPDT 8 A / 250 V AC1 for each output 2-MODULE, DIN rail mounting - See more at: http://www.elkoep.com/products/relay-modular-electronic-devices/thermostats/multifunction/multifunction-digital-thermostat-ter-9-378/#sthash.P4FmGpav.dpuf
Product Name / Options Price (ex VAT)
Elko TER-9 Multifunction digital thermostat AC/DC 24V Call for Prices

Elko TER-9 Multifunction digital thermostat AC 230 V (AC 50-60 Hz) Call for Prices
