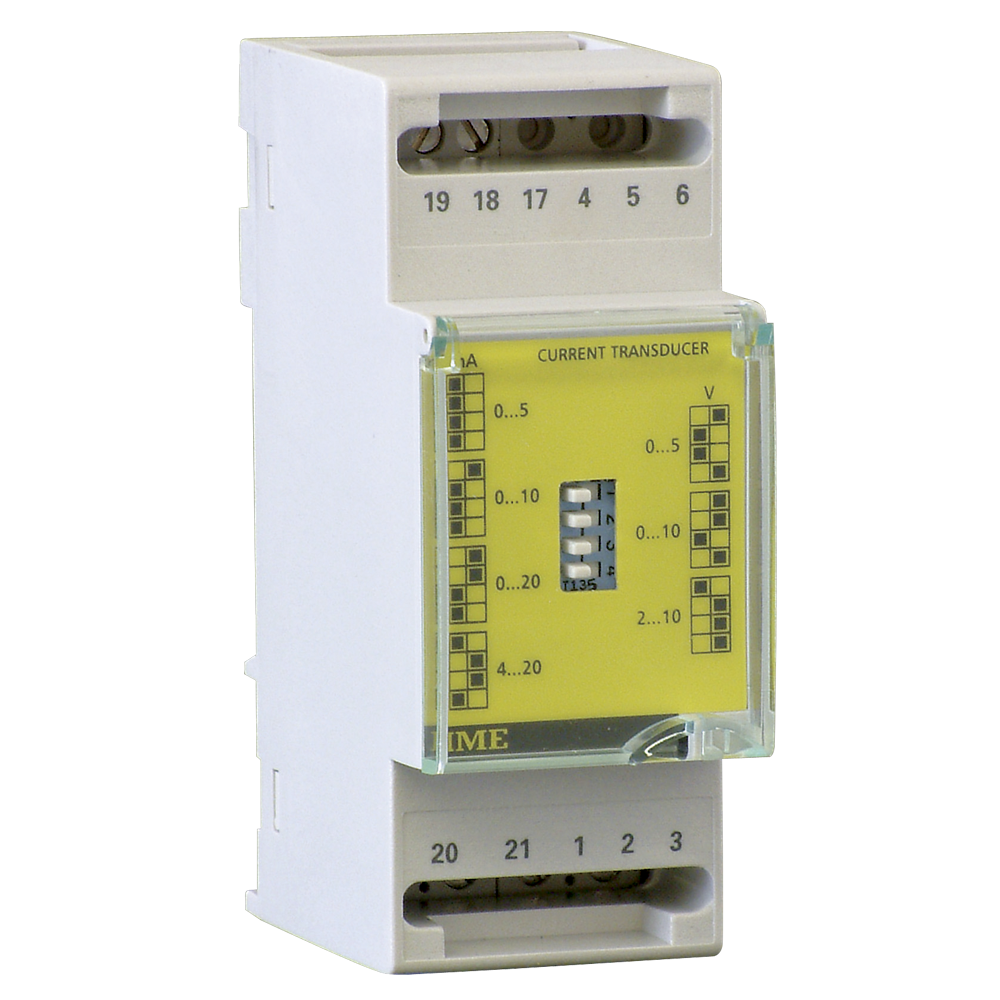

IME TM3I Tema I4 AC Alternating Current Isolated Transducers - RMS

Features

  • Alternating current transducer
  • Choice of supply voltages
  • Single phase AC
  • Accuracy 0.5 (20....120%.In)
  • Current input 1, 1.2, 5 or 6A
  • Dip switch programmable current or voltage analogue output
  • Available with 230Vac, 115Vac and 20-150Vdc auxiliary supply

Details

To measure average value, calibration according RMS value Input on CT/1A - CT/5A Output selectable on field (7 ranges)

AUXILIARY SUPPLY
  • Rated value Uaux ac: 48 - 115 – 230 and 240V
  • Other value on request
  • Tolerance: 0,9…1,1Uaux – 40...60V (Uaux 48V)
  • Rated frequency faux: 50Hz
  • Tolerance: 47…63Hz
  • Rated burden: ≤ 3VA
  • Rated value Uaux dc: 20…150Vdc – 150…250Vdc
  • Rated burden: ≤ 1,5W
  • Protected against incorrect polarity
OUTPUT
  • Type: unidirectional, real or live zero for variable output load
  • Accuracy (EN 60688): class 0,5
  • Ripple content (EN 60688): ≤ 1%
  • Response time (EN 60688): ≤ 300 ms
  • Rated value: selectable by dip switch (7 ranges)
  • Current rated values: 0…5 - 0…10 - 0…20mA - 4...20mA
  • Compliance voltage: 15V
  • Output load: 750W (20mA) - 1,5kW (10mA) - 3kW (5mA)
  • Voltage rated values: 0…5 - 0…10 - 2…10V
  • Output load: ≥ 5kW
HOUSING
  • Dimensions: 2 module DIN 43880
  • Connections: screw terminals for cable up to 4mm2
  • Mounting: snap-on 35mm rail
  • Rail type: top hat TH35-15 (EN60715)
  • Housing material: self-extinguishing makrolon
  • Protection degree (EN 60529): IP40 (front frame), IP20 (terminals)
  • Weight: 200 grams

DIMENSIONS

Product Name / Options Price (ex VAT)
IME TM3I Transducer TM3I210 INPUT 1A, AUX. SUPPLY 115V ca / ac Call for Prices

IME TM3I Transducer TM3I230 INPUT 5A, AUX. SUPPLY 115V ca / ac Call for Prices

IME TM3I Transducer TM3I310 INPUT 1A, AUX. SUPPLY 230 - 240V ca / ac Call for Prices

IME TM3I Transducer TM3I330 INPUT 5A, AUX. SUPPLY 230 - 240V ca / ac Call for Prices

IME TM3I Transducer TM3IH10 INPUT 1A, AUX. SUPPLY 20...150V cc / dc Call for Prices

IME TM3I Transducer TM3IH30 INPUT 5A, AUX. SUPPLY 20...150V cc / dc Call for Prices

IME TM3I Transducer TM3IL30 INPUT 5A, AUX. SUPPLY 150...250V cc / dc Call for Prices

IME TM3I Transducer TM3IL10 INPUT 1A, AUX. SUPPLY 150...250V cc / dc Call for Prices
