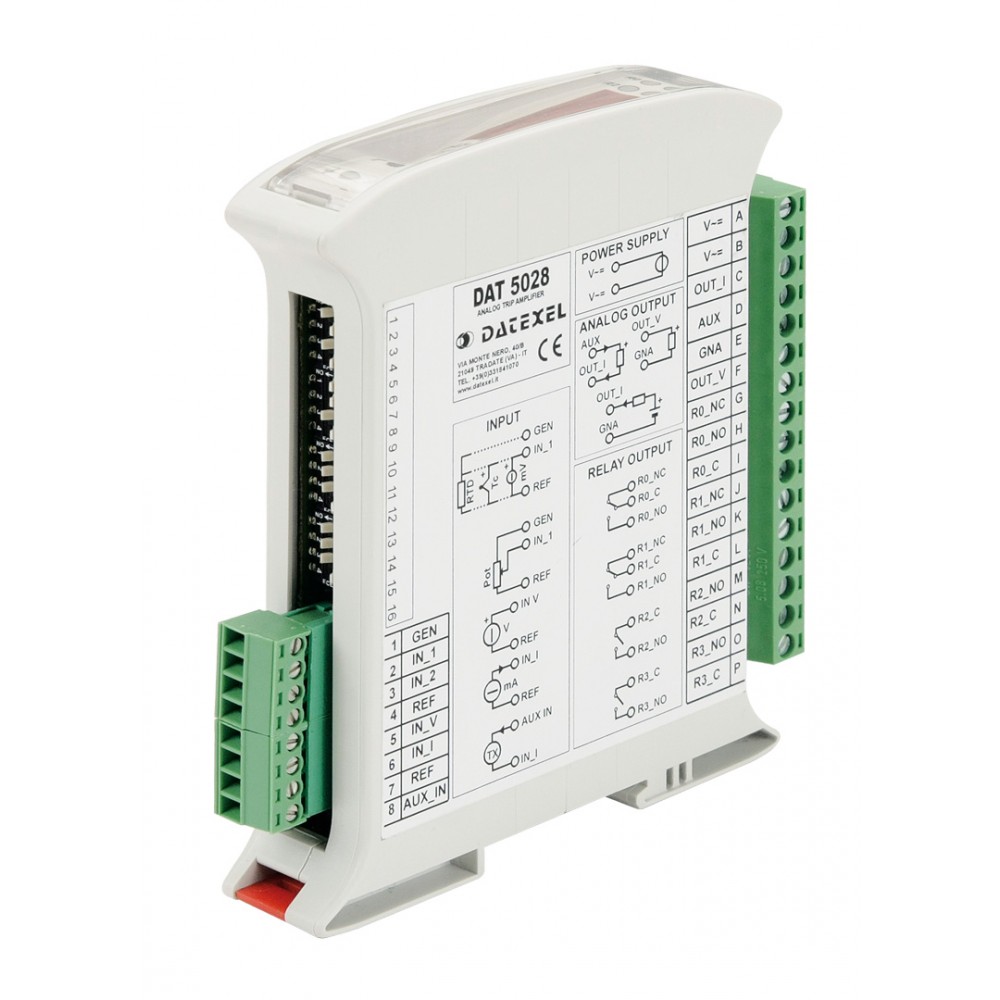

Datexel DAT 5028-4 Universal Analog Input Configurable Trip Amplifier with display

Features

  • Universal Analog Input
  • Relay Outputs: 2 SPDT + 2 SPST (version with 4 thresholds)
  • Relay Outputs: 2 SPDT (version with 2 thresholds)
  • 1 V/mA Analog Output for signal transmission
  • 1500 Vca galvanic isolation on all ways
  • High Accuracy
  • EMC compliance – CE Mark
  • DIN rail suitable mounting (EN-50022)

Details

The DAT 5028 device is able to acquire RTD or Tc sensors, mV, V or mA input signals connected to the universal analog input. By means of push-button and 4-digit display on the front panel, four different trip alarms are configurable. Each alarm threshold commands an output relay. Input signal can be retransmitted on the analog output in a Voltage or Current signal, configurable by means of dip-switch on the side of the device. By means of an internal 16 bit converter, the device guarantees high accuracy and a stable measure versus time and temperature. The 1500 Vac isolation on all ways removes eventual ground-loop effects, allowing the use of the device even in the heavy environmental conditions.

Universal analog input (Voltage, Current, Thermocouple, RTD, Resistance) trip amplifiet with display, 4 relays outputs (2 SPDT + 2 SPST), 1 analog input V/mA for signal retransmission, power supply 12…30 Vdc, galvanic isolation 1500 Vca among the ways.

Additional Information

Manufacturer Datexel

Downloads

Product Name / Options Price (ex VAT)
Datexel DAT 5028-4 Universal analog input (Voltage, Current, Thermocouple, RTD, Resistance) trip amplifiet with display Call for Prices
