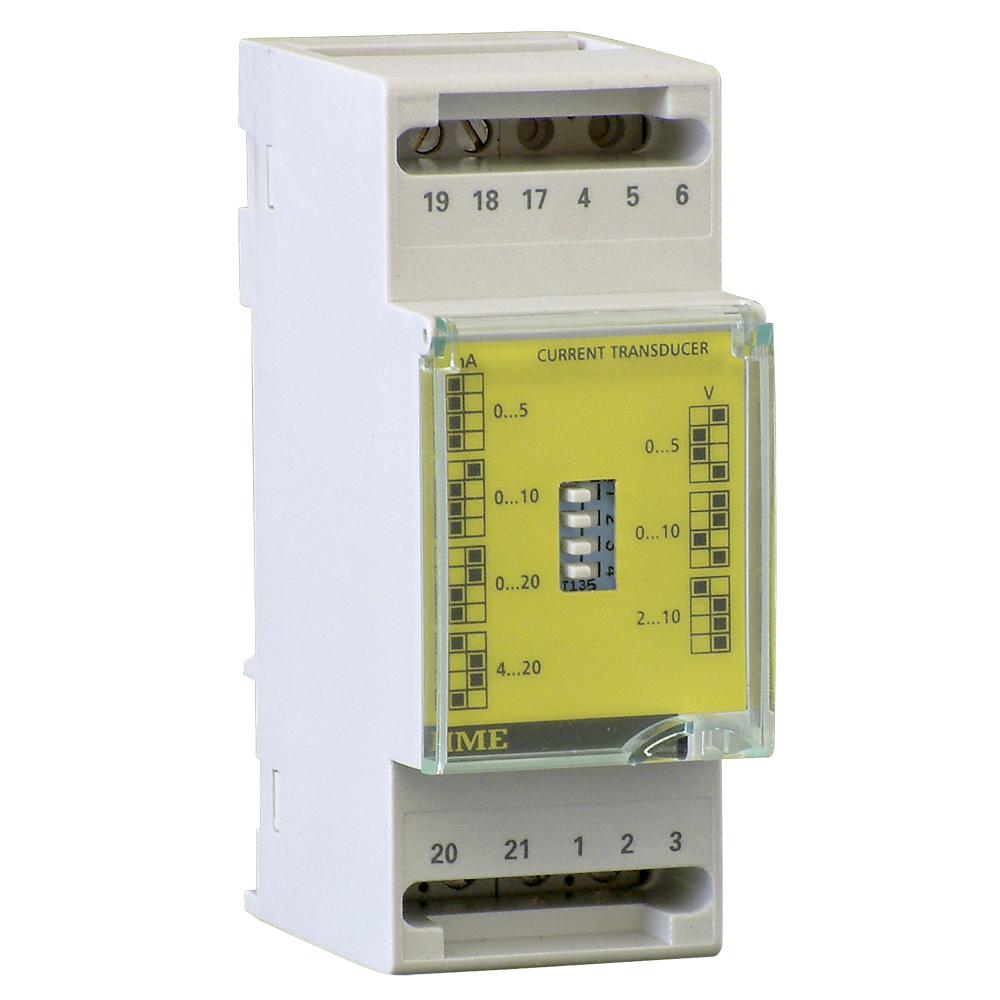

IME Tema l4e TM4I AC Alternating Current Isolated Transducers - True RMS

Features

  • Alternating current transducer
  • Single phase AC
  • True R.M.S measurement
  • Accuracy 0.5 (20....120%.In)
  • Current input 1, 1.2, 5 or 6A
  • Dip switch programmable current or voltage analogue output
  • Available with 230Vac, 115Vac and 20-150Vdc auxiliary supply

Details

A DIN rail mounting electronic transducer to measure single phase true RMS alternating current from either a 1A or 5A circuit and provide a proportional DC analogue output signal. The TM4I is available with 230Vac, 115Vac and 20-150Vdc auxiliary supply.

To measure TRUE RMS value
Input on CT/1A - CT/5A
Output selectable on field (7 ranges)

Selectable Values
0…5/10/20mA - 4…20mA
0…5/10V - 2…10V

INPUT
  • Current rating In: 1 - 1,2 - 5 - 6A
  • Frequency rating fn: 50 - 400Hz
  • Excessive input of short duration (EN 60688): 20In/1s
  • Continuous excessive input: 3In
  • Rated burden: ≤ 0,2VA
AUXILIARY SUPPLY
  • Rated value Uaux ac: 48 - 115 – 230 and 240V
  • Other value on request
  • Tolerance: 0,9…1,1Uaux – 40...60V (Uaux 48V)
  • Rated frequency faux: 50Hz
  • Tolerance: 47…63Hz
  • Rated burden: ≤ 3VA
  • Rated value Uaux dc: 20…150Vdc – 150…250Vdc
  • Rated burden: ≤ 1,5W
  • Protected against incorrect polarity
Product Name / Options Price (ex VAT)
IME Tema l4e TM4I210 AC Transducer Input 1A, Aux Supply 115V ca / ac Call for Prices

IME Tema l4e TM4I230 AC Transducer Input 5A, Aux Supply 115V ca / ac Call for Prices

IME Tema l4e TM4I310 AC Transducer Input 1A, Aux Supply 230 - 240V ca / ac Call for Prices

IME Tema l4e TM4I330 AC Transducer Input 5A, Aux Supply 230 - 240V ca / ac Call for Prices

TM4IH10 (1A 20-150Vdc/48VAC) Call for Prices

TM4IH30 (5A 20-150Vdc/40-60Vac) Call for Prices
