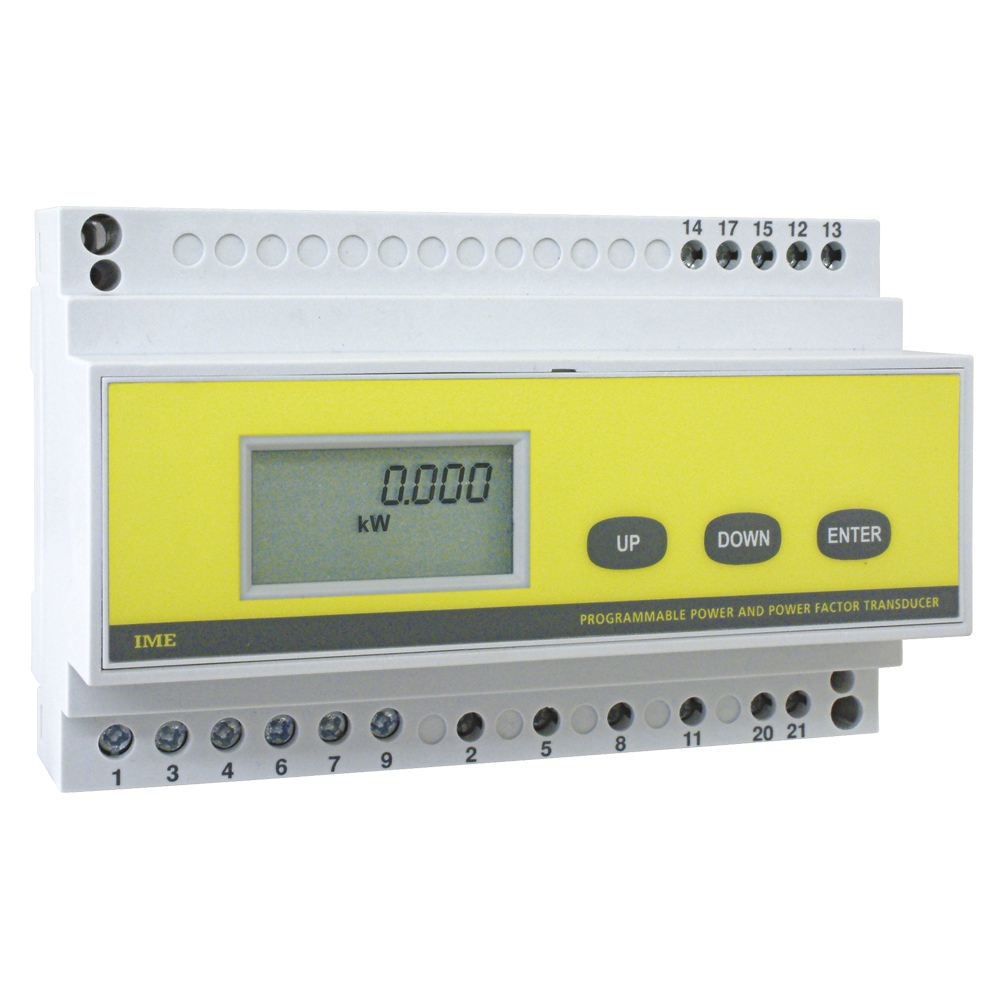

IME Tema FP TM8P Programmable Isolated Transducer - True R.M.S. measurements

Features

  • Fully programmable transducer
  • Single or 3-phase, balanced or unbalanced load or via voltage transformer
  • Current input via current transformer -/1A or -/5A
  • True R.M.S. measurements
  • 80…500Vac phase/phase
  • 50…300Vac single phase measured voltage
  • Programmable measured quantity - active power - reactive power - apparent power - power factor - phase angle - power demand – frequency
  • Analogue outputs 0…5mA, 0…10mA, 0…20mA, 4…20mA, 0…10V or 1…5Vdc
  • Accuracy class 0.5 (class 0.2 frequency)
  • LCD indicator for programming and display
  • All parameters programmable from front cover 3 keys
  • 8 module DIN rail mounting
  • Available with 230Vac, 115Vac and 20-150Vdc auxiliary supply

Details

The IME Tema FP TM8P is a programmable transducer that can be used to measure apparent reactive - active power, power factor, phase angle, average power and frequency.

Just one meter for single-phase and 3-phase connections
Wholly field programmable
Direct three-phase voltage input up to 500V and through V.T. 100 and 115V
Current input C.T/5A or /1A
True R.M.S. measurements

AUXILIARY SUPPLY
  • Rated value Uaux ac: 115 – 230 and 240V
  • Tolerance: 0,85…1,1Uaux
  • Rated frequency faux: 50Hz
  • Tolerance: 47…63Hz
  • Rated burden: ≤ 3VA
  • Rated value Uaux dc: 20…150Vdc -150...250Vdc
  • Rated burden: ≤ 3W
  • Protected against incorrect polarity
OUTPUT
  • Associable quantities: see table
  • Type: unidirectional and reversible, real or live zero for variable output load
  • Accuracy (EN 60688): cl.0,5 (power) - cl.1 (power factor) - ± 0,2Hz (frequency)
  • Ripple content (EN 60688): ≤ 1%
  • Response time (EN 60688): ≤ 300ms
  • Current rated values: 0...5 - 5...0...5 - 0...10 - 10...0...10 - 0...20 - 20...0...20- 4...20mA
  • Compliance voltage: 16,5V
  • Output load: ≤ 750Ω (20mA) - ≤ 1,5kΩ (10mA) - ≤ 3kΩ (5mA)
HOUSING
  • Dimensions: 8 module DIN 43880
  • Connections: screw terminals for cable up to 4mm 2 (ammetric 8mm )
  • Mounting: snap-on 35mm rail
  • Rail type: top hat TH35-15 (EN60715)
  • Housing material: self-extinguishing polycarbonate
  • Protection degree (EN 60529): Ip 52 (front frame); Ip 20 (terminals)
  • Weight: 480 grams
DIMENSIONS
Product Name / Options Price (ex VAT)
IME TM8P02110 TM8P Tema Transducer 1A 80...500V - 115V ca / ac Call for Prices

IME TM8P02120 TM8P Tema Transducer 5A 80...500V - 115V ca / ac Call for Prices

IME TM8P03110 TM8P Tema Transducer 1A 80...500V - 230 - 240V ca / ac Call for Prices

IME TM8P03120 TM8P Tema Transducer 5A 80...500V - 230 - 240V ca / ac Call for Prices

IME TM8P0H110 TM8P Tema Transducer 1A 80...500V - 20...150V cc / dc Call for Prices

IME TM8P0H120 TM8P Tema Transducer 5A 80...500V - 20...150V cc / dc Call for Prices

IME TM8P0L120 TM8P Tema Transducer 5A 80...500V - 150...250V cc / dc Call for Prices

IME TM8P0L110 TM8P Tema Transducer 1A 80...500V - 150...250V cc / dc Call for Prices
