Comitronic-BTI EPINUS 2K 72 Coded Safety Switch With 2Kg Holding Force 316L Stainless Steel Version

Features

Details

EPINUS 2K72 is an electronic coded safety switch using our ACOTOM process, designed to detect the opening of a guard door.

The latching force of 2kgs allows the device to keep the guard doors magnetically closed.

Stainless steel 316L housing material is used to comply with hygiene standards in the food industry. When the transmitter faces the receiver, both static safety contacts close and the auxiliary contact opens. When the transmitter is removed the safety contacts open and the auxiliary contact is powered. To reach safety level, EPINUS 2K72 must wired to the AWAX safety module.

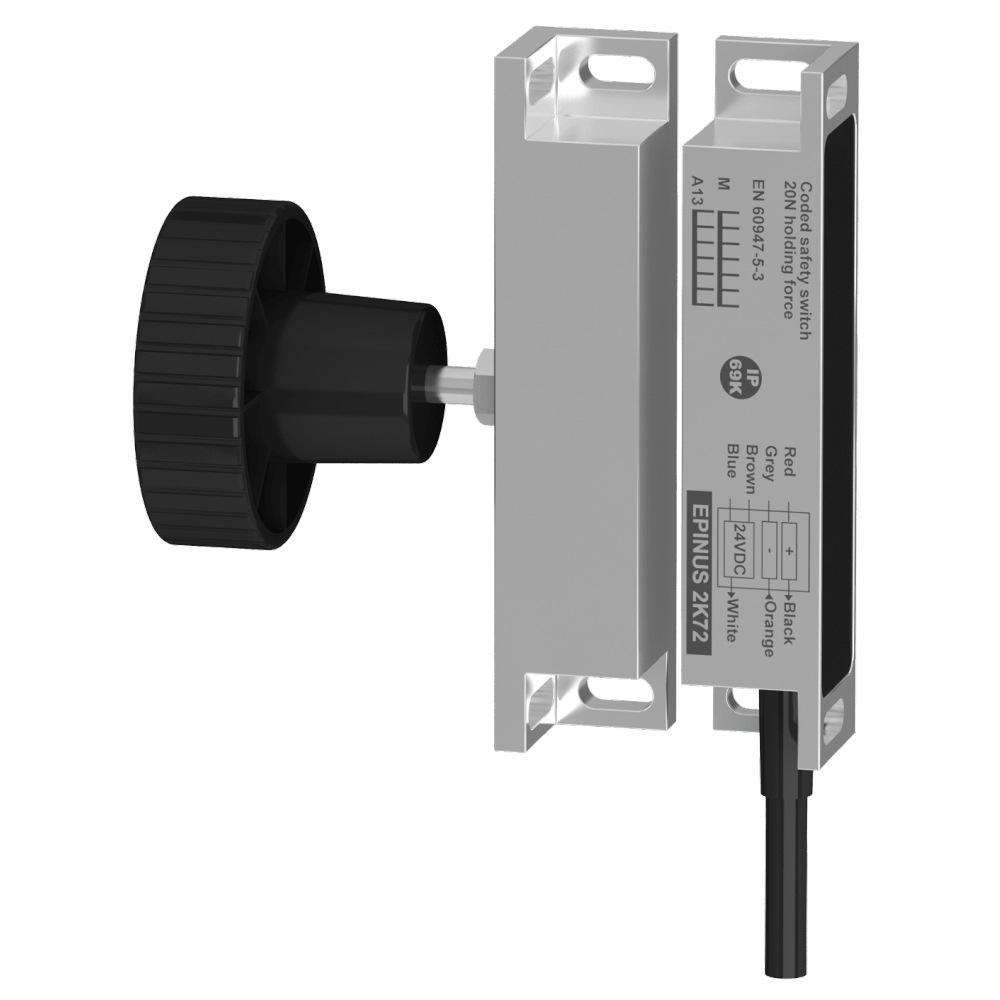

A handle designed to aid opening and closing of the door (mounted on the transmitter) is available as an option.
Product Name / Options Price (ex VAT)
Comitronic-BTI EPINUS2K72/3M CAT3 in serial. Cat 4 alone on AWAX 316L Stainless Steel Version with 3m Cable Call for Prices

Comitronic-BTI EPINUS2K72/6M CAT3 in serial. Cat 4 alone on AWAX 316L Stainless Steel Version with 6m Cable Call for Prices

Comitronic-BTI EPINUS2K72/12M CAT3 in serial. Cat 4 alone on AWAX 316L Stainless Steel Version with 12m Cable Call for Prices

Comitronic-BTI EPINUS2K72/MKT CAT3 in serial. Cat 4 alone on AWAX, 2NO+1NF, 50cm cable + M12 connector Call for Prices
