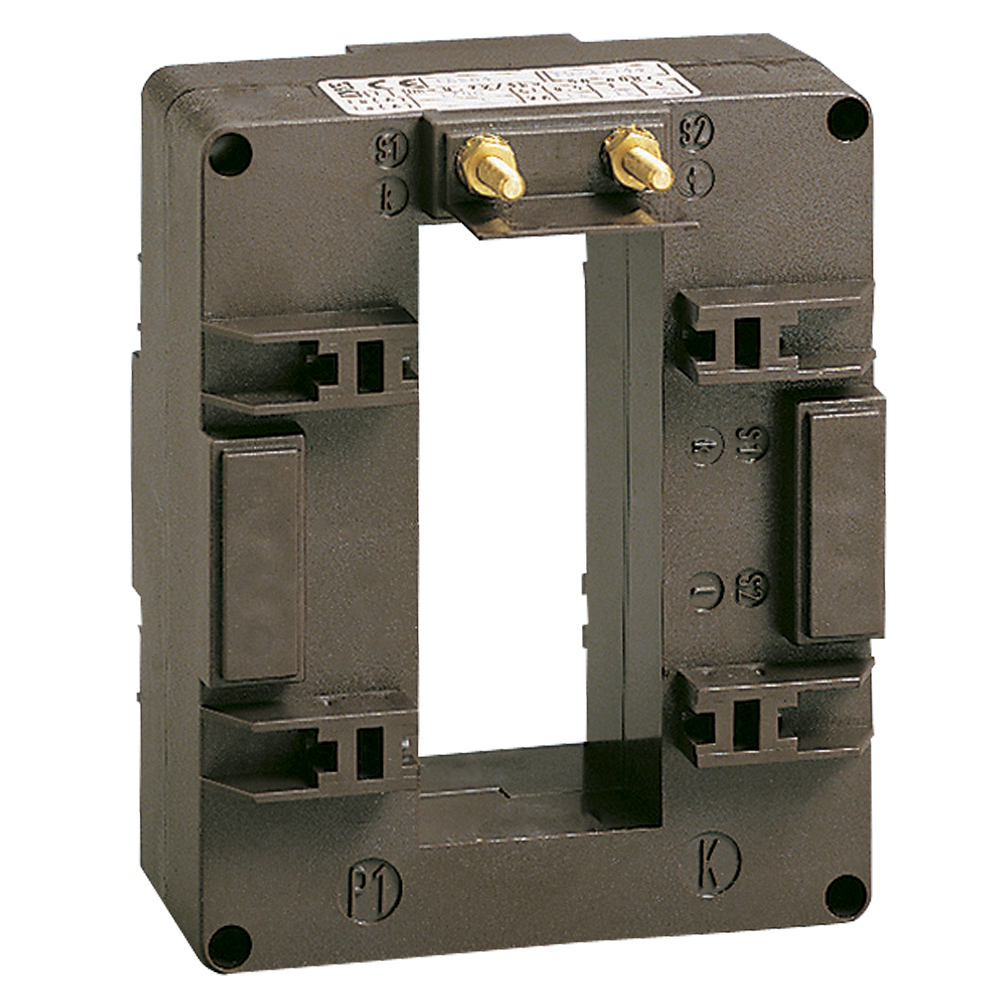

IME TASO TAS84 Single Phase Measuring Current Transformer - Terminals On Vertical Bar

Features

  • Ranges: 300 to 2500A (1A or 5A Secondary)
  • Busbar window 84 x 34mm
  • Accuracy class: cl.0,5 - 1
  • Rated burden 2...30VA
  • Supplied with busbar mounting clamps
  • Secondary pillar screw terminals
  • Optional sealable terminal cover (ATACOP04)
  • Optional spacer for 60mm bar (ATADIS01)
  • Weight 700g

Details

Stadium type measuring current transformer supplied with busbar mounting bracket. The TASO current transformer has an 84 x 34mm aperture and is available with primary currents from 300 to 2500A.



HOUSING
  • Housing material: self extinguishing polycarbonate
  • Protection degree (EN/IEC 60529): IP40 housing, IP00 terminals (IP20 with sealable terminal cover)
  • Option: sealable terminal cover
  • Weight: 750 grams (Max.)

CONNECTIONS
  • Primary winding: passing bus bar
  • Max. tightening torque for passing primary bar fixing screws: 0,2Nm
  • Secondary winding: tightening by nut M4
  • Connections label: primary winding P1(K) – P2(L), secondary winding s1(k) – s2(l)

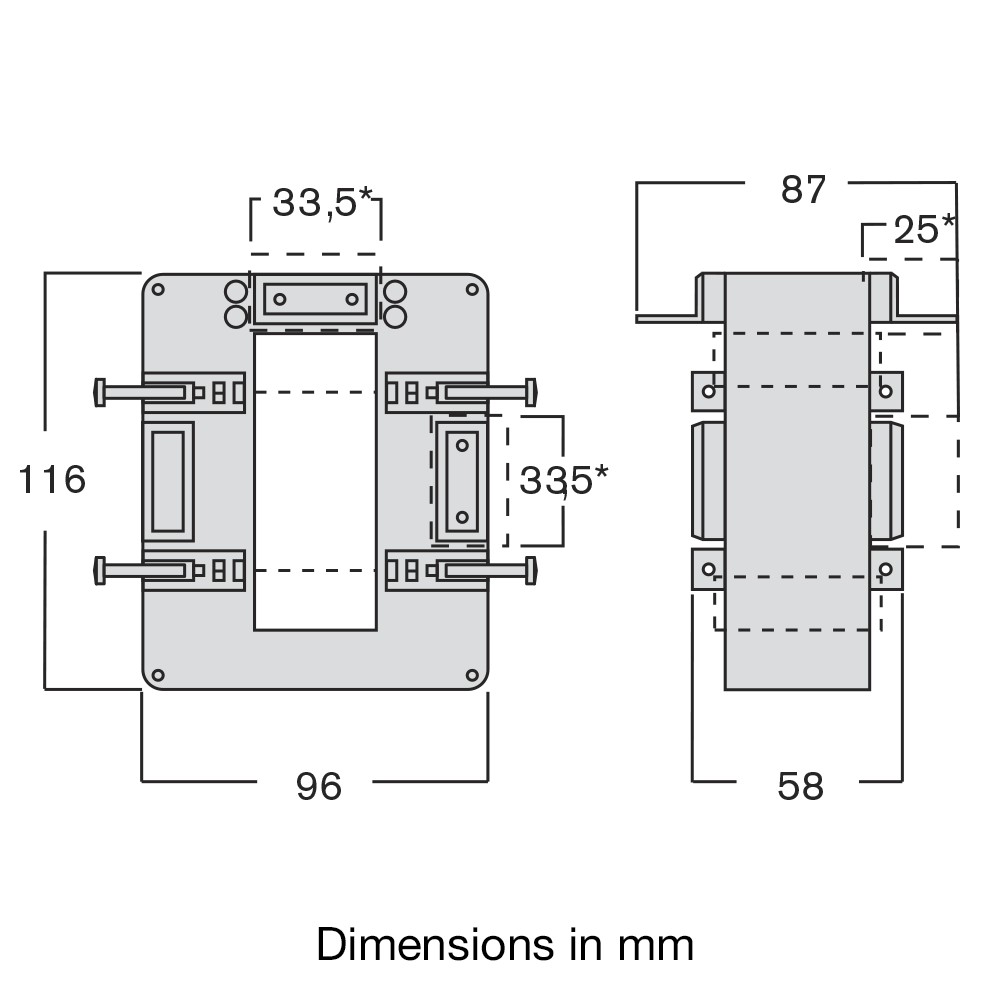

DIMENSIONS

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
TASO50C400 (400/5A) Call for Prices

TASO50C500 (500/5A) Call for Prices

TASO50C600 (600/5A) Call for Prices

TASO50C700 (700/5A) Call for Prices

TASO50C800 (800/5A) Call for Prices

TASO50D100 (1000/5A) Call for Prices

TASO50D120 (1200/5A) Call for Prices

TASO50D125 (1250/5A) Call for Prices

TASO50D150 (1500/5A) Call for Prices

TASO50D160 (1600/5A) Call for Prices

TASO50D200 (2000/5A) Call for Prices

TASO50D250 (2500/5A) Call for Prices

TASO10C300 (300/1A) Call for Prices

TASO10C600 (600/1A) Call for Prices

TASO10C800 (800/1A) Call for Prices

TASO10D100 (1000/1A) Call for Prices

TASO10D120 (1200/1A) Call for Prices

TASO10D150 (1500/1A) Call for Prices

TASO10D160 (1600/1A) Call for Prices

TASO10D200 (2000/1A) Call for Prices

TASO10D250 (2500/1A) Call for Prices
