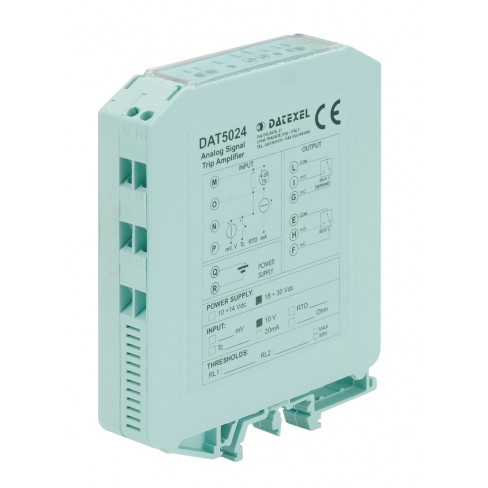

Datexel DAT 5024/V1 Din Rail Configurable Trip Amplifier


  • Available analog inputs : RTD, TC, Voltage, Resistance and Current
  • Two independent threshold programmable as both high alarm or one high and one low alarm
  • Galvanic isolated among the three ways
  • Trip level and hysteresis adjustable by potentiometer
  • Delay time adjustable by potentiometer up to 25 sec.
  • Two relays SPDT 250Vac, 2A
  • High accuracy
  • EMC compliant – CE mark
  • Suitable for DIN rail mounting (EN-50022 and EN50035)


The converter DAT 5024 is able to accept on its input a wide range of normalised voltage signals, normalised current signals coming from both active and passive current loop, signals coming from RTDs, Thermocouples and resistance sensors. The input type and the input range are fixed: refer to the section “Technical Specifications”, table “Input type” to order the device. The Threshold 1 is programmed as high alarm, while, by dip-switches, it is possible to set the Threshold 2 either as high or low alarm. The trip level of each threshold can be adjusted by the potentiometers and checked by the test-points located on the front of the device.It is possible to adjust by potentiometers also the values of the hysteresis level and delay time.The isolation between input and power supply is 2000 Vac.The isolation between input and contacts of relays is 2000 Vac.The isolation between power supply and contacts of relays is 1500 Vac.

The isolations eliminate the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications. The DAT 5024 is in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility.It is housed in a plastic enclosure of 20.5 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.

  • Din rail trip amplifier 1 relay SPDT 250Vac 2A output.
  • Input : V, mA.
  • Power supply 18...32Vdc.
  • Reverse polarity protection 60Vdc max.
  • Trip Amplifier value : Switable from 2 to 98 % f.s.
  • Delay : Switable to 25 sec.
  • Galvanic Insulation : Power supply // input : 2000Vac, 50Hz., 1 min. Input // Relays contact : 2000Vac, 50Hz., 1 min. Power supply // Relays contact : 1500Vac, 50Hz., 1 min.

Additional Information

Manufacturer Datexel


Product Name / Options Price (ex VAT)
Datexel DAT 5024/V1 Din rail trip amplifier 1 relay SPDT 250Vac 2A output Call for Prices
