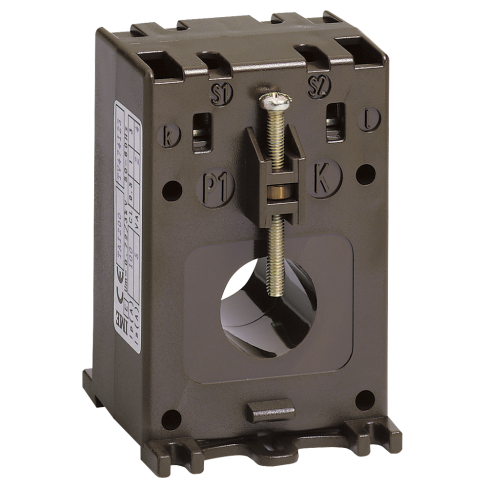

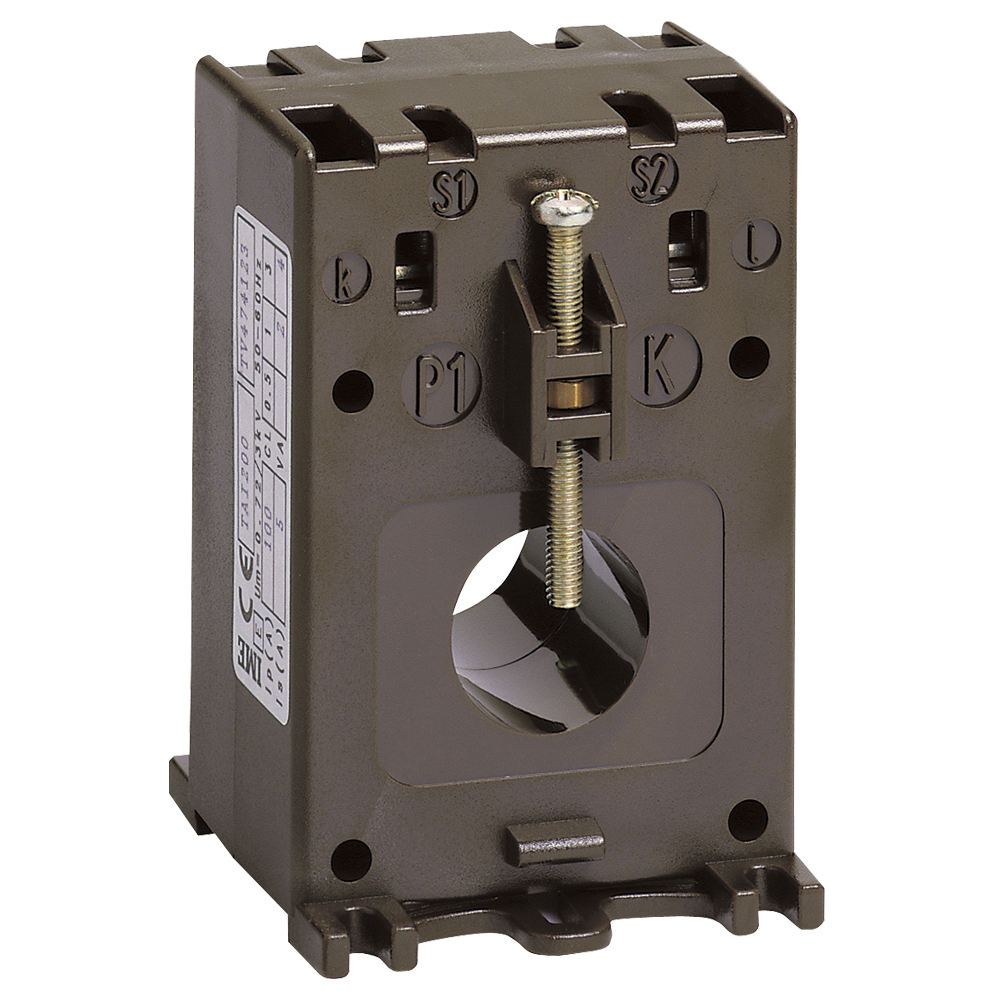

IME TAI200 TAIA Solid Core Single Phase Measuring Current Transformer

Features

  • Ranges: 50 to 250A (1A or 5A Secondary)
  • Busbar window 20 x 5mm
  • 22mm dia cable aperture
  • Moulded terminal cover
  • Moulded DIN rail clip/mounting feet
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Weight 290g
  • Optional sealable terminal cover (ATACOP01)

Details

A primary winding solid core measuring current transformer, supplied with fixing feet/DIN rail clip and integral hinged terminal cover. The TAIA current transformer is supplied with busbar mounting bracket, has a 22mm diameter aperture, and is available with primary currents from 50 to 250A.

Downloads

Files

TAIA Data Sheet TAIA Data Sheet NT560-04
Product Name / Options Price (ex VAT)
This particular product has been discontinued by the manufacturer - please contact the sales office on 01245 428500 or email sales@rayleigh.com for the new equivalent model. Call for Prices
