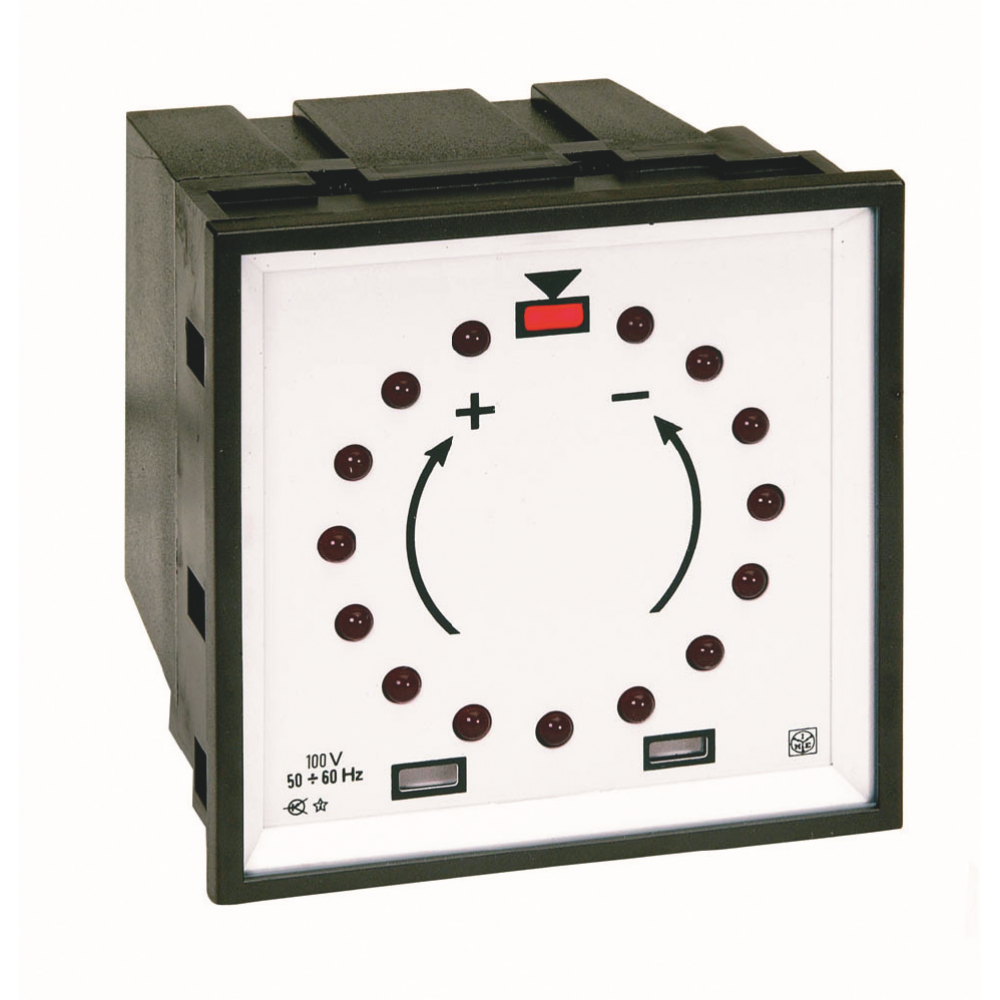

IME Syncro 96L Synchronizing Meter with LED 96x96mm

Features

  • IP52 Rating
  • Dimensions 96x96x105mm
  • 16 red LED on 360°
  • 15 round LED’s + 3 rectangular LED’s

Details

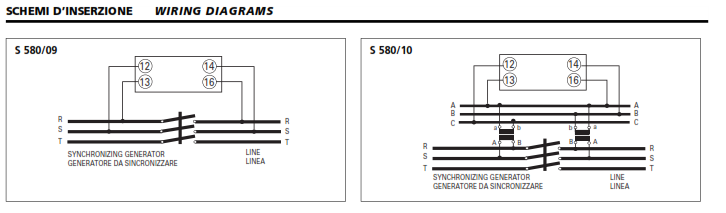

They measure the phase difference (Δϕ) between a generator and the network, showing its condition (lead or lag) until the synchronicity situation (phase displacement Δϕ=0°) is reached. They report the possible phase opposition condition (phase displacement Δϕ=180°). Direct connection up to 440V Connection thru external VT/100V – /115V Rating frequency 50 and 60Hz INPUT Connection: direct (S.580/9) or thru external VT (S.580/10) Rating voltage Un: 100-115V or 230-240V or 400-440V Tolerance: ± 10%Un Rating frequency fn: 50-60Hz Tolerance: 47...63Hz Rated burden: 3VA (100V) HOUSING Mounting: flush mounting Panel cutout: 92x92mm Front frame: 96x96mm Depth: 92mm Connections: screw terminals / fast-on 6,3x0,8mm Housing material: self-extinguishing polycarbonate Protection degree (EN/IEC60529): IP52 front frame, IP20 terminals (with protection) Option: protection IP54 front frame Weight: 650 grams
Product Name / Options Price (ex VAT)
IME Syncro 96L ANRJ1 Synchronizing Meter with LED 96x96mm, 100+115V, 50+60Hz Call for Prices

IME Syncro 96L ANRJ13 Synchronizing Meter with LED 96x96mm, 100+115V, 50+60Hz + IP54 Front Protection Call for Prices

IME Syncro 96L ANRJ2 Synchronizing Meter with LED 96x96mm, 230+240V, 50+60Hz Call for Prices

IME Syncro 96L ANRJ23 Synchronizing Meter with LED 96x96mm, 230+240V, 50+60Hz + IP54 Front Protection Call for Prices

IME Syncro 96L ANRJ3 Synchronizing Meter with LED 96x96mm, 400+440V, 50+60Hz Call for Prices

IME Syncro 96L ANRJ33 Synchronizing Meter with LED 96x96mm, 400+440V, 50+60Hz + IP54 Front Protection Call for Prices
