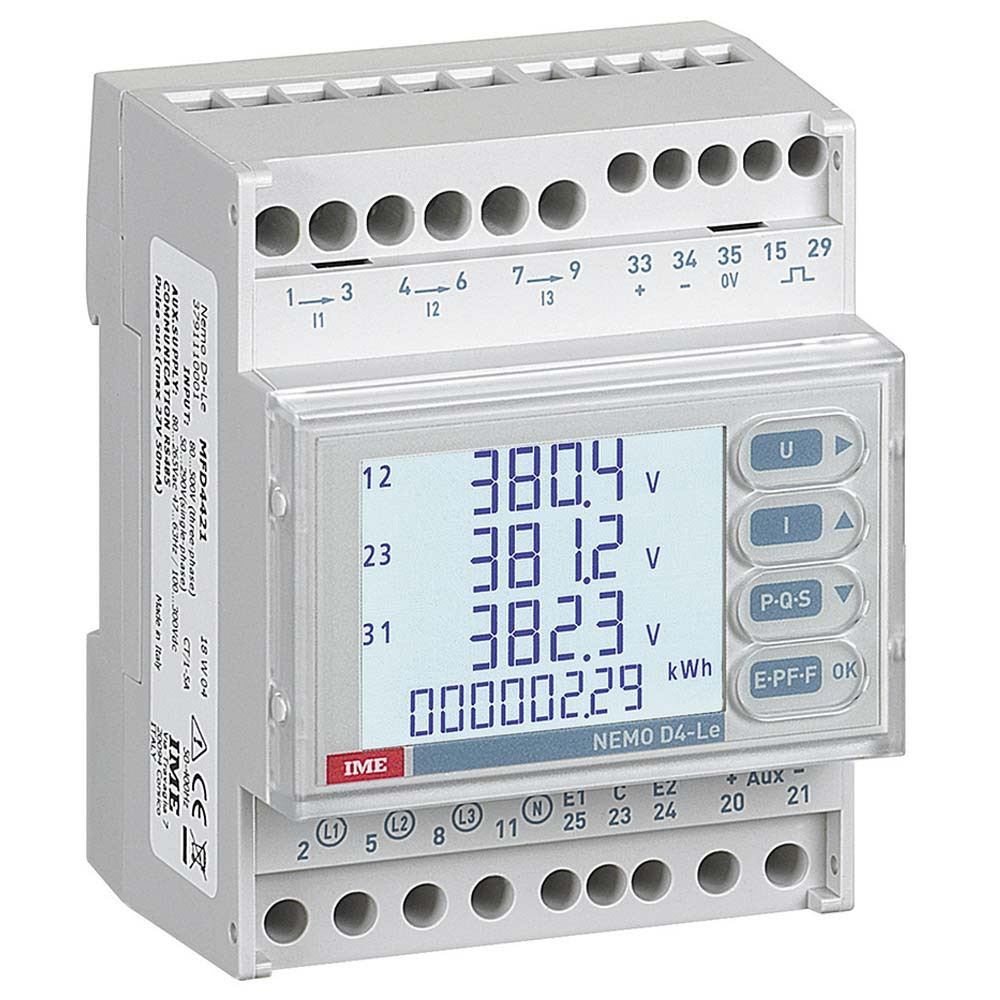

IME Nemo D4-Le Single & Three Phase Network Din Rail Multifunction Energy Meter

Features

  • 4 module wide 71.22mm
  • DIN rail mounting
  • Single & three phase (3 or 4 wire) network unbalanced load
  • Voltage, Current, Neutral current, Average current, Peak current (resettable), Frequency, Active and reactive apparent power, Phase active and reactive apparent power, Average power, Peak power (resettable), Power factor
  • Active energy class 0.5 (EN/61557-12)
  • Reactive energy class 1 (EN61557-12)
  • Partial active energy and reactive energy(resettable)
  • Hours run, Phase sequence diagnostics, Harmonic analysis, Crest factor, Phase angle
  • Integrated Communication Protocols are *Pulsed output, *RS485 Modbus RTU (*depending on model ordered) or BACNET
  • –/1A or –/5A (selectable) current transformer operated
  • 80…450V direct or VT operated measured voltage
  • Programmable current transformer ratio
  • Programmable voltage transformer ratio
  • Auxiliary 80-265Vac/110-300Vdc or 20…150Vdc

Details

Nemo D4-Le - is a single and three phase network mounted multi-function meter mounted by Din Rail (4 module wide).

Connection with external dedicated current transformers
Three-phase voltage rating Un: 400-100V (phase-phase)
Three-phase voltage: 80...500V (phase-phase)
Single-phase voltage: 50 - 290V

Additional Information

Manufacturer IME (BTicino)
Product Name / Options Price (ex VAT)
IME Nemo D4-Le MFD4411 (1/5A, 80...500V Inout, Aux Supply 80...265Vca/ac100...300Vcc/dc ) With Pulse Output Only Call for Prices

IME Nemo D4-Le MFD4421 (1/5A, 80...500V Inout, Aux Supply 80...265Vca/ac100...300Vcc/dc ) With Pulse Output & RS485 Modbus RTU Call for Prices

IME Nemo D4-Le MFD44B1 (1/5A, 80...500V Inout, Aux Supply 80...265Vca/ac100...300Vcc/dc ) With Pulse Output & Bacnet Call for Prices
