More Views

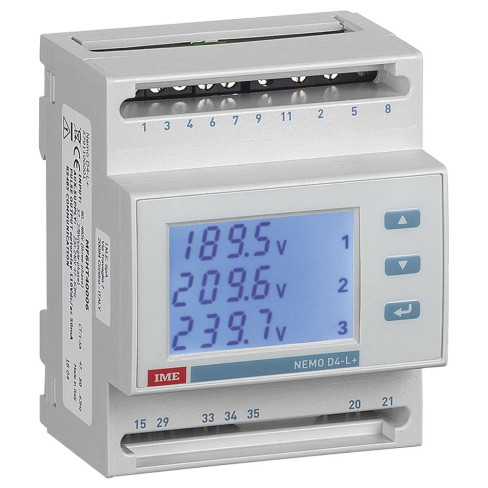

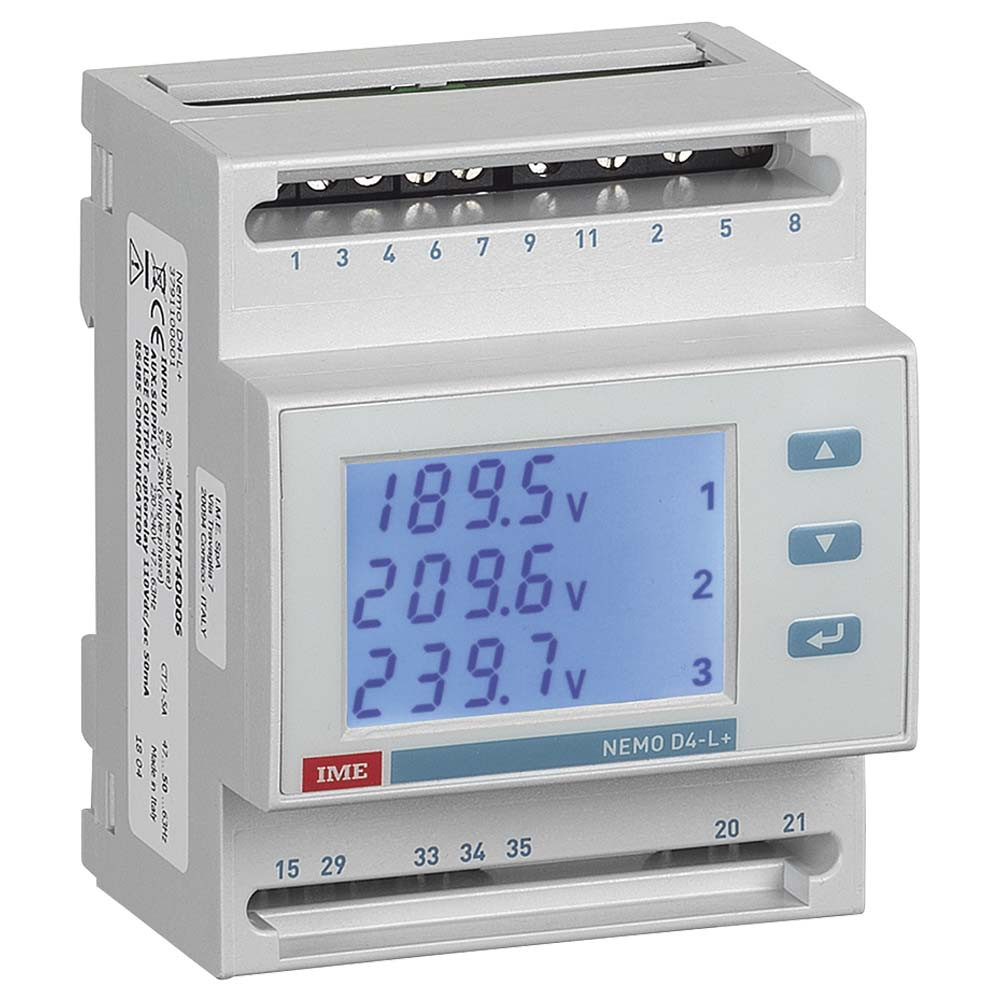

IME Nemo D4-L+ Din Rail Single Phase & Three Phase Network Multifunction Meter

Features

  • 4 module DIN rail mounting
  • Single & three phase (3 or 4 wire) network unbalanced load
  • Isolated input
  • Voltage
  • Current
  • Neutral current
  • Average current
  • Peak current (resettable)
  • Frequency
  • Active, reactive and apparent power
  • Phase active and reactive power
  • Average power
  • Peak power (resettable)
  • Power factor
  • Partial active energy (resettable)
  • Hours run
  • Active energy class 1 (EN62053-21)
  • Reactive energy class 2 (EN62053-23)
  • Phase sequence diagnostics
  • Pulsed output, Modbus RS485 communication or M-Bus communication
  • –/1A, –/5A current transformer operated
  • 50…450V direct or VT operated measured voltage
  • Programmable current transformer ratio
  • Programmable voltage transformer ratio
  • Auxiliary 48/115/230Vac, 20…150Vdc

Details

Nemo D4-L+ - DIN Rail mounted multifunction meter.
The Nemo D4-L+ - DIN Rail mounted single phase or three phase multifunction meter.
The Nemo D4-L+ - DIN Rail mounted multifunction meter works with 1A or 5A current transformers.

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
MF6HT40006 (1/5A 230Vac Pulse & Modbus) Call for Prices
