  • IME Nemo 96 EC Three Phase 1 or 2 Input EASYCONNECT Multifunction Measuring Unit

More Views

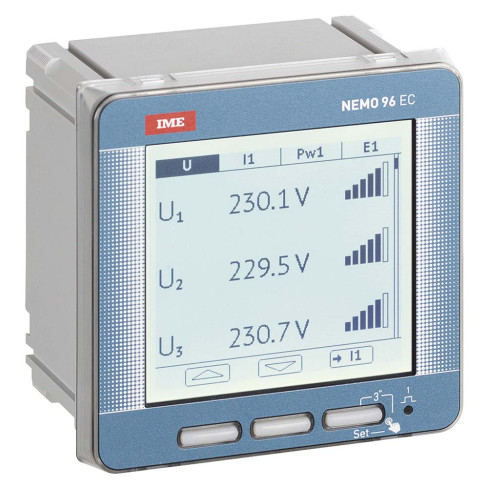

IME Nemo 96 EC Three Phase 1 or 2 Input EASYCONNECT Multifunction Measuring Unit

Features

  • DIN 96 panel mounted
  • High-definition backlit LCD display
  • 3-phase, 3 or 4-wire unbalanced load operation
  • 1 or 2 EASYCONNECT 'quick connector' to Rogowski Coils
  • Modbus or Mbus communication
  • Programmable Primary Current
  • Current capacity 630A, 1600A, 3200A, 6300A
  • Voltage Range: V-N/V-V 3x230/3x400 ±15% or V-V 3x230 ±15%
  • Imax =125A , Vn= 230Vac, auxiliary feeding 196…295V

Details

The Nemo 96 EC is a 96 x 96mm flush mounting multifunction instrument featuring the IME EASYCONNECT 'quick connector' designed for the connection of 3 Rogowski type current coils (630A, 1600A, 3200A or 6300A versions - sold separately).

The Nemo 96 EC is suitable for 3-phase, 3 or 4-wire unbalanced load operation

Additional Information

Manufacturer IME (BTicino)

Downloads

Product Name / Options Price (ex VAT)
MF961ORFCDT - Nemo 96 EC (1 x EASYCONNECT Input, Modbus Output) Call for Prices
MF962ORFCDT - Nemo 96 EC (2 x EASYCONNECT Inputs, Modbus Output) Call for Prices
MF961ORFCMT - Nemo 96 EC (1 x EASYCONNECT Input, Mbus Output) Call for Prices
MF962ORFCMT - Nemo 96 EC (2 x EASYCONNECT Inputs, Mbus Output) Call for Prices
