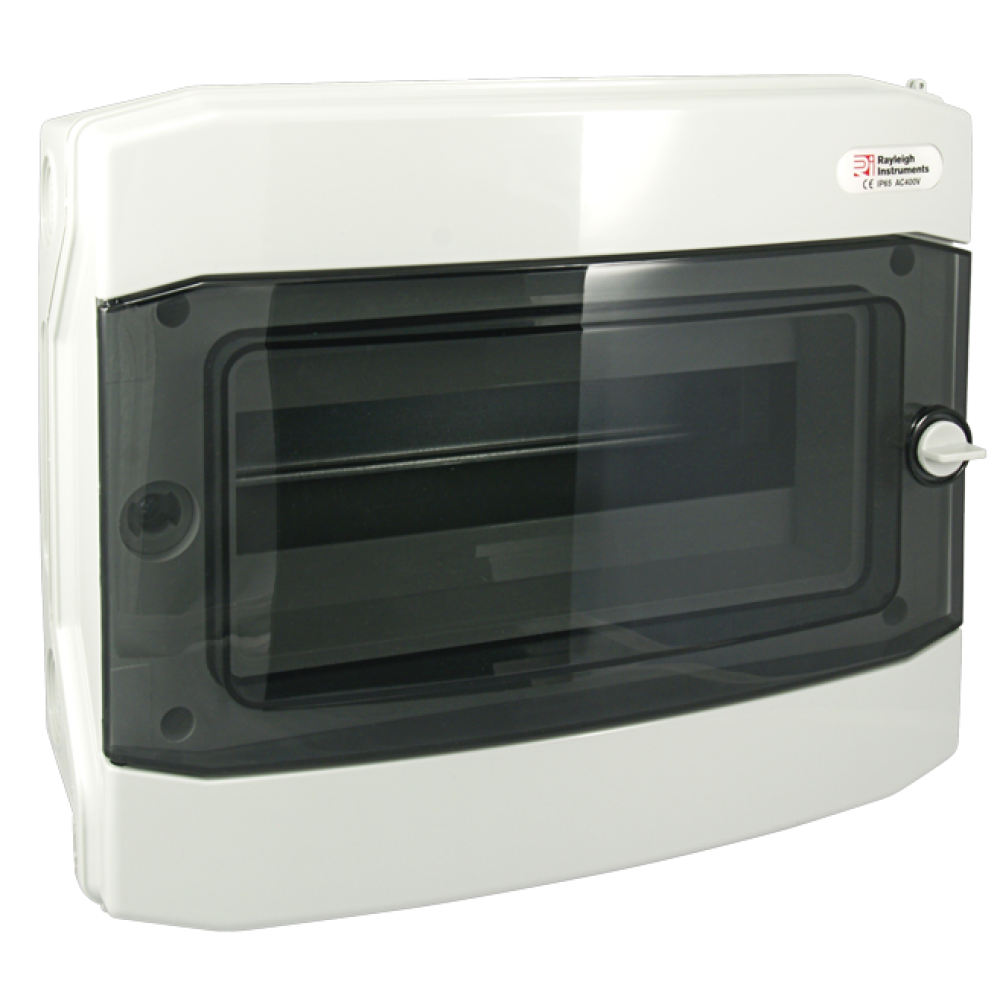

Rayleigh Instruments ECH-12PT Surface Wall Mounted Enclosure Plastic Distribution Boxes IP65 Rated 12 Module


This product is no longer available

  • No. Of modules: 12
  • Insulation Class : II
  • Colour : RAL 7035
  • Installation temperature : -20° / +60°C


This product is no longer available

Watertight wall-mounted distribution boards apply in domestic and industry architecture for mounting modular equipment for protection (IP65) against wet, dust and another dirtiness. Enclosure is made of high thermal stability material - ASA (Acrylonitrile-Acrylic-Styrene), plastic with good dielectrical and mechanical attributes, UV resistant ( colour stability). Easy and quick montage.

Main elements:
Bottom cover with DIN rail, PE and N bars and holes for PG cable inlets properly marked
Top cover with seal of the door

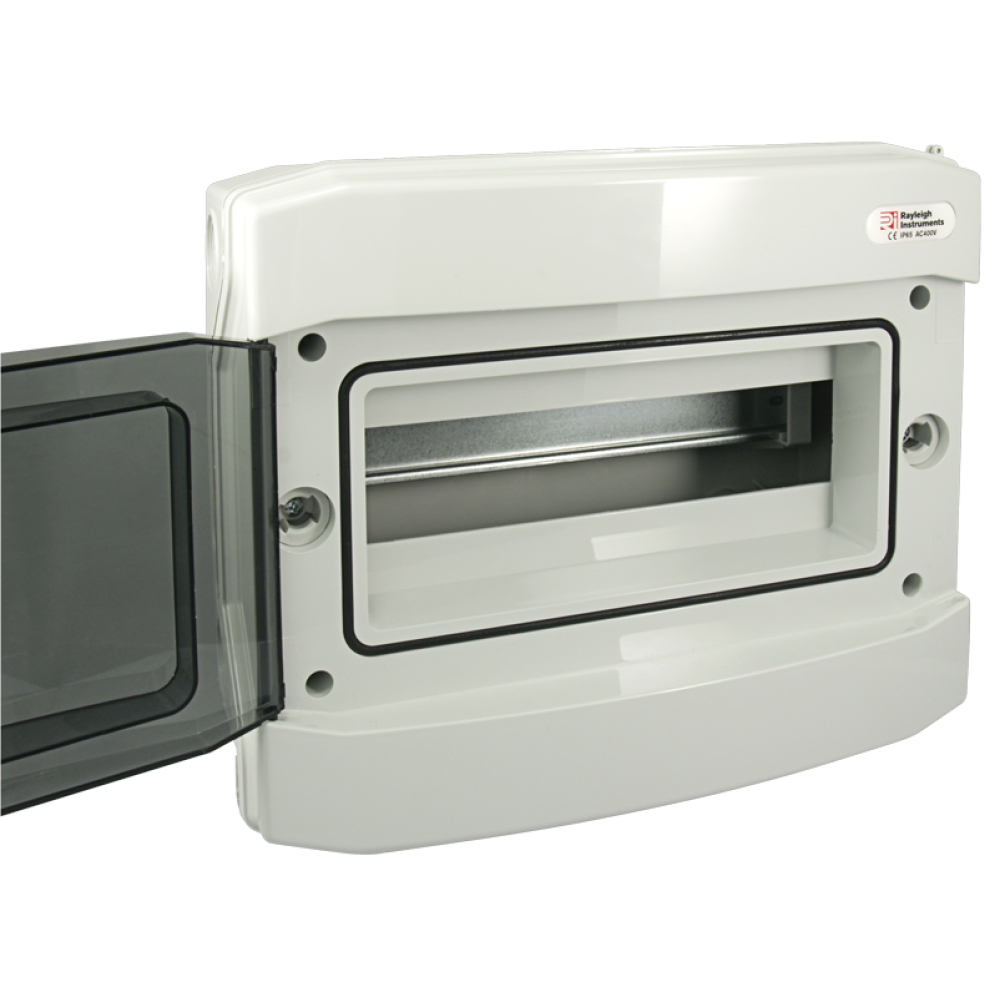

Transparent door made of polycarbonate (PC) with plastic lock (in standard) or metal lock with key (in option)

No. Of modules: 12
Rows: 1
Type of door: Transparent door

Additional Information

Manufacturer Rayleigh Instruments


Product Name / Options Price (ex VAT)
ECH-12PT - IP65 DIN Rail Enclosure - 12 Module Call for Prices
