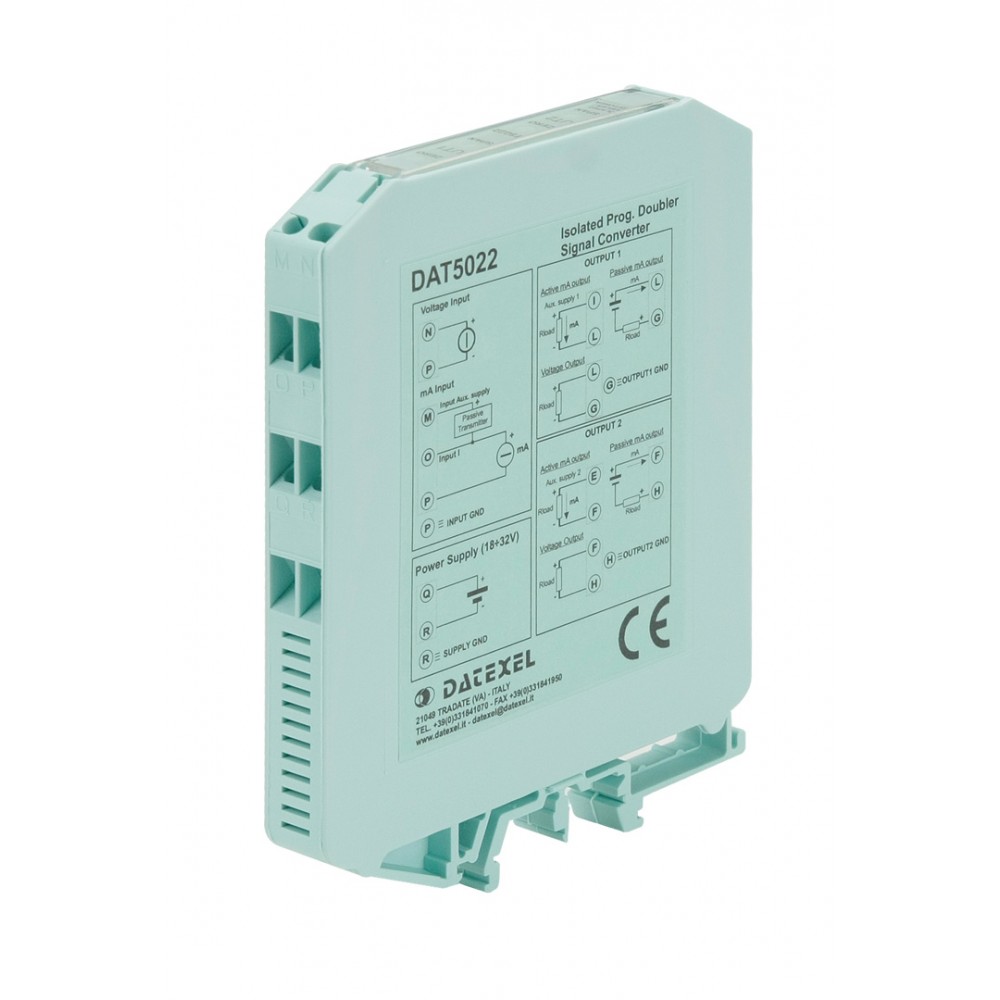

Datexel DAT 5022 4 ways isolated programmable dual signal converter / signal splitter


  • Input for voltage and current signal
  • Input and output ranges configurable by DIP-switches
  • Two independent output channels
  • Isolated power supply source for passive current transmitter on input
  • Isolated power supply source for passive loads on outputs
  • Galvanic isolation at 1500 Vac between input, power supply and outputs
  • Led for signalling correct power supply condition
  • EMC compliant – CE mark
  • DIN rail mounting in compliance with EN-50022 and EN-50035


The converter DAT 5022 is designed to provide on output two voltage or current signals proportional with the value of the normalised signal applied on its input. The user can program the input and outputs ranges by the proper DIP-switches available after opening the suitable door located on the side of device (see“Input ranges table” and “Outputs ranges table” sections).

On the top of device there are the led PWR to signal the correct power supply condition and the ZERO and SPAN potentiometers for the regulation of Zero and DAteSpan values. The 1500 Vac isolation between input, power supply and the outputs eliminates the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications.

The DAT 5022 provides on the input side an auxiliary supply source to connect both active and passive current loops. Moreover it provides on each output side an auxiliary supply source to connect both active and passive loads. It has been made in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards .

Additional Information

Manufacturer Datexel
Product Name / Options Price (ex VAT)
Datexel DAT 5022 Dip switch configurable din rail splitter, input : V, mA. Configurable output : V or mA. Power supply 18...32Vdc. Call for Prices
