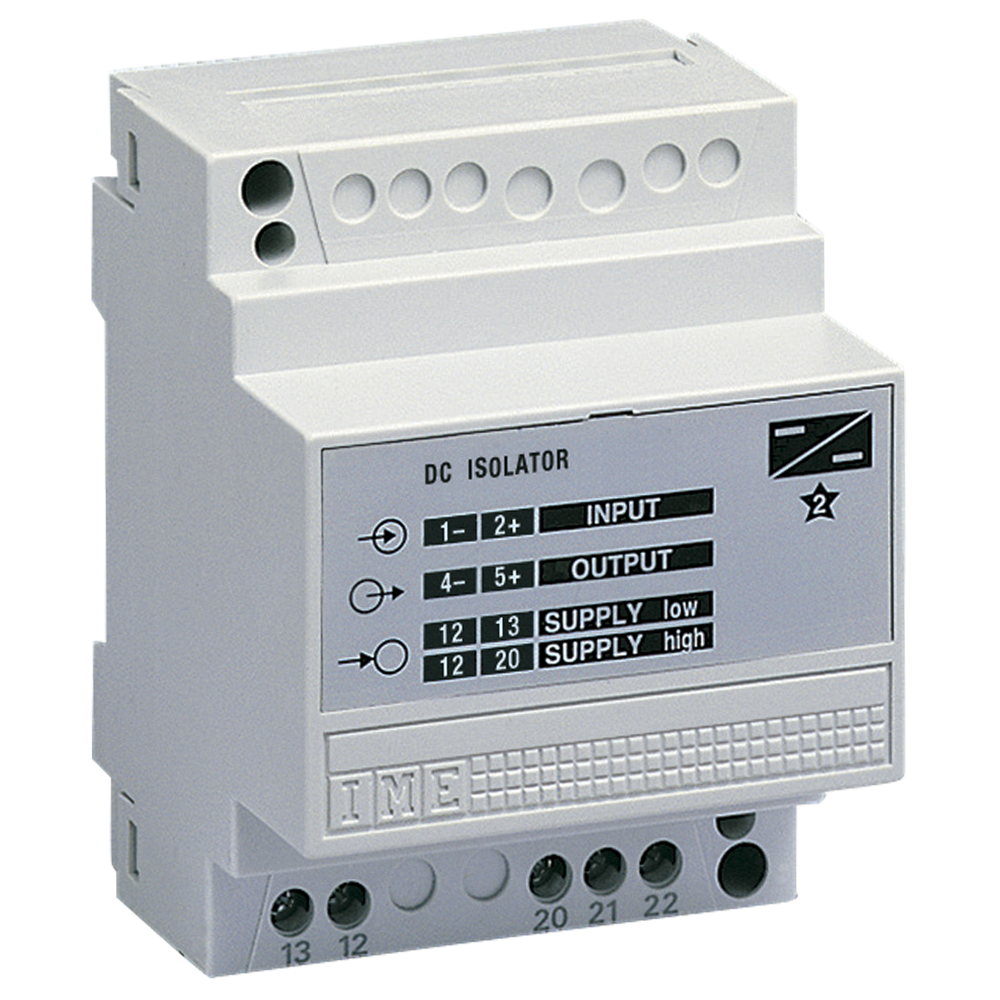

IME Tema SG TM2G Direct Current and Voltage Signal Separator Transducers

Features

  • DC current/voltage transducer
  • Ratio 1:1
  • Accuracy 0.5
  • Input current 4…20mA - unidirectional (or other value on request from 1…500mA)
  • Input voltage 0…60mV - unidirectional (or other value on request from 50mV…400V)
  • Choice of output 0…5mA, 0…10mA, 0…20mA, 4…20mA
  • 4 module DIN rail mounting
  • Available with 230Vac, 115Vac and 20-150Vdc and 150-250Vdc auxiliary supply

Details

The IME Tema SG TM2G is a 4 module direct current or voltage signal separator/transducer.

To measure direct current 1...500mA
Standard signal galvanic insulation: 0...5/10/20mA - 4...20mA
Input voltage drop ≤ 100mV
To measure direct voltage 50mV...400V
Standard signal galvanic insulation: 0...5/10V - 1...5V
Connection through shunts 60-100-150mV
Input rated burden ≤ 0,2mA
Output 0...5/10/20mA - 4...20mA

INPUT
  • Connection: direct
  • Type: unidirectional
  • Voltage rating Un: 50mV...400V (Other value on request)
  • Live zero input: 4...20mA
  • Voltage drop: ≤ 100mV
  • Current rating In: 1...500mA (Other value on request)
  • Live zero input: 1...5V
  • Rated burden: ≤ 0,2mA
Product Name / Options Price (ex VAT)
IME Tema SG TM2G142 Tranducers, Input 4-20mA, Output 0-5mA, Aux Supply 115 + 230V ca/ac Call for Prices

IME Tema SG TM2G144 Tranducers, Input 4-20mA, Output 0-20mA, Aux Supply 115 + 230V ca/ac Call for Prices
