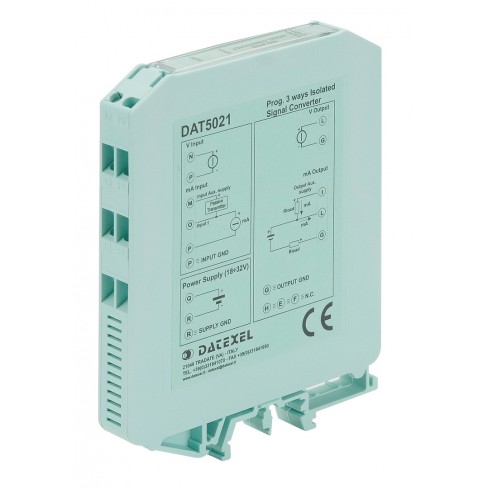

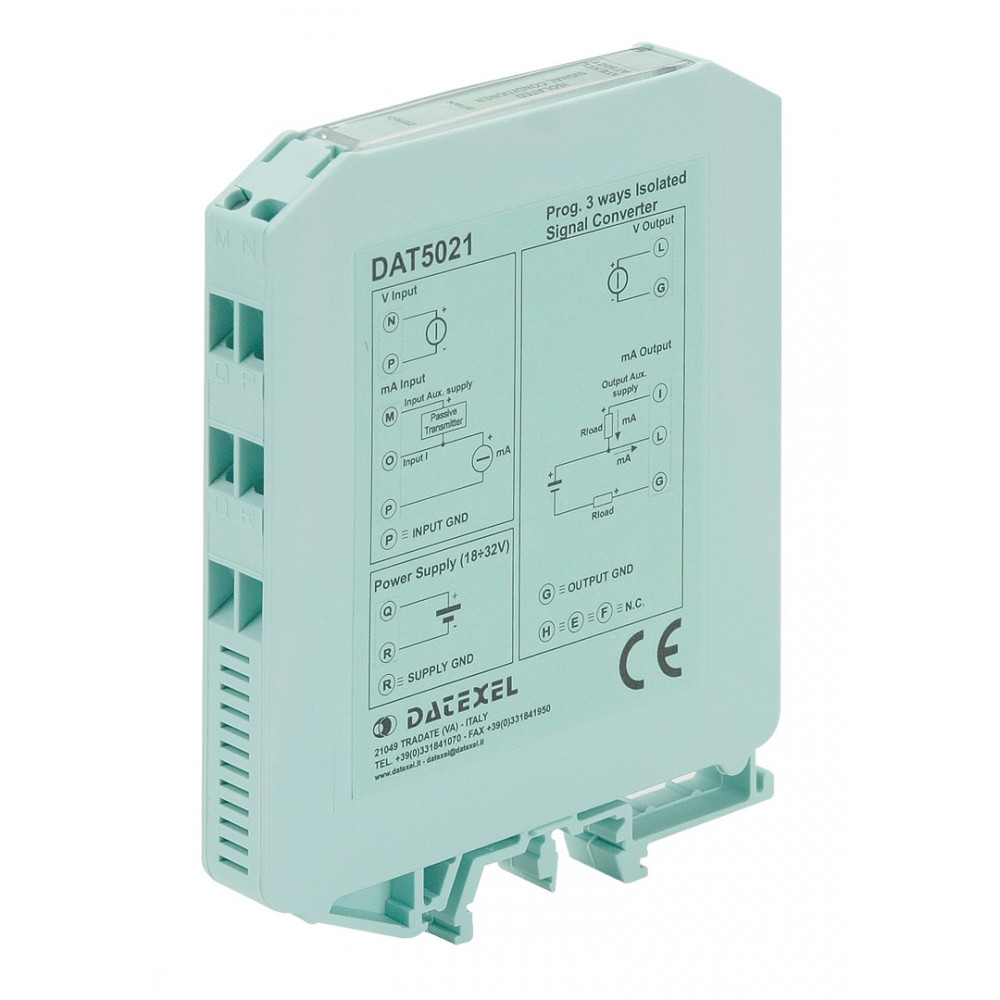

Datexel DAT 5021 Din Rail Dip Switch 3 Ways Isolated Programmable Signal Converter

Features

  • Input for voltage and current signal
  • Input range configurable by DIP-switches
  • Isolated power supply source for passive current transmitter on input
  • Isolated power supply source for passive loads on output
  • Galvanic isolation at 1500 Vac between input, power supply and output
  • Led for signalling correct power supply condition
  • UL / CE mark
  • DIN rail mounting in compliance with EN-50022 and EN-50035

Details

The converter DAT 5021 is designed to provide on its output a voltage or current signal proportional with the value of the normalised signal applied on its input. The user can program the input and output ranges by the proper DIP-switches available after opening the suitable door located on the side of device (see “Input ranges table” and “Output ranges table” sections). On the top of device there are the led PWR to signal the correct power supply condition and the ZERO and SPAN potentiometers for the regulation of Zero and Span values.

The 1500 Vac isolation between input, power supply and output eliminates the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications.

The DAT 5021 provides on the input side an auxiliary supply source to connect both active and passive current loops. Moreover it provides on the output side an auxiliary supply source to connect both active and passive loads.

The DAT 5021 has been made in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility, with the Directive UL 61010-1 for the US market and with the Directive CSA C22.2 No 61010-1 for the Canadian market. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards.

Additional Information

Manufacturer Datexel

Downloads

Product Name / Options Price (ex VAT)
Datexel DAT5021 3 way isolated programmable signal conditioner Call for Prices
