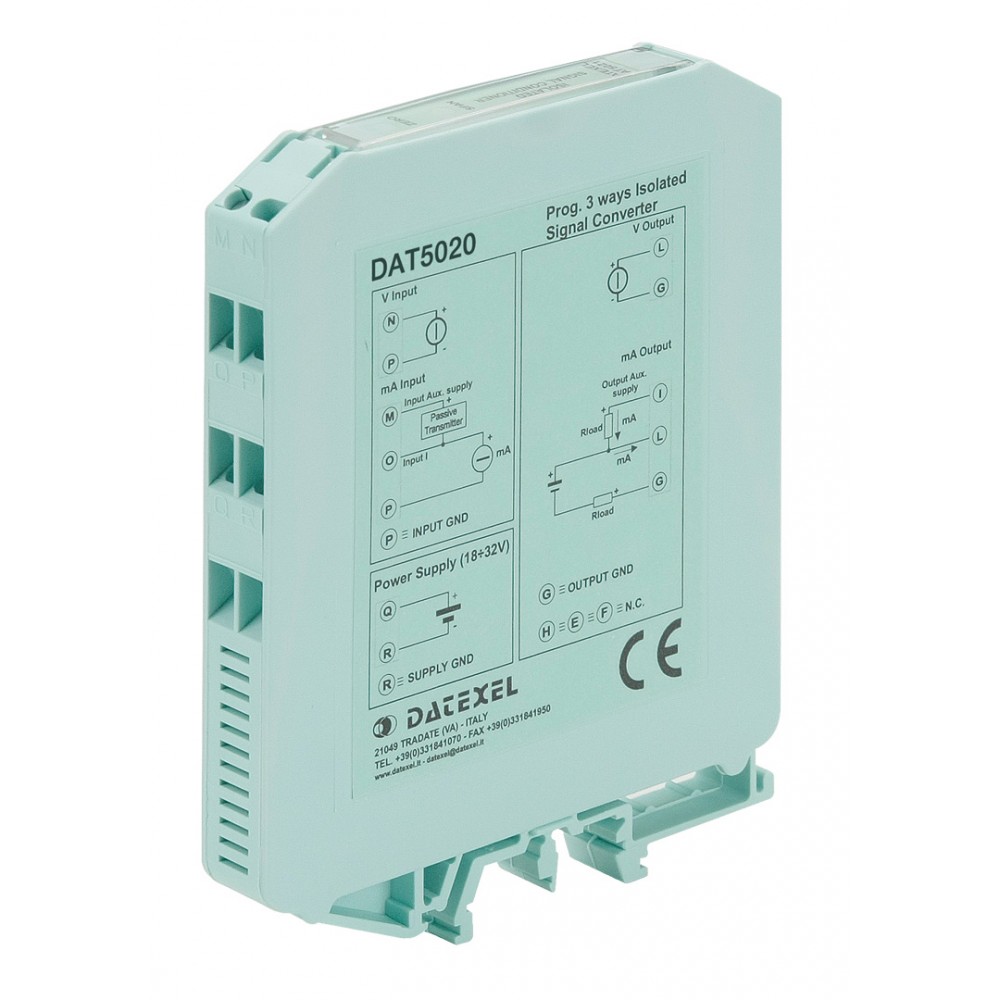

Datexel DAT 5020 3 Ways Isolated Programmable Signal Converter


  • Input for voltage, current and potentiometer signal
  • Input range configurable by DIP-switches
  • Isolated power supply source for passive current transmitter on input
  • Voltage or current output
  • Output values configurable by DIP-switches
  • Galvanic isolation at 2000 Vac between input, power supply and output
  • Good accuracy and performance stability
  • EMC compliant – CE mark
  • DIN rail mounting in compliance with EN-50022 and EN-50035


The converter DAT 5020 is designed to provide on its output a voltage or current signal proportional with the value of the normalised signal or the potentiometer applied on its input.

The user can program the input and output ranges by the proper DIP-switches available after opening the suitable door located on the side of device (see “Input ranges table” and “Output ranges table” sections).

The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the top of device. The 2000 Vac isolation between input, power supply and output eliminates the effects of all ground loops eventually existing and allows the use of the converter in heavy environmental conditions found in industrial applications.

On the input side, an auxiliary supply source isolated from the power supply is provided; this allows to connect on input both active and passive current loops. It has been made in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards.

Additional Information

Manufacturer Datexel
Product Name / Options Price (ex VAT)
Datexel DAT 5020 Din rail dip switch configurable converter, input : mV, V, mA, Potentiometer. Call for Prices
