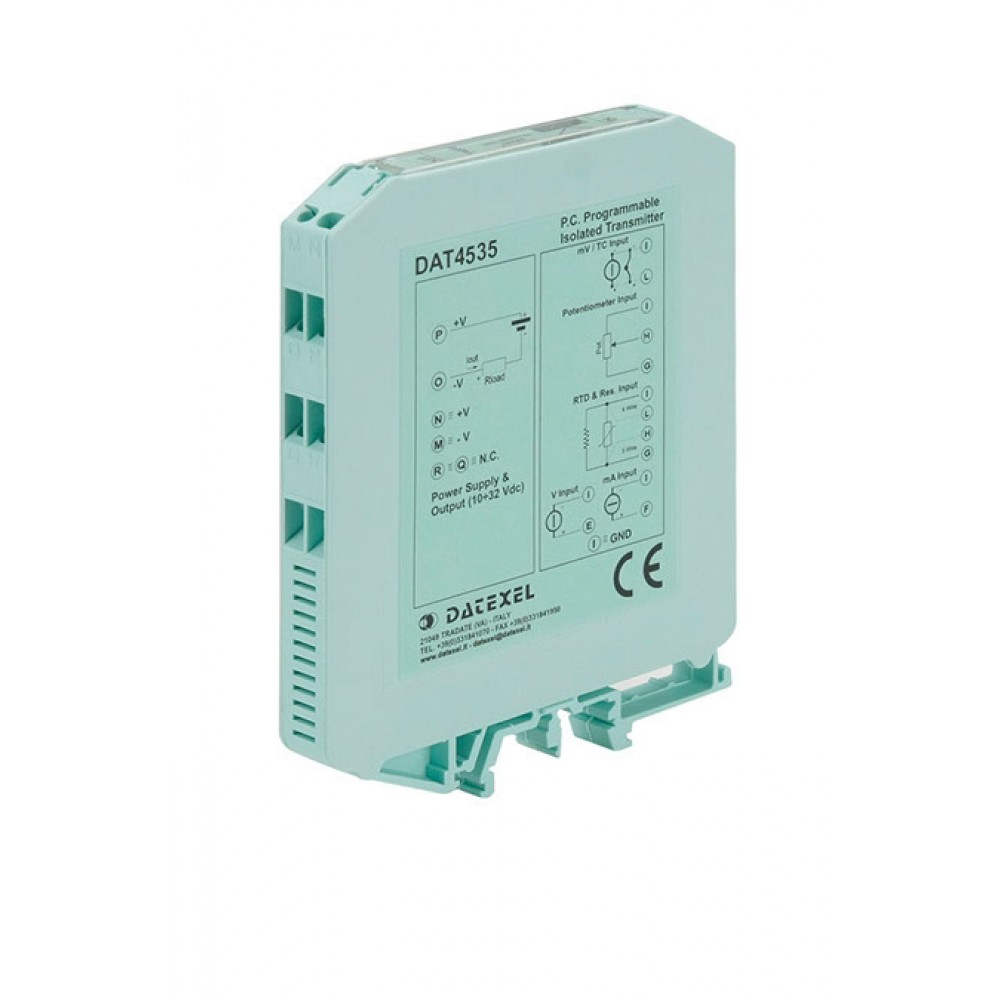

The universal isolated transmitter DAT4535 is able to measure and linearise voltage, current and resistance signals, potentiometers and the standard thermocouples and RTDs with, if required, the cold junction compensation and the wires compensation. In function of programming, the measured values are converted and transmitted on the 4÷20 mA current loop. The device guarantees high accuracy and performances stability both versus time and temperature.
The universal isolated transmitter DAT4535 is able to measure and linearise voltage, current and resistance signals, potentiometers and the standard thermocouples and RTDs with, if required, the cold junction compensation and the wires compensation. In function of programming, the measured values are converted and transmitted on the 4÷20 mA current loop.
The device guarantees high accuracy and performances stability both versus time and temperature.
The programming is made by the dip-switch located in the window on the side of the enclosure. By means of dip-switches it is possible to select the input type and range without recalibrate the device. The user can also use a PC to program the devices parameters to tailor them to their own requirements.
