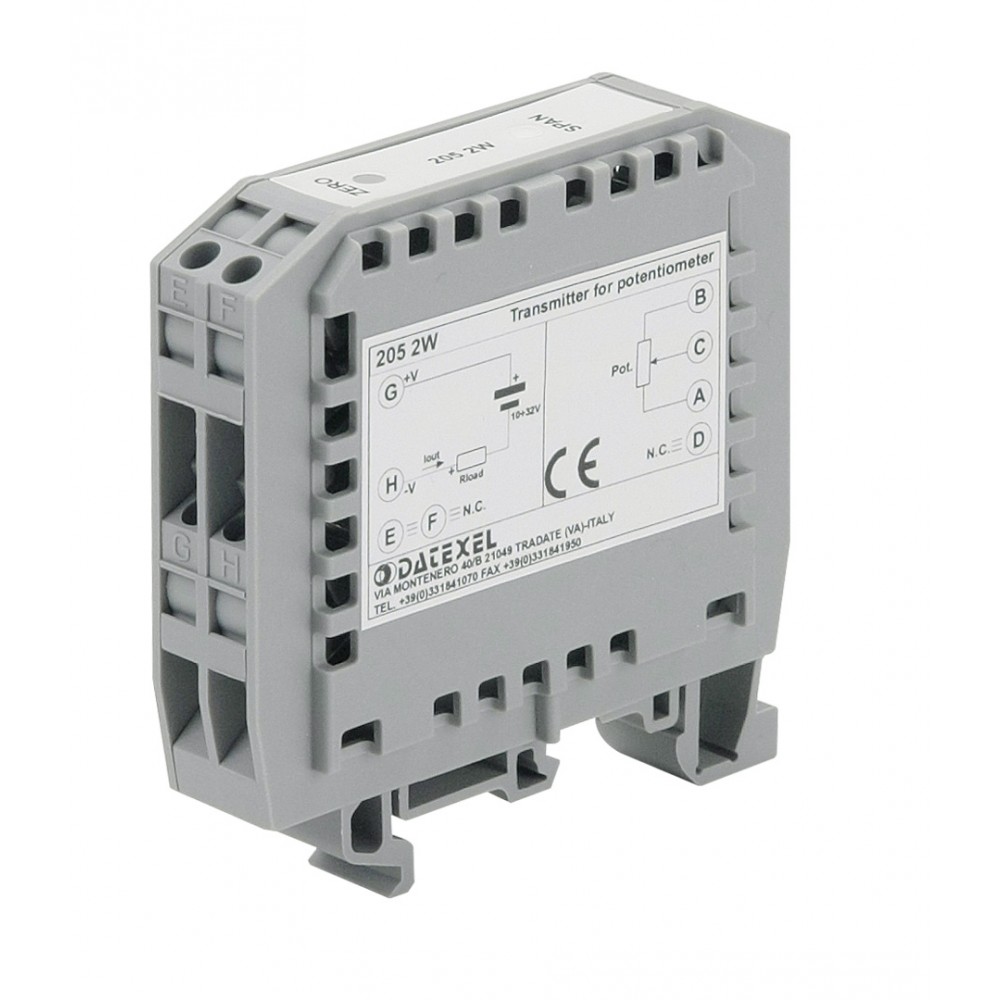

The transmitter DAT 205 2W is designed to provide on output a 4÷20 mA current loop linearised signal proportional with the variation of resistance introduced from the potentiometer connected to its input; to make the measure, a 1 Vdc voltage reference is provided at the ends of the potentiometer.
The regulation of the zero and full-scale value are made using the ZERO and SPAN potentiometers; there is not influence between the regulations.
The DAT 205 2W is in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility.
It is housed in a plastic enclosure of 17 mm thickness suitable for DIN rail mounting in compliance with EN-50022 and EN-50035 standards.
