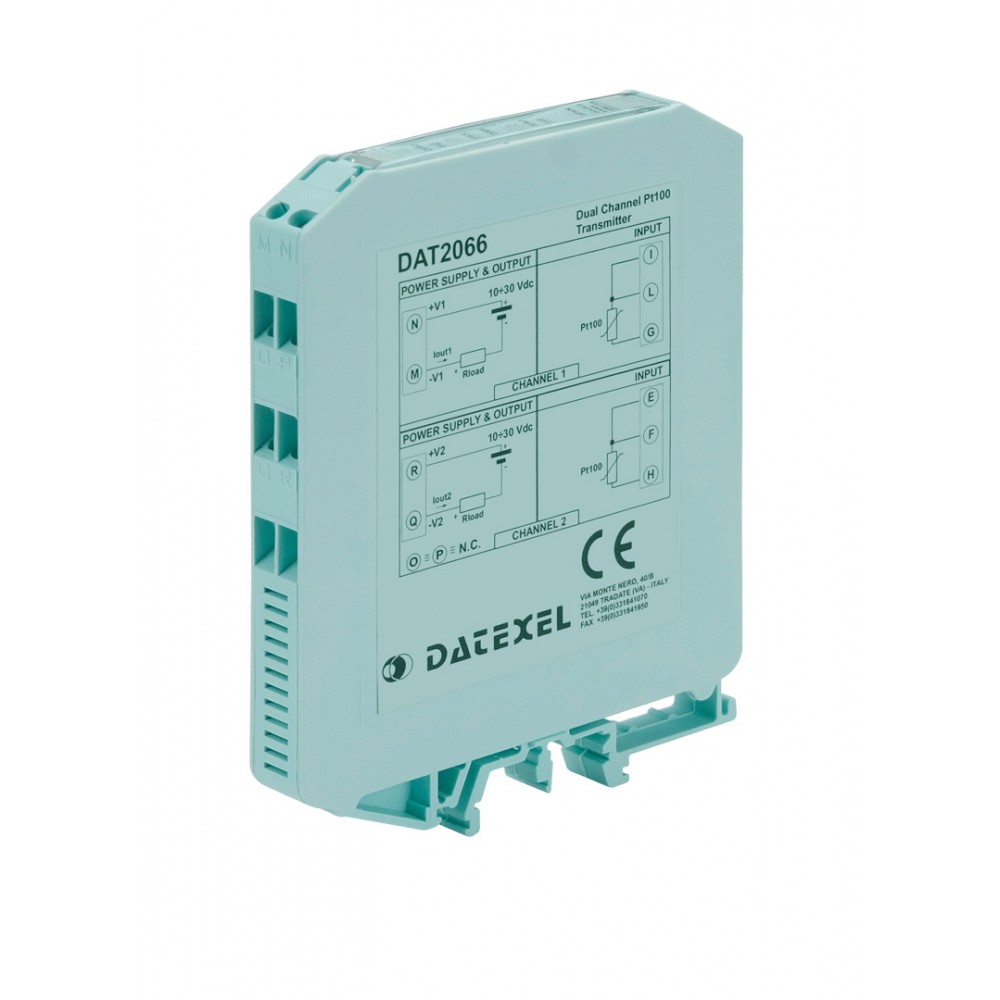

Datexel DAT 2066 Double channel programmable transmitter for Pt100

Features

  • Pt100 input
  • Input range programmable either with °C or °F unit measure
  • Zero e Span values programmable by DIP-switches
  • 4÷20 mA linearised output
  • Good accuracy and performance stability
  • EMC compliant – CE mark
  • DIN rail mounting in according to EN-50022 and EN-50035 standards

Details

The double channel transmitter DAT 2066 is designed to provide on the output two linearised 4÷20 mA current loop signals proportional with the temperature characteristics of the Pt100 sensors connected on its inputs. It is possible to connect on the input both 3 wire Pt100 and 2 wire Pt100.

The user can program the input ranges of each channel by the proper DIP-switches available after opening the suitable door located on the side of device. The regulation of Zero and Span values is made by the ZERO and SPAN potentiometers located on the front side of device. Moreover, an isolation of 1000 Vac is provided among the channels; it allows to avoid signal errors due to the ground loops and to reduce eventual R.F. Interferences.

It has been made in compliance with the Directive 2004/108/EC on the Electromagnetic Compatibility. It is housed in a plastic enclosure of 12.5 mm thickness suitable for DIN rail mounting in according to EN-50022 and EN-50035 standards.

Double channel not insulated dip switch configurable din rail transmitter. 2 x Pt100 2,3 wires inputs. Power supply 10...30Vdc (loop powered). Reverse polarity protection 60Vdc max. 2 x 4...20mA outputs.
Product Name / Options Price (ex VAT)
Datexel DAT 2066 Double channel not insulated dip switch configurable din rail transmitter Call for Prices
