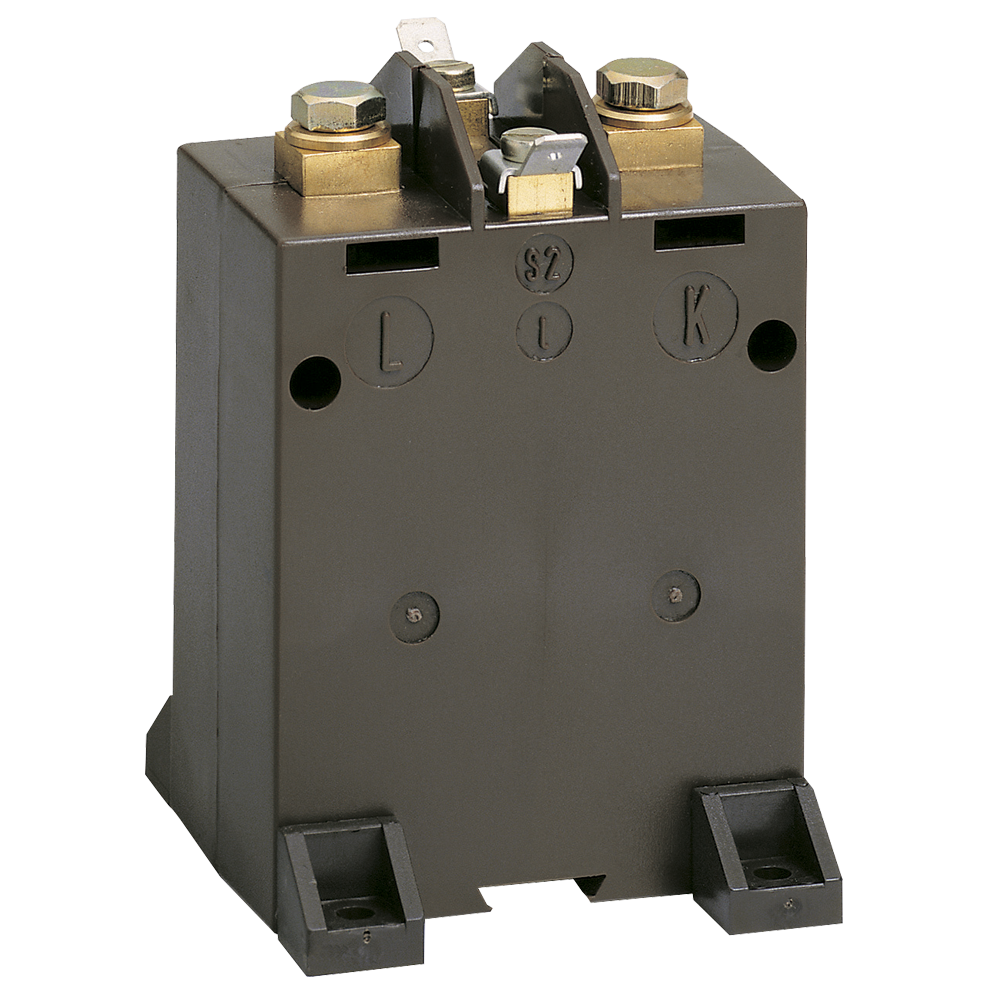

IME TAQE TAQ1 Single Phase Winding Primary Current Transformer

Features

  • Measuring current transformer (formerly TAQ1)
  • Ranges: 5 to 60A (1A or 5A Secondary)
  • Wound primary
  • Supplied with mounting feet
  • Primary terminals M6 screw
  • Secondary terminals M4 screws and 6.3 x 0.8mm fast-on
  • Optional sealable terminal cover (ATACOP06)
  • Optional DIN rail clip (ATADIN01)
  • Weight 320g

Details

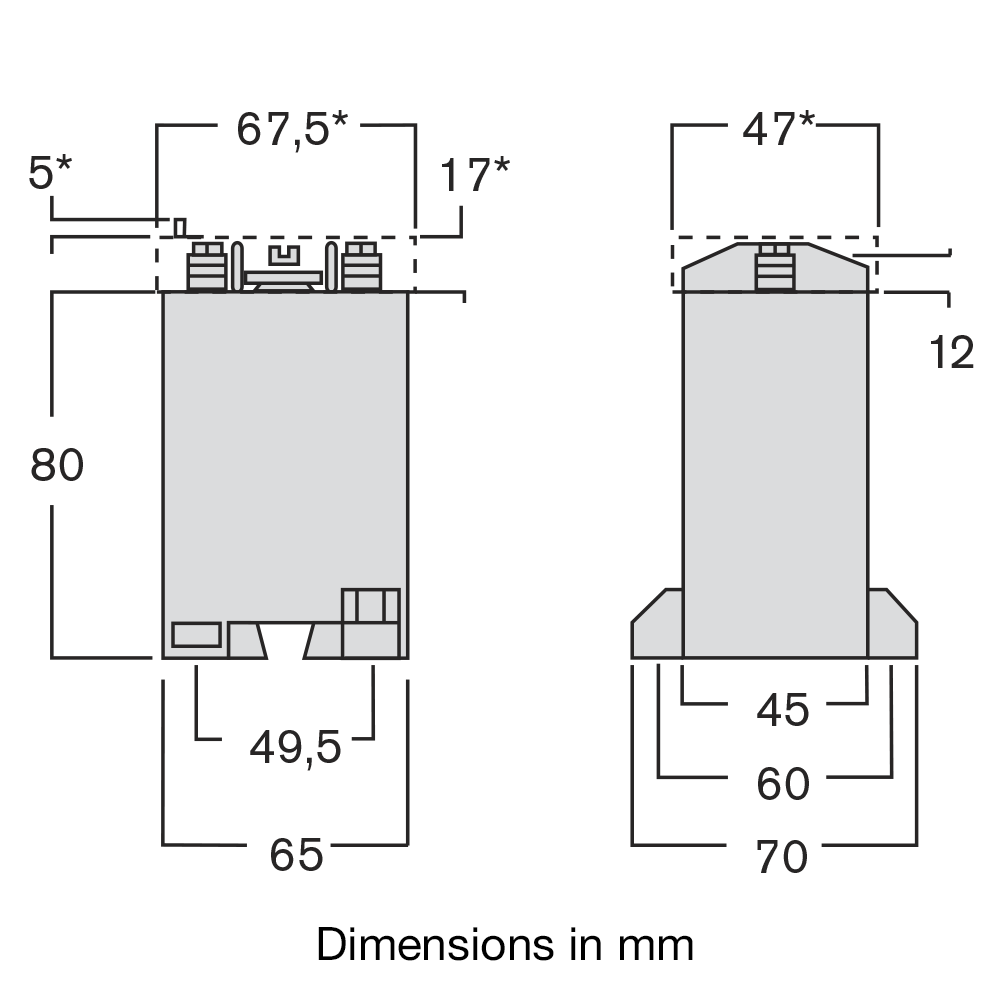

Single-phase current transformer Winding primary Primary current 5...60A Secondary current 1 - 5A Accuracy class: cl.1 Rated burden 3VA Please note that this has been discontinued with the TAQ2M and TAQ2L models replacing TAQ1 and TAQ2 (TAQE and TAQA) HOUSING Housing material: self extinguishing polycarbonate Protection degree (EN60529): IP00 terminals (IP20 with sealable terminal cover), IP20 housing Option: sealable terminal cover Option: accessory for snap-on 35mm rail mounting Rail type: top hat TH35-15 (EN60715) Weight: 320 grams CONNECTIONS Primary winding: tightening by nut M6 Secondary winding: tightening by nut M4 Connections label: primary winding P1(K) – P2(L) secondary winding s1(k) – s2(l) DIMENSIONS
Product Name / Options Price (ex VAT)
This particular product has been discontinued by the manufacturer - please contact the sales office on 01245 428500 or email sales@rayleigh.com for the new equivalent model. Call for Prices
