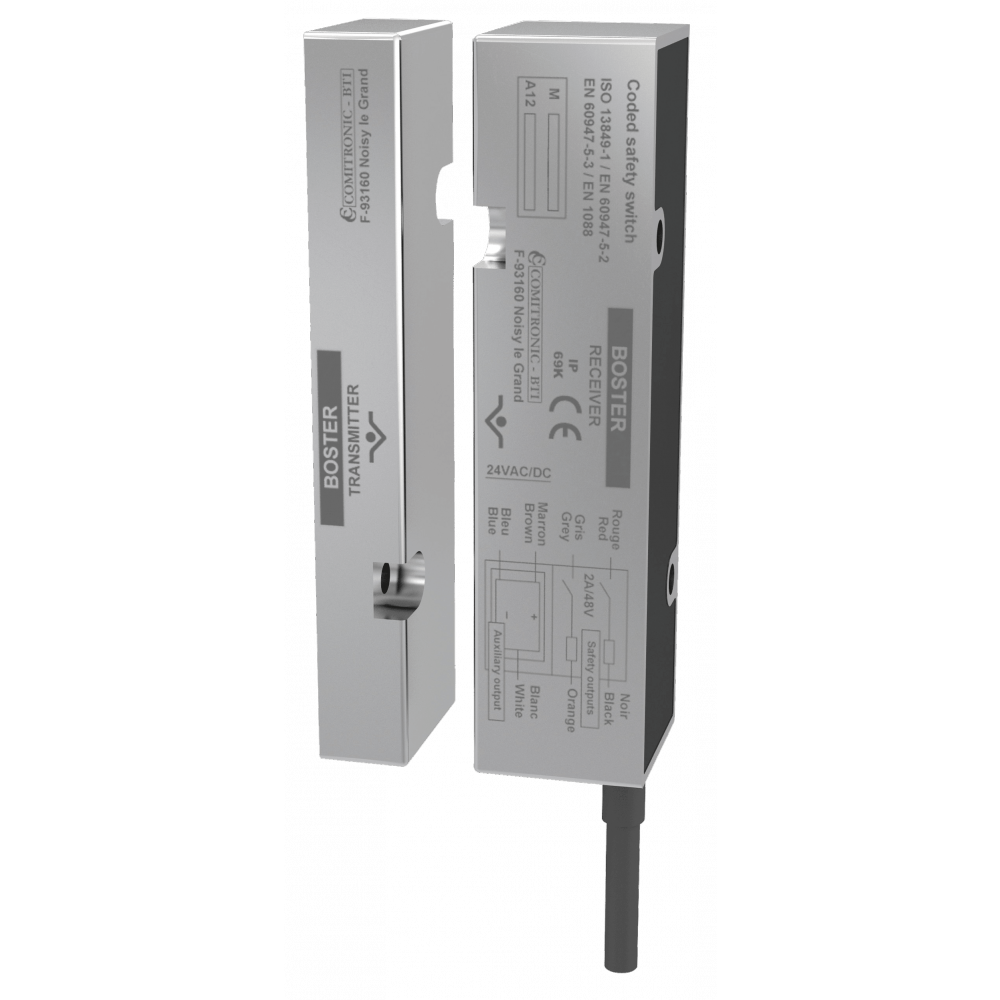

Comitronic-BTI Boster 40N Integrated Stainless Steel Position Control For Doors

Features

  • Safety Integrity Level: SIL 2
  • Cycle before dangerous failure: B10d = 2,000,000 at 2A
  • Max. activation distance: 4 mm, 2 mm hysteresis
  • Holding Force: transmitter + receiver in contact = 40N
  • Safety contacts/diagnostics: 2 x NO 2A/48V redundant / 1 x PNP 250mA encoding detection: single inviolable code
  • Reset: automatic
  • Attachment: 4 tamper-proof M4 screws (optional ref: BH4)
  • Mounting position: 1
  • Material: INOX 316L mirror polished
  • Electrical connection: 3, 6, 12m cable
  • Water resistance: IP 67/68
  • Temperature: -25°C to +60°C
  • Marking: INOX316L laser engraving with mechanical punching of the serial number for permanent traceability
  • Certification: TÜV Rheinland 01/205/5238/12
  • License Test Mark 968/EL 214.01/12

Details

The BOSTER device is coded electronic autonomous sensors using our ACOTOM3® process, allowing the opening of mobile protectors on dangerous machines to be detected. It is able to detect its own failure and lock itself, preventing the safety line from closing. A sensor consists of two PA6 or 316L stainless steel (AMX5OX) transmitting and receiving parts. The receiver supplies two potentialfree NO safety lines and an NC PNP (AMX5 or AMX5OX) auxiliary contact. This safety product must be checked at least once a year. Position control for doors / casings on dangerous machinery with magnetic holding devices 40N integrated stainless steel magnetic door holding Contactless encoded electronic sensor with relay Category 3 total safety management without an external controller Level of performance without an external controller: PL = d Level of performance with AWAX controller: up to PL = e Safety category without an external controller: 3
Product Name / Options Price (ex VAT)
Comitronic-BTI Boster CAT.3 and CAT4 in serial on AWAX 2NO+1NF Stainless Steel with 4Kg holding force with 3M Cable Call for Prices

Comitronic-BTI Boster CAT.3 and CAT4 in serial on AWAX 2NO+1NF Stainless Steel with 4Kg holding force with 6M Cable Call for Prices

Comitronic-BTI Boster CAT.3 and CAT4 in serial on AWAX 2NO+1NF Stainless Steel with 4Kg holding force with 12M Cable Call for Prices
