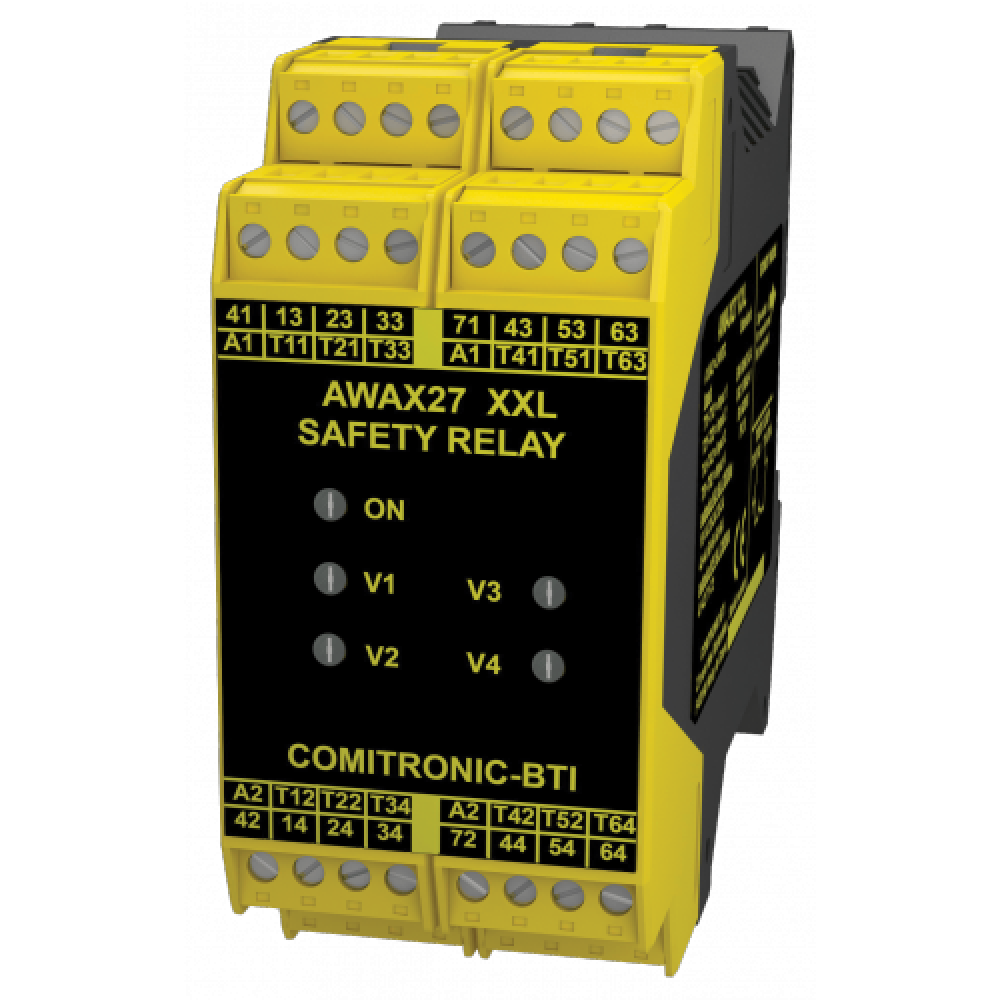

Comitronic-BTI AWAX 27XXL Emergency Stop Safety Relay

Features

  • Reaches the highest safety level: PLe Cat.4
  • Monitors two independant areas
  • Control of switches with Acotom process
  • Control of mechanical safety systems (grip switch, foot switch...)
  • Dip switch at the back to choose reset mode (automatic/manual)
  • DLC electrical protection system
  • Polyvalent power supply 24Vac/dc
  • 45 mm housing
  • Can power supply up to 5 BTI switches without individual power supply
  • Monitors the safety of up to 30 switches connected in serie

Details

The AWAX27XXL, category 4 has been designed to control mechanical switches, switches using the process ACOTOM (BTI's trademark), or the emergency push buttons with 2 NC lines at least, located in 2 distinct zones. This module has a common supply voltage and 8 safety lines (2 x 3 NO + 2 x 1 NC), each line has a switching capacity of 8A/250VAC. The safety relay can be used in applications up to Kat4 PLe acc. EN ISO 13849 or Sil3 acc. EN 62061. It is recommended to test the system at least once a year. Technical datas : Power supply: 24V AC/DC; -15% / +10% Current consumption: < 4 W (DC); < 10 VA (AC) Safety outputs: 2 x 3 NO: 8A/250V AC Auxiliary output: 2 x 1 NC Switching power : > 50 mW Electrical protection : DLC : Electronic current-limiting circuit-breaker Temperature operation: -20°C to +55°C Protection class: IP20 Resistance to vibration: < 20 ms B10d : AC1: 860000, AC15: 300000, DC13: 300000 Housing: Polycarbonate, yellow Connection: Plug-in terminals Dimensions (W x H x D) : 45 x 100 x 111 mm Weight : 336 g
Product Name / Options Price (ex VAT)
AWAX 27XXL - Emergency Stop Relay Call for Prices
