Contactless coded electronic sensor.
Total safety management with an AWAX controller.
Low cost solution for multi-access applications.
Level of performance with AWAX controller: up to PL = e
Safety category : up to 4 with an AWAX controller.

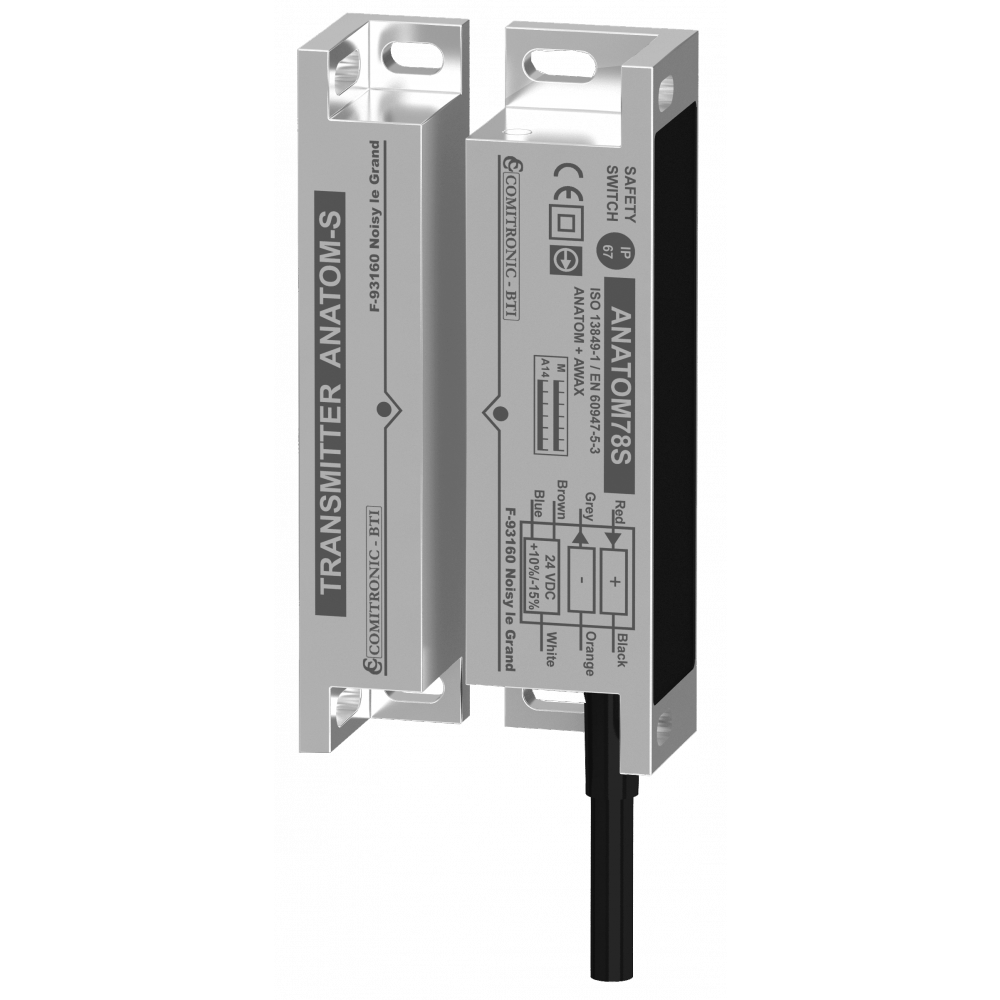

The ANATOM is an electronic coded switch using our ACOTOM2 process. When it is connected to an AWAX safety module, it detects the opening of guarddoors on dangerous machines. Housed in two polycarbonate housings (transmitter and receiver), it provides two independent and static NO lines, free of potential and isolated from the decoding system for more safety. Moreover, it provides a PNP contact, which indicates thTime before dangerous failure: MTTFd = 334 years
Max. activation distance: 10mm, 2mm hysteresis
Safety contacts/diagnostics : 2 x NO 0.8A max / redundant 24V / 1xcontact PNP 250mA
Detection encoding : mono-code inviolable
Indicator : LED indicates code recognition
Reset: automatic
Attachment : 4 tamper-proof M4 screws (optional ref: BH4)
Mounting position : 78S-98S, 78SMKT, 78SMKT130 versions : 2 (double wall brackets)
Mounting position : 78SM12 and 98SM12 versions: 1
Material : 78S-98S, 78SMKT, 78SMKT130:
PA6 or INOX316L (ANATOM78S-OX or ANATOM78S-OX-MKT)
Matierial for 78SM12, 78SESM12 and 98SM12 : polycarbonate (PC)
Electrical Connection : 3, 6, 12m cable (78S/98S) or 50cm cord with M12 connector (ref. + MKT) or 130cm cord with M12 connector
(ref. + MKT130) or M12 metal (ref. + M12)e state ot the switch
