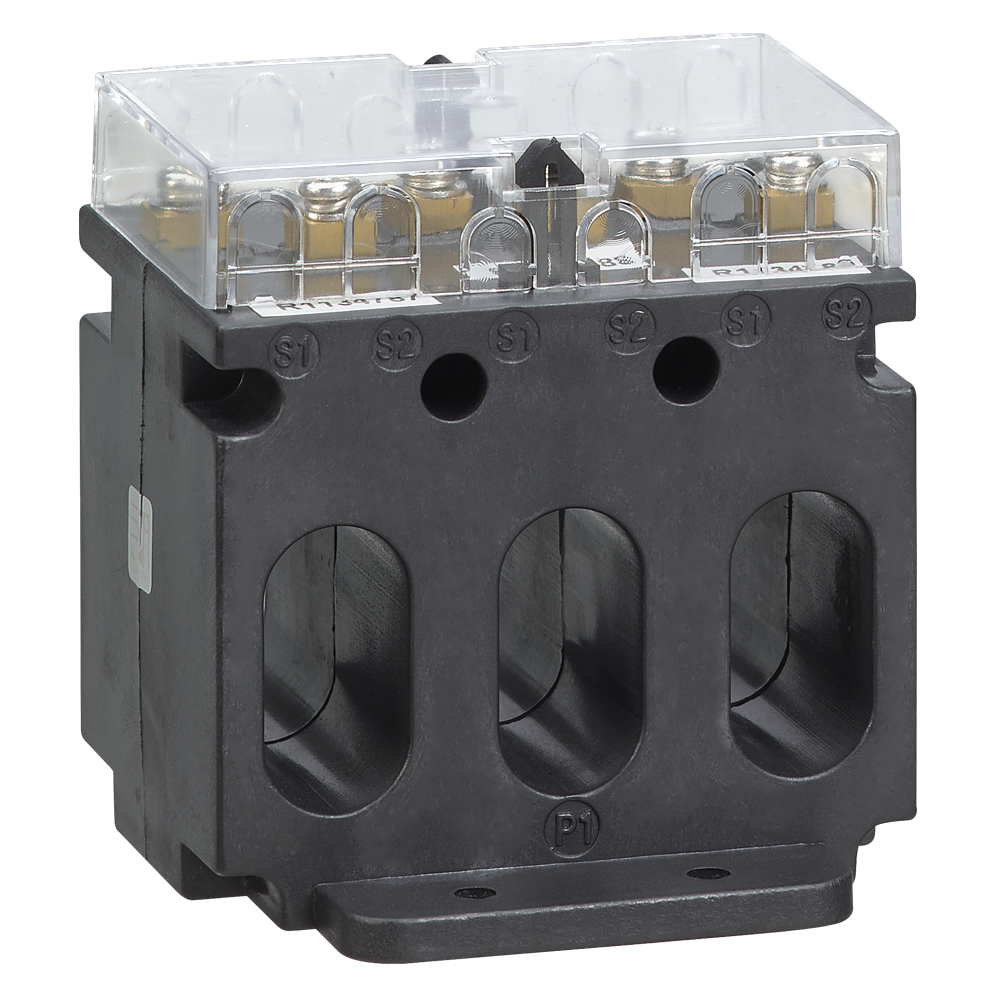

Rayleigh Instrument TAS240 Three Phase Measuring Moulded Case Current Transformers

Features

  • Three Phase Measuring Current Transformers
  • Primary Current Range: 60 to 200A
  • Secondary Current Ratios: 5A
  • Cable aperture : 3 @ 15.5 x 30mm with a 25mm Hole Aperture Centre
  • Class Accuracy Cl0.5, Cl1 and Cl3

Details

Three phase moulded case current transformers suitable for primary ranges from 60-200A with 5A secondary. Supplied with terminal cover and integral foot mount.

Application
The products have an overall width of 75mm allowing installation of 75mm allowing installation directly on top of moulded case circuit breakers. They can also be used independently in 3 phase applications.



Technical Specification
  • Reference Standards : EN60044–1
  • Temperature Range : Working –25 to +50˚C, relative humidity 85%
  • Frequency : 47…63Hz (400Hz on request)
  • System Voltage : 720V max.
  • Test Voltage : 3KV for 1 minute
  • Housing Material Self extinguishing Nylon IEC185 classification VO according to UL-94
  • Secondary terminals M4 Screws
  • Sealable terminal cover included
  • Weight : 500g

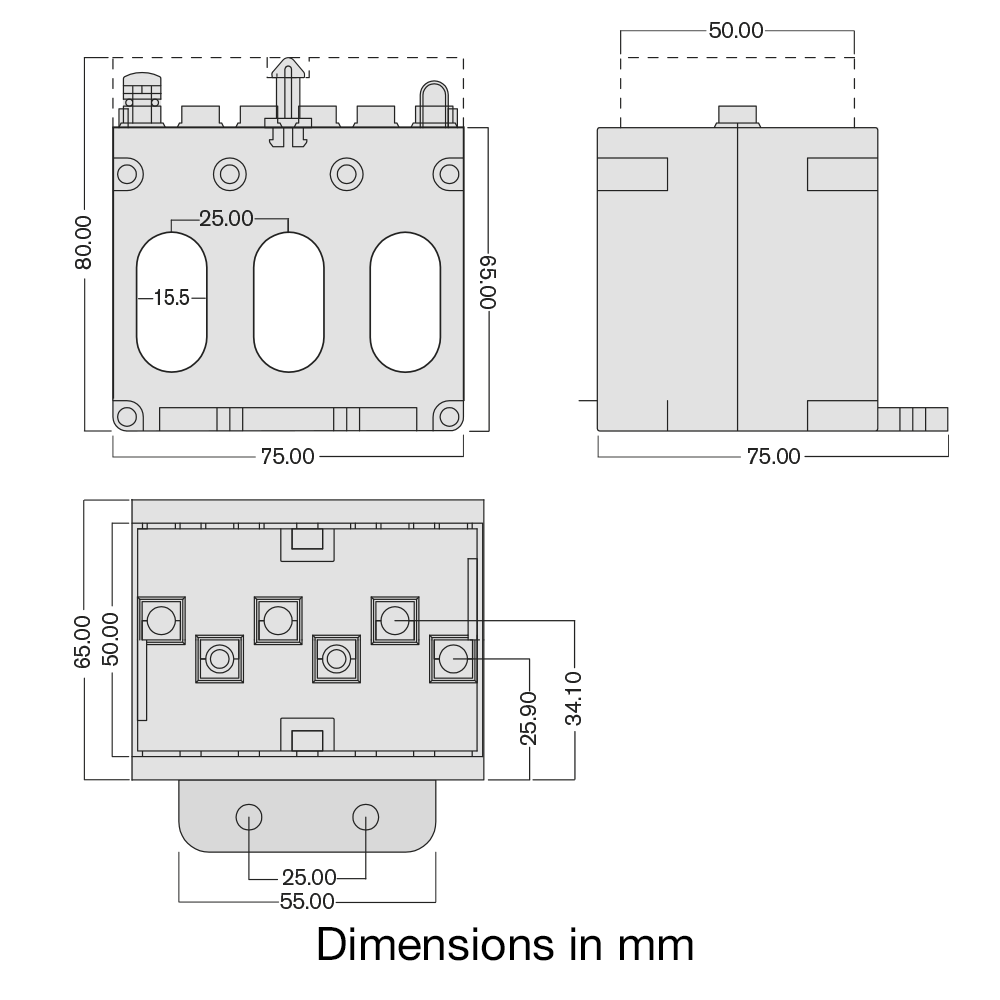

    • Dimensions

Downloads

Product Name / Options Price (ex VAT)
TAS240 - Three Phase Current Transformer - 60 / 5A Call for Prices

TAS240 - Three Phase Current Transformer - 100 / 5A Call for Prices

TAS240 - Three Phase Current Transformer - 125 / 5A Call for Prices

TAS240 - Three Phase Current Transformer - 150 / 5A Call for Prices

TAS240 - Three Phase Current Transformer - 160 / 5A Call for Prices

TAS240 - Three Phase Current Transformer - 200 / 5A Call for Prices
